4. Install the new drive using the procedure described in this document.
5. Replace the drive caddy assembly.
6. Replace the cover plate.
7. Replace the skin cover.
Removing and Replacing the Skin Cover (Desktop
Models Only)
The skin cover is held in place by two screws on each side of the base
module (Figure 2).

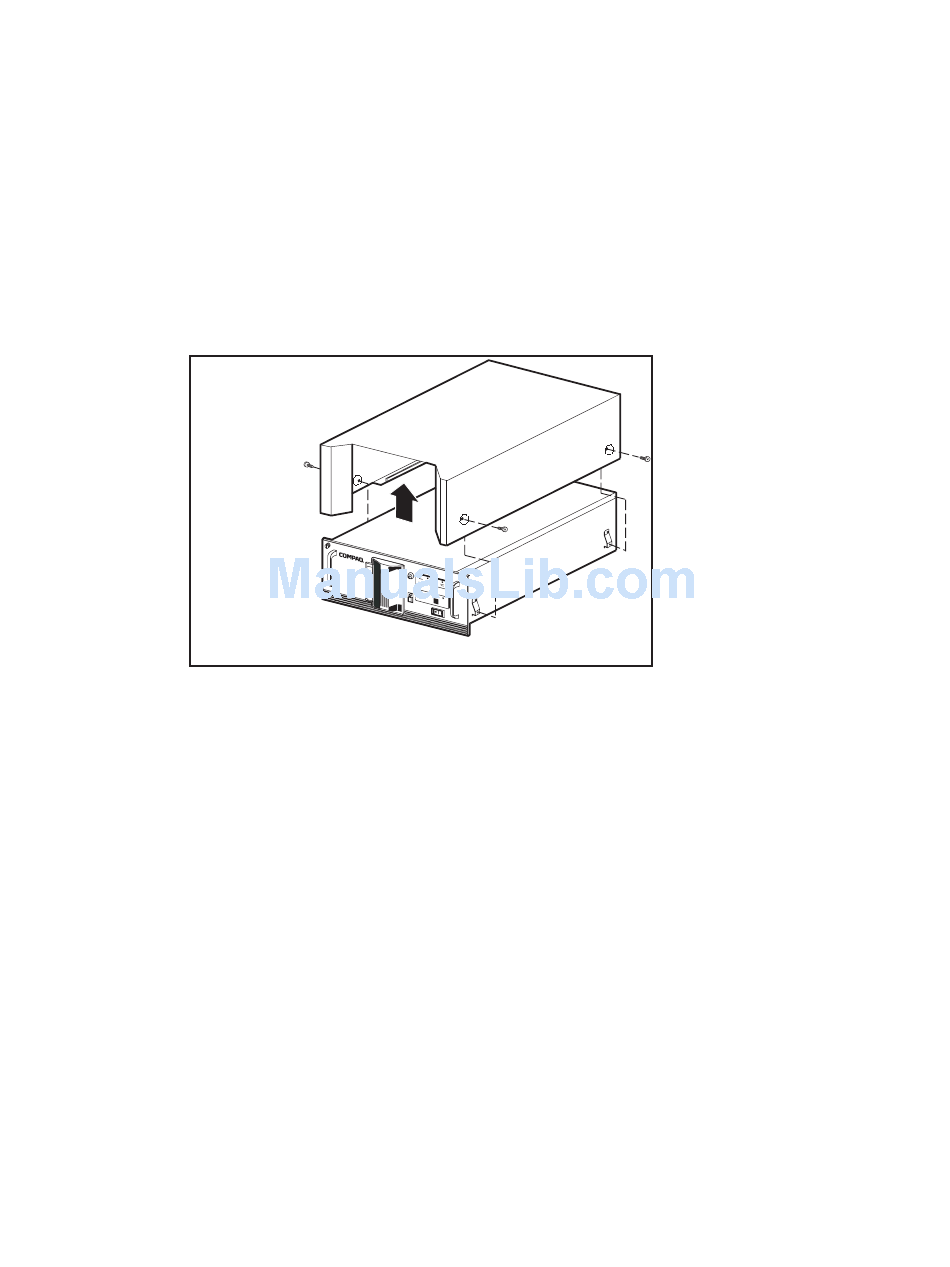

Figure 2. Removing the Skin Cover
Removing
Do these steps to remove the skin cover from the base module.
1. Remove the two screws on each side of the base module.
2. Grasp the cover by the sides at the bottom edge and pull outwards
slightly while lifting the cover straight up and off the chassis.
Replacing
Do these steps to replace the skin cover on the base module.
Adding a Second Tape Drive 3
SHR-1433
