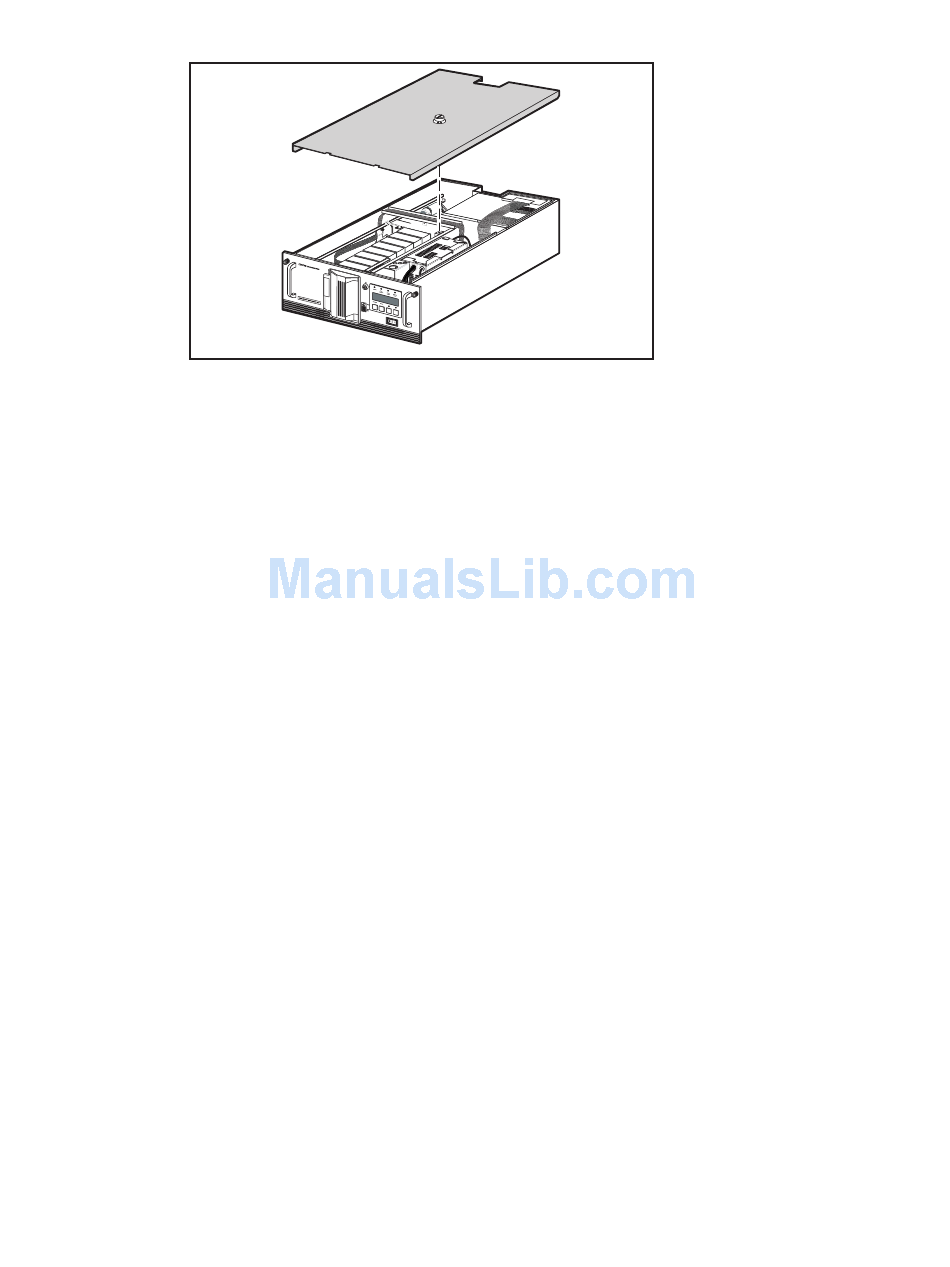

Removing And Replacing The Drive Caddy Assembly; Figure 3. Removing The Cover Plate - Compaq SW TL881 DLT Mini-Lib/1 Manual

Compaq tl881 minilibrary drive upgrade procedure (may 1999)

Hide thumbs Also See for SW TL881 DLT Mini-Lib/1:

Table of Contents

Removing and Replacing the Drive Caddy Assembly

The drive caddy assembly is an enclosure that holds one or two DLT drives

and the interconnecting cables. The assembly includes the SCSI interface

connectors and cables for the base module, the power cables for the drives,

and communication cables from the drives to the controller PWB.

Removing

Do these steps to remove the drive caddy assembly from the base module.

1. Remove the cover plate as described in Removing and Replacing the

Cover Plate.

2. Disconnect the SCSI cable connectors (1) ( Figure 4) from the

controller SCSI extension cable.

Adding a Second Tape Drive 5

SHR-1203
