4 Compaq StorageWorks TL881/TL891 Family MiniLibrary System Drive Upgrade Procedure
Removing and Replacing the Skin Cover (Desktop
Models Only)
The skin cover is held in place by two screws on each side of the Base Module
(Figure 2).

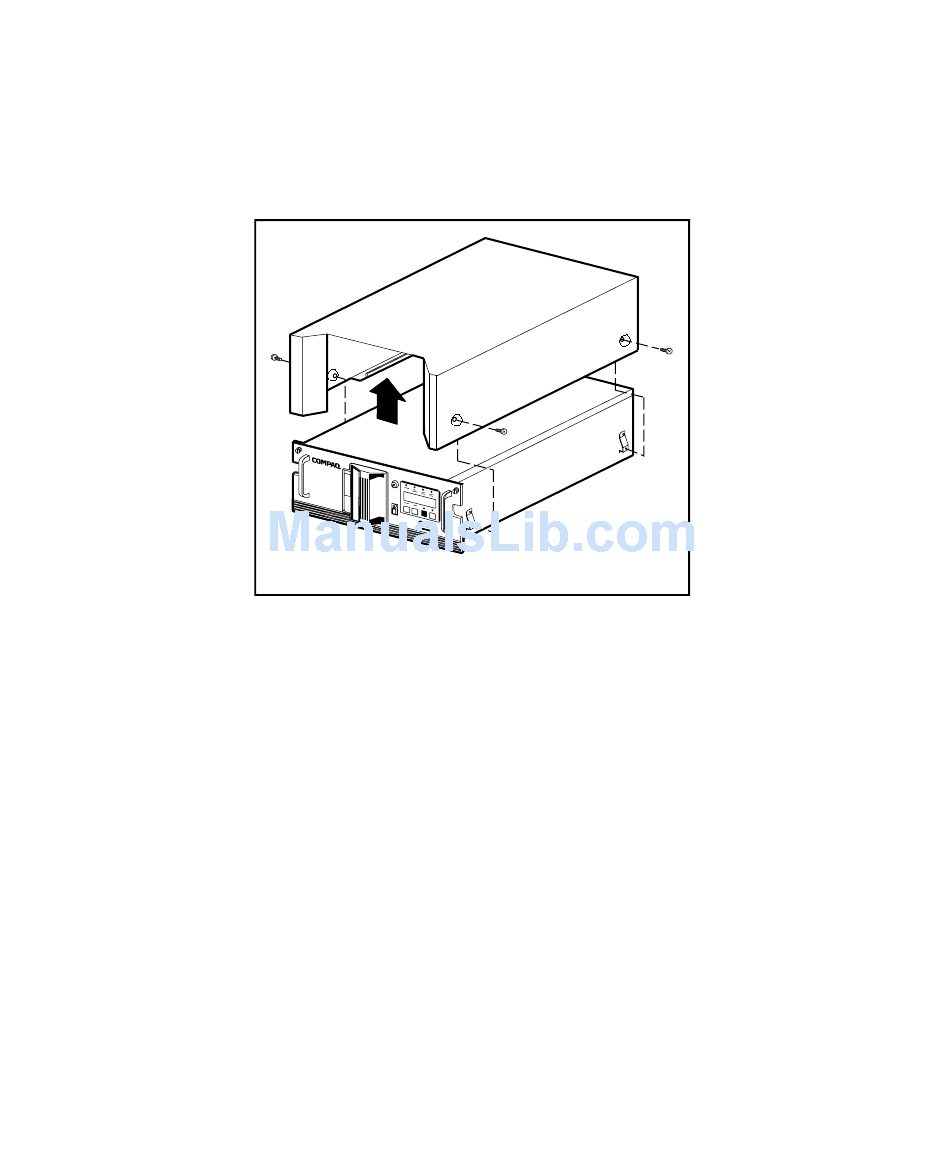

Figure 2. Removing the skin cover
Removing
To remove the skin cover from the Base Module:
1. Remove the two screws on each side of the Base Module.
2. Grasp the cover at the lower edge of each side and then lift it straight up.
There are two notches on each side of the cover to help clear the
mounting brackets.
SHR-1720
