HP Surestore Tape Library Model 10/180 Installation Notes page 9

Lto tape drive installation instructions

Hide thumbs Also See for Surestore Tape Library Model 10/180:

4. Insert the two 68-pin, Y-cable connectors into the bulkhead slots adjacent to the drive

(make sure that the jack is at the bottom).

Note: It is easier to insert the connector if you tilt it away from the bulkhead.

5. Grasp the connector and thread the second jack screw into the top connector.

6. Make sure the connector aligns inside its slot, and tighten both jack screws with a 3/16-

inch nut driver. Do not overtighten.

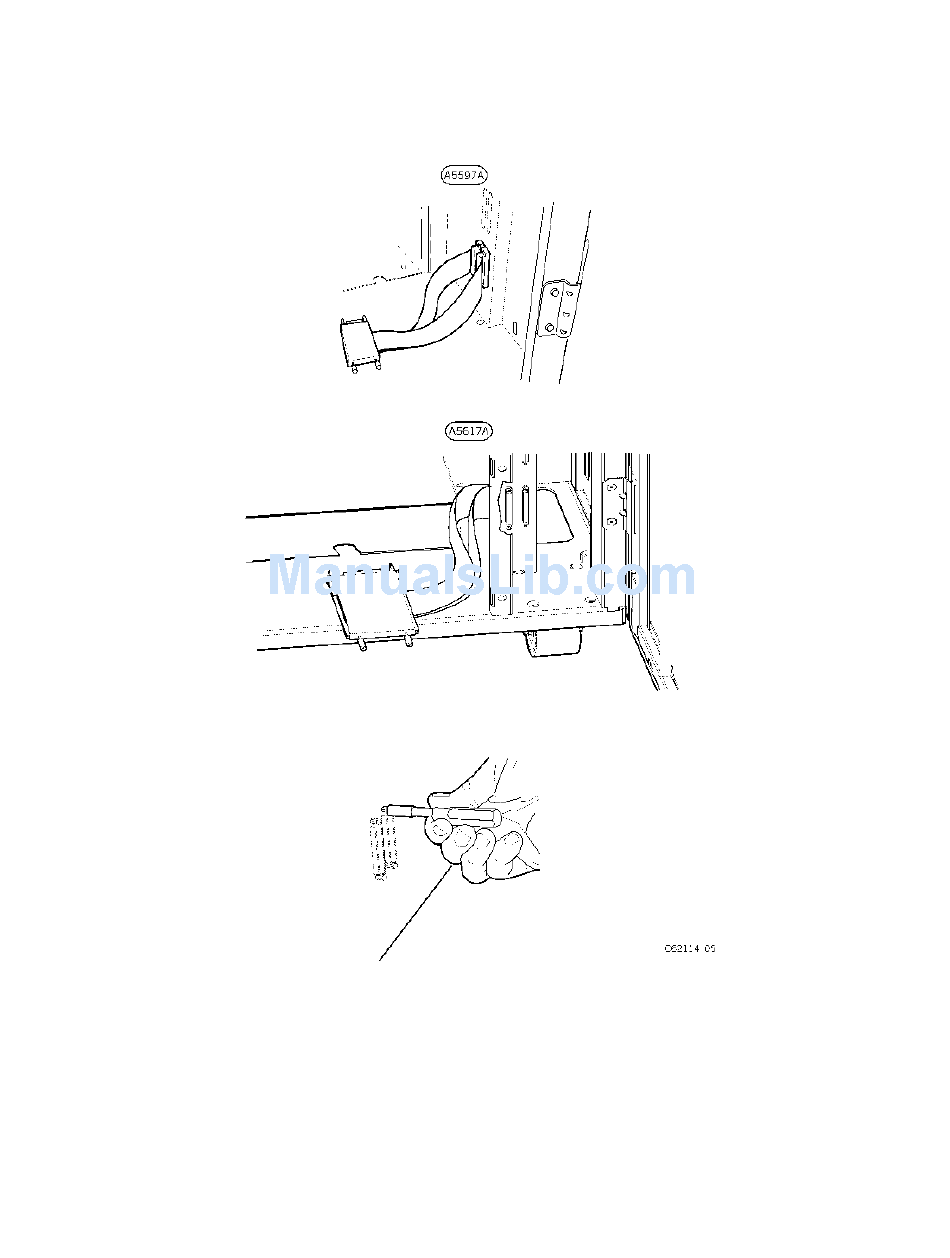

Figure 4. Tape Drive Cable Connectors

101397
