Your APP
31x
APP
31x
Print technology:
High resolution near-edge thermal transfer
Print mode:
Intermittent
Print head:
300 dpi
Print speed:
50 – 600 mm/sec
Print area:
APP 312: 53 x 106 mm (W x L)
Materials:
PE/PP/PA/PET/Paper/Cellophane etc.
Foil length:
Upto 450 mtr
Foil width:
APP 312: 25 – 55 mm (W x L)
Foil-save:
Minimize standard gap between prints
Printer control:
By APP Controller
Print data:
True type fonts, logo's barcodes, graphics, real-time-clock
Alarm output:
Low foil warning, foil end general
Weight:
APP 312: 7.5 kg
Compressed air:
10 ltr/min at max. 6 bar
Operating Temperature:
5° - 45° C
Modul:
Right hand version
Electrical:
115/230 VAC, 50/60 Hz, 300 VA
APP
325
Print technology:
High resolution near-edge thermal transfer
Print mode:
Continuous
Print head:
300 dpi
Print speed:
50 – 800 mm/sec
Print area:
128 x 2400 mm (W x L)
Materials:
PE/PP/PA/PET/Paper/Cellophane etc.
Foil length:
Upto 450 mtr
Foil width:
25 – 130 mm
Foil-save:
Fading and retraction system
Printer control:
By APP Controller
Print data:
True type fonts, logo's barcodes, graphics, real-time-clock
Alarm output:
Low foil warning, foil end general
Weight:
8.9 kg
Compressed air:
10 ltr/min at max. 6 bar
Operating Temperature:
5° - 45° C
Modul:
Left or right hand version
Electrical:
115/230 VAC, 50/60 Hz, 300 VA
You're never far from an
Benelux
Avery Dennison representative:
Denmark / Scandinavia
France
Avery Dennison Deutschland GmbH
Ohmstraße 3, D-85386 Eching
Tel.: +49 (0) 81 65/925 - 299
Fax: +49 (0) 81 65/6 43 60
printers@eu.averydennison.com
www.machines.averydennison.com
/
325
at one glance
/
APP 315: 128 x 106 mm (W x L)
/
APP 315: 25 – 130 mm (W x L)
/
APP 315: 8.9 kg
Italy
USA
Turkey
PR China / Hong Kong
APP
31x
The direct ones
Print-on-Packaging solution
/
325

Advertisement

loading
Need help?

Need help?

Do you have a question about the APP 31x and is the answer not in the manual?

Questions and answers

Summary of Contents for Avery Dennison APP 31x

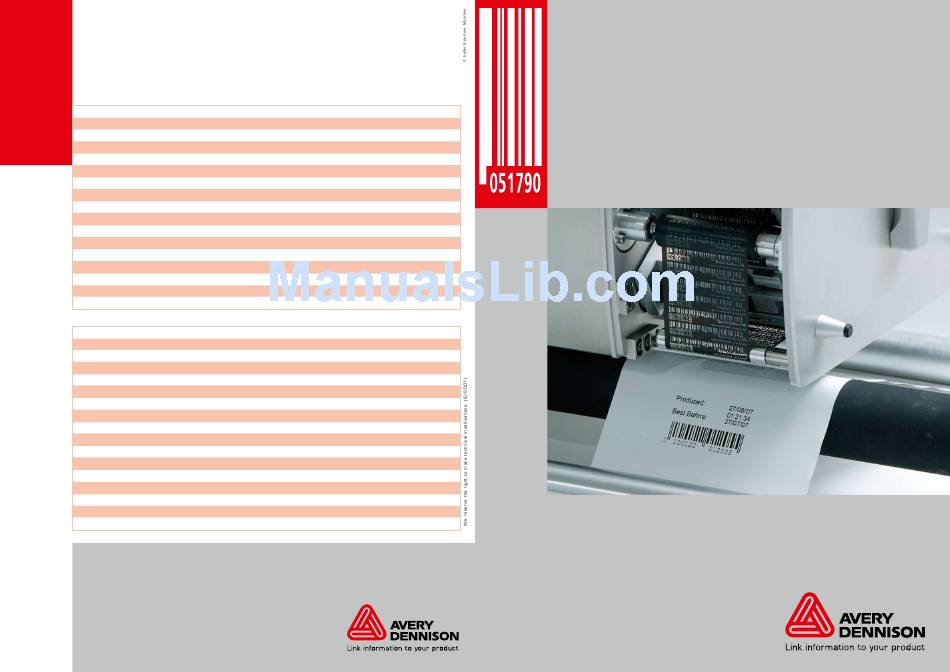

  • Page 1 You’re never far from an Benelux Italy Avery Dennison representative: Denmark / Scandinavia Turkey PR China / Hong Kong France Avery Dennison Deutschland GmbH Ohmstraße 3, D-85386 Eching Tel.: +49 (0) 81 65/925 - 299 Fax: +49 (0) 81 65/6 43 60 printers@eu.averydennison.com www.machines.averydennison.com...
  • Page 2 (APP 312) and 128 x 106 mm (APP 315), degree of quality. Here’s your solution. the APP 31x family covers the demand for fle- work-connectivity. Easy handling of settings and parameters ✓...
  • Page 3 No direct drive system low number of wearing enables faster printing parts makes the due to less resistance. APP 31x and 325 fit for the industrial environment. Top quality print User-friendly print- results design...
  • Page 4 APP Controller or by use of easy mechanical integration. the EasyDesign software on a PC. Typical applications The APP 31x / 325 are designed for industries where information is printed directly onto packaging material. Here are some examples:...
