Lennox ESTATE EST-36 Installation Instructions

INSTRUCTIONS FOR INSTALLING REFRACTORY BRICK PANELS
IN ESTATE SERIES WOOD-BURNING FIREPLACES (MODELS EST-36, EST-42, EST-50)
™
Left Rear

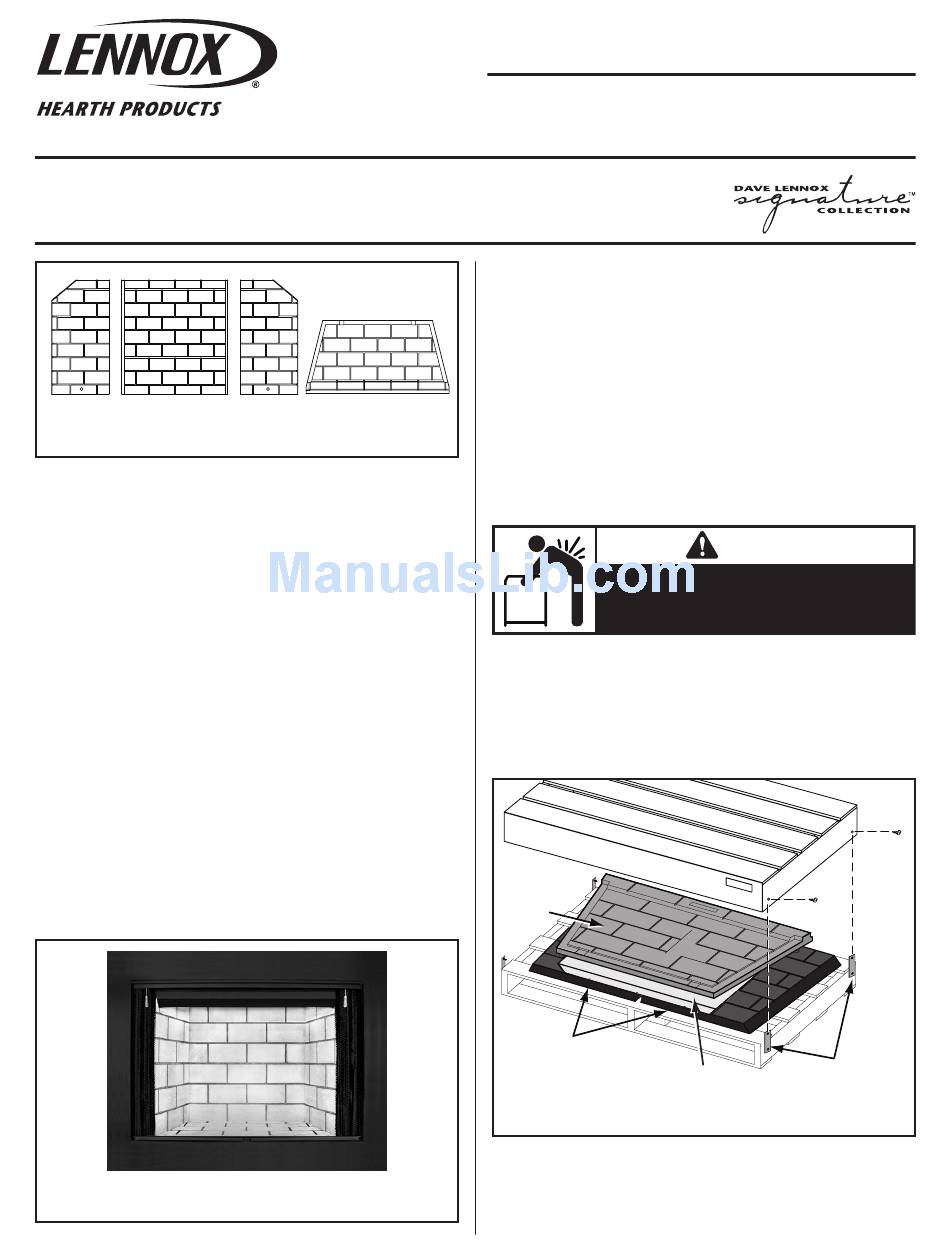

Figure 1: Refractory Brick Panels (Traditional Pattern)
KIT CONTENTS
• (1) ea. Left Side Refractory Panel
• (1) ea. Right Side Refractory Panel
• (1) ea. Back Refractory Panel
• (1) ea. Bottom Refractory Panel
The following items, required for this installation, are packaged
in the fireplace literature kit bag:
• (2) ea. Grate Brackets
• (2) ea. Refractory Brackets (EST-36 and EST-42 only)
REQUIRED TOOLS
• Box Cutters or Scissors
• 1/4" Nut Driver
• Phillips Screwdriver
• Large Flathead Screwdriver
GENERAL INFORMATION
This kit contains four refractory brick panels (two sides, one back,
one bottom) and instructions for their installation in Lennox Hearth
Products Estate™ Series wood-burning fireplaces, models EST-36,
EST-42, and EST-50.
Estate™ Series Model EST-42 with Installed Refractory Brick Panels
(Traditional Pattern)
Right Bottom
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
P/N 506019-64, Rev. NC
09/2010
INSTALLATION INSTRUCTIONS
INSTALLER NOTICE:
• READ ALL THE STEPS BEFORE STARTING THE INSTALLATION.
• THESE INSTRUCTIONS MUST BE LEFT WITH THE APPLIANCE.
• ALL WARNINGS, PRECAUTIONS, AND INSTRUCTIONS IN THE
INSTALLATION INSTRUCTIONS AND CARE AND OPERATION
MANUALS PROVIDED WITH THE APPLIANCE ALSO APPLY TO
THESE INSTRUCTIONS.
• IF YOU ENCOUNTER ANY PROBLEMS, NEED CLARIFICATION OF
THESE INSTRUCTIONS, OR ARE NOT QUALIFIED TO PROPERLY
INSTALL THIS KIT, CONTACT YOUR LOCAL DISTRIBUTOR OR
DEALER.
SINGLE-PERSON LIFT COULD CAUSE INJURY.
USE ASSISTANCE WHEN MOVING OR LIFTING.
Step 1. Uncrate refractory panels.
1.1. See Figure 2, below. Remove screws from metal pallet brackets
on outside of pallet assembly.
1.2. Remove top part of pallet assembly.
Bottom
Panel
Left and Right
Side Panels
Figure 2
HEARTH PRODUCTS
KITS AND ACCESSORIES
REFRACTORY BRICK PANELS
WARNING
LIFTING HAZARD.
Pallet
Rear
Brackets
Panel
1
