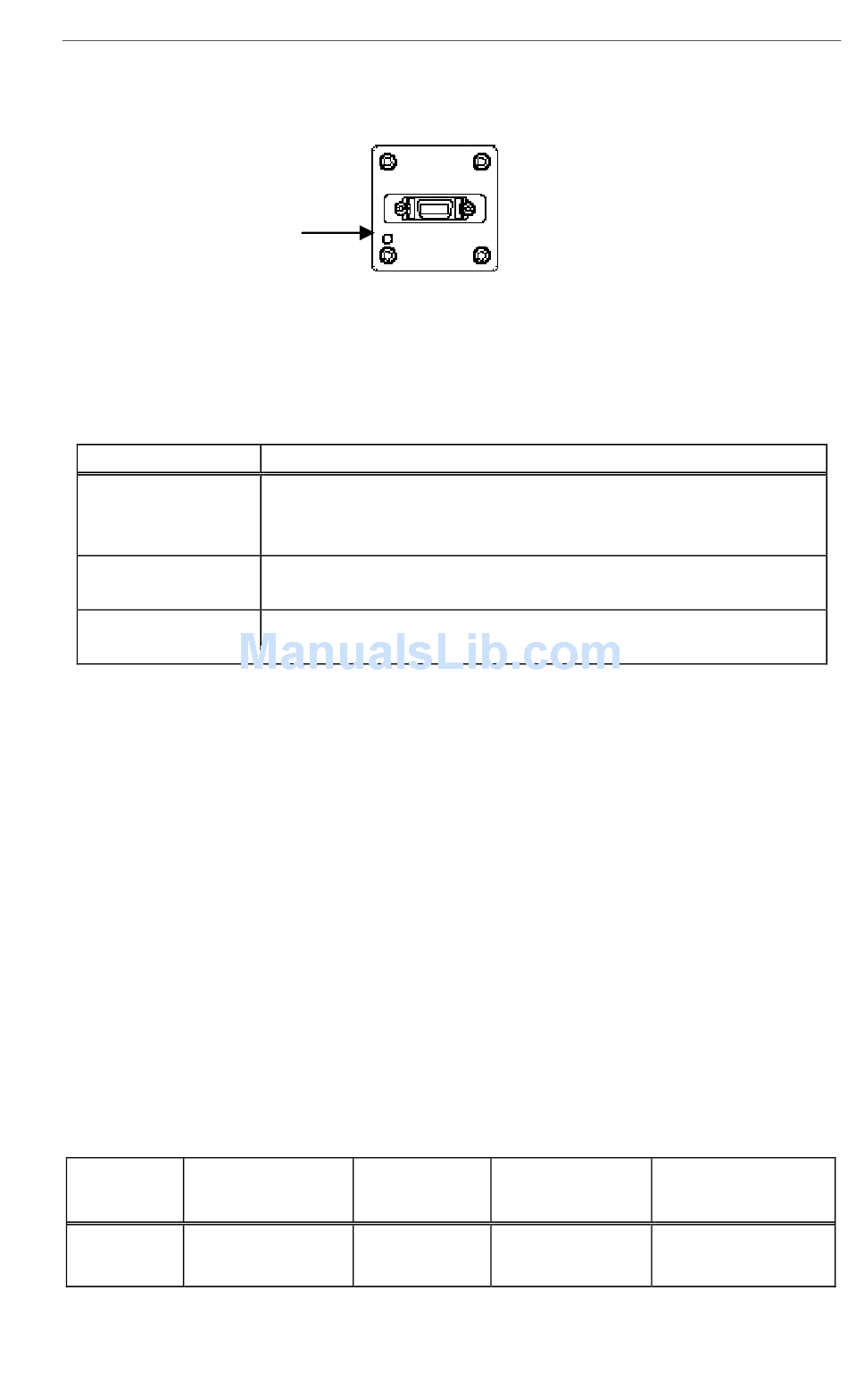

LED Indicator
Indicator
The LED Indicator on the end of the camera indicates the camera's
communications and power status.
Indicator Color
Red
Green
Blinking Yellow
Setup and calibration
Use the Impact programs to setup and calibrate the camera with a PPT
vision device. (Refer to the Impact Software Reference Guide.)
Calibration insures that measurements shown in Impact software tools
accurately indicate the inspected object's measurements. A camera
requires calibration when it is first connected to the vision device, when the
camera-to-subject distance changes, and when the lens is changed. A
calibration target with 0.5, 1.0, and 2.0 mm dot pitches is available from
PPT (Part # 381-1177). Contact PPT for printed versions of targets with
larger pitches.
Light Sensitivity
The following table shows the camera's relative sensitivity to light.
Camera
Imager
Model
Sony
5200
ICX 424AL
LED
Camera Rear View
Status
The camera is receiving power but cannot detect the
DSL Link carrier. Indicates a damaged cable or bad
connection.
The camera is receiving power and detecting the
DSL Link carrier.
The camera is acquiring images (blinking may not be
visible during fast image acquisition)
Pixel Area
55 sq um
C-Series Camera Users Guide
CCD
Technology
HAD
Page 7
Relative
2
Sensitivity
1
