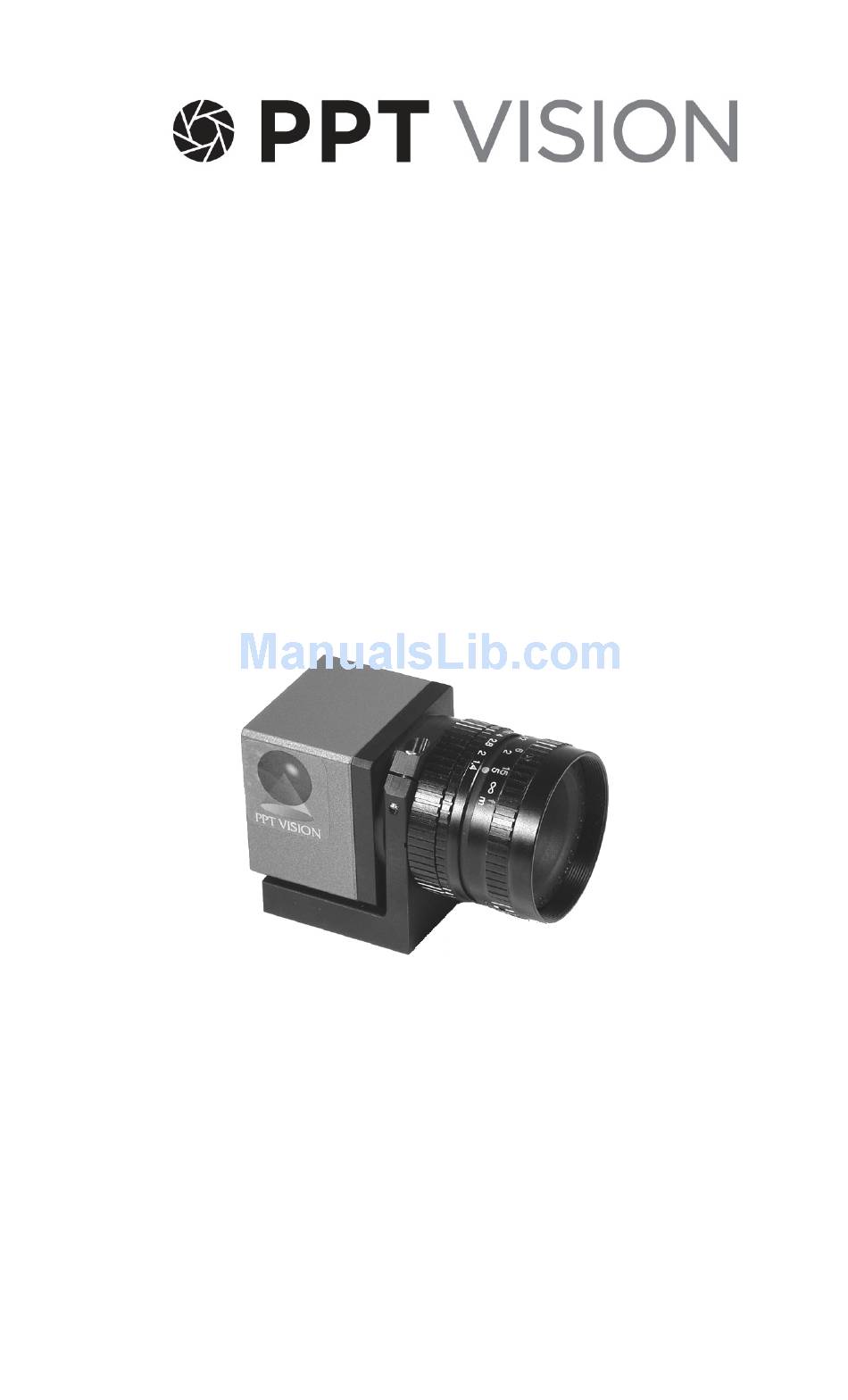

Page 1: Users Guide

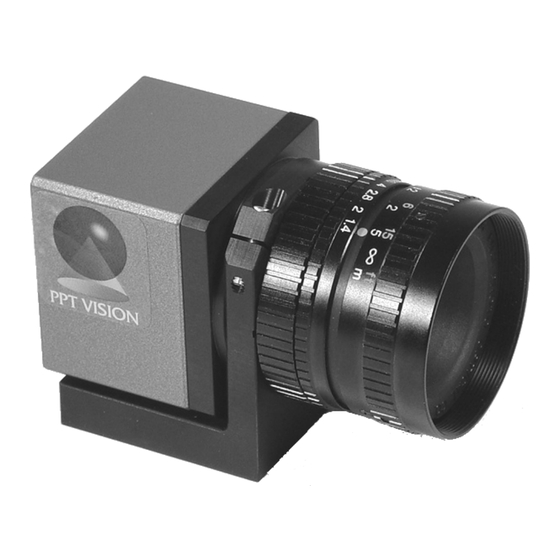

C-Series Cameras Users Guide PPT Publication #843-0099 Rev K... -
Page 2: Technical Support
Under the copyright laws, this publication may not be copied, photocopied, reproduced, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of PPT Vision. Telephone: (952) 996-9500... -
Page 3: Table Of Contents
Camera Link cameras manufactured by other companies. All the cameras in this document can be used with PPT’s C-Series machine vision micro- system. PPT Vision does not support the use of these cameras in any manner other than described herein. Table of Contents Safety Precautions..............2... -
Page 4: Safety Precautions
Do not attempt to disassemble the camera. Do not remove screws or attachments. There are no user-serviceable parts inside. Refer servicing to PPT Vision or your local distributor. All PPT digital cameras connect to the vision device using a standard Digital Serial Link (DSL) cable (Part # 431-0452-xx). Do not attempt to use any other cable. -
Page 5: General Information
Impact software and are maintained in the camera’s memory so there are no physical switches on the cameras. PPT Vision cameras connect to the vision device with a standard DSL cable (Part # 431-0452-xx). All cameras can be used with PPT’s C-Series machine vision micro- systems. -
Page 6: Mounting A Camera
PPT Vision Camera Dimensions NOTE: The DSL-5000, DSL-5100, and DSL-7000 cameras in this document have an older body style. Refer to the Digital Camera Users Guide (843- 0085) for mounting dimensions. The camera with a mounting block, but without a lens, weighs 0.44 pounds (200 grams). -
Page 7: Ppt-5700 Remote Head Dimensions
C-Series Camera Users Guide Remove the lens from the camera body. Turn the mounting screw counter-clockwise to loosen the mounting ring. If desired, insert a fastener through the countersunk hole in the center of the bracket. Rotate the camera body so the image will be in the desired orientation when the camera is mounted. -
Page 8: Connecting A Camera
PPT Vision Route the connecting cable away from devices that emit large amounts of electromagnetic energy, such as electric motors or solenoids. They may cause interference with image transmission. Use a lens locking ring (Part # 381-1247) to secure a micro-lens on the remote head. -
Page 9: Led Indicator
C-Series Camera Users Guide LED Indicator Indicator Camera Rear View The LED Indicator on the end of the camera indicates the camera's communications and power status. Indicator Color Status The camera is receiving power but cannot detect the DSL Link carrier. Indicates a damaged cable or bad connection. -
Page 10: Dsl-5000
PPT Vision Camera Relative Imager Pixel Area Model Technology Sensitivity Sony 7200 21 sq um 21/55 = 0.38 ICX204AL Sony Super 9200 19 sq um 2 * 19/55 = 0.7 ECX274AL HAD™ (2x) The 7200 camera has 2.5 times as many pixels as the 5200, so each pixel is smaller and gathers less light. - Page 11 C-Series Camera Users Guide DSL-5000 Specifications PPT Part # 661-0267 Pick-up Device: Interline Transfer type CCD with 640 (H) x 480 (V) pixels Image Size: ⅓” (8.47 mm) diagonal – 4.74 (H) x 3.55 (V) Capture Rate, 38 images per second full-resolution; 71 Maximum: images per second at ½...
-
Page 12: Dsl-5100
PPT Vision DSL-5100 Note: Reference only. This camera has an older style body. Mounting dimensions are in the Digital Camera Users Guide (843-0085). This camera captures a 640 by 480 pixel size image with square pixels. It can partially scan the image horizontally. - Page 13 C-Series Camera Users Guide DSL-5100 Specifications Shutter Open Time: 32 to 127,795 microseconds Lens Mount: C mount Cabling: DSL cable provides power, controls, and video. Maximum cable length is 25 meters Operating Temperature: -5°+45° C (+23°∼114° F) Environment: Humidity: 20~80% (non-condensed) Power: 12 VDC provided by link (3 Watts) Weight...
-
Page 14: Ppt-5200
PPT Vision PPT-5200 This camera captures a 640 by 480 pixel size image with square pixels. It can partially scan the image vertically and horizontally. PPT-5200 Spectral Response (excludes lens and light source characteristics) PPT-5200 Specifications Part # 661-0337 Pick-up Device... -
Page 15: Ppt-5300
C-Series Camera Users Guide PPT-5200 Specifications Environment Temperature: -5°+45° C (+23°∼114° F) Humidity: 20~80% (non-condensed) Power 12 VDC provided by link (3 Watts) Weight 0.31 pounds (140 grams); 0.44 pounds (200 grams) with mounting bracket Software Impact Software V3.0 or greater PPT-5300 This camera captures a 640 by 480 pixel size color image with square pixels. - Page 16 PPT Vision PPT-5300 Specifications Pixel Size 7.4 x 7.4 micrometers Gain 50% to 200% Shutter Open 31 to 127,795 microseconds Lens Mount C mount Cabling DSL cable provides power, controls, and video. Maximum length is 25 meters Environment Temperature: -5°+45° C (+23°∼114° F)
-
Page 17: Ppt-5700
C-Series Camera Users Guide PPT-5700 Spectral Response (excludes lens and light source characteristics) PPT-5700 Specifications Part # 661-0350 Pick-up Device Interline Transfer type CCD with 640 (H) x 480 (V) pixel image Image Size Type ⅓ (5.92 mm diag) – 4.74 (H) x 3.55 (V) mm Capture Rate 64 fps full-resolution;... -
Page 18: Ppt-6200
PPT Vision PPT-5700 Specifications Power 12 VDC provided by link (3 Watts) Weight 0.31 pounds (140 grams); 0.44 pounds (200 grams) with mounting bracket Software version Impact Software V3.0 or greater PPT-6200 This camera captures a 640 by 480 pixel size image with square pixels. It can partially scan the image vertically and horizontally. - Page 19 C-Series Camera Users Guide PPT-6200 Specifications Gain 50% to 400% Shutter Open 31 to 127,795 microseconds Lens Mount C mount Cabling DSL cable provides power, controls, and video. Maximum length is 25 meters Operating Temperature: -5°+45° C (+23°∼114° F) Environment Humidity: 20~80% (non-condensed) Power 12 VDC provided by link (3 Watts)
-
Page 20: Dsl-7000
PPT Vision DSL-7000 Spectral Response (excludes lens and light source characteristics) DSL-7000 Specifications PPT Part # 661-0310 Pick-up Device : Interline Transfer type CCD with 1024 (H) x 768 (V) pixels. Image Size : 1/3” (6 mm) diagonal – 5.8 mm (H) x 4.92 mm Capture Rate, Max: 16.5 full-resolution images per second;... - Page 21 C-Series Camera Users Guide Power: 12 VDC provided by link (6 Watts) Weight 0.6 pounds (0.28 kg) Software version Impact Software V3.0 or greater PPT-7200 This camera captures a 1024 by 768 pixel size image with square pixels. It can partially scan the image horizontally. PPT-7200 Spectral Response (excludes lens and light source characteristics) PPT-7200 Specifications Part #...
-
Page 22: Ppt-7300
PPT Vision PPT-7200 Specifications Shutter Open 77 to 195,580 microseconds Lens Mount C mount Cabling DSL cable provides power, controls, and video. Maximum length is 25 meters Operating Temperature: -5°+45° C (+23°∼114° F) Environment Humidity: 20~80% (non-condensed) Power 12 VDC provided by link (3 Watts) Weight 0.31 pounds (140 grams);... - Page 23 C-Series Camera Users Guide PPT-7300 Specifications Pick-up Device Interline Transfer type CCD with 1024 (H) x 768 (V) pixel image. Image Size Type ⅓ (5.92 mm diag) – 4.76 mm (H) x 3.57 mm Capture Rate 16.5 full-resolution fps; higher with partial scan Optical Fill Pixel Size 4.65 x 4.65 micrometers...
-
Page 24: Ppt-8200
PPT Vision PPT-8200 Spectral Response (excludes lens and light source characteristics) PPT-8200 Specifications Part # 661-0339 Pick-up Device CMOS active pixel sensor with 1280 (H) x 1024 (V) pixel image. Image Size Type ⅔ (11 mm diag) – 8.6 mm (H) x 6.9 mm (V) Capture Rate 22.5 full-resolution fps;... -
Page 25: Ppt-9200
C-Series Camera Users Guide PPT-8200 Specifications Environment Humidity: 20~80% (non-condensed) Power 12 VDC provided by link (2 Watts) Weight 0.31 pounds (140 grams); 0.44 pounds (200 grams) with mounting bracket Software version Impact Software V3.0 or greater PPT-9200 This camera captures a 1600 by 1200 pixel size image with square pixels. The image can be fully windowed. -
Page 26: Ppt-9300
PPT Vision PPT-9200 Specifications Pixel Size 4.4 x .4.4 micrometers Gain 50% to 400% Shutter Open 77 to 161357 microseconds Lens Mount C mount Cabling DSL cable provides power, controls, and video. Maximum length is 25 meters Operating Temperature: 0°+45° C (+32°∼114° F) -
Page 27: Camera Link Cameras
C-Series Camera Users Guide PPT-9300 Specifications Pick-up Device CCD active pixel sensor with 1600 (H) x 1200 (V) pixel image. Image Size Type 1/1.8 (8.8 mm diag) – 7.04 mm (H) x 5.28 mm (V) Capture Rate 10.6 full-resolution fps; higher with partial scan Optical Fill Pixel Size 4.4 x .4.4 micrometers... - Page 28 11.5 Vistek MFCP NOTES: Camera specifications are provided by camera manufacturers. PPT Vision is not responsible for changes, errors, or omissions. Refer to manufacturer’s camera documentation for current specifications. Only Camera Link cameras listed here are supported by PPT Vision.
- Page 29 C-Series Camera Users Guide Page 27...
