1.
Remove the lens from the camera body. Turn the mounting
screw counter-clockwise to loosen the mounting ring.
2.
If desired, insert a fastener through the countersunk hole in the
center of the bracket. Rotate the camera body so the image will
be in the desired orientation when the camera is mounted.

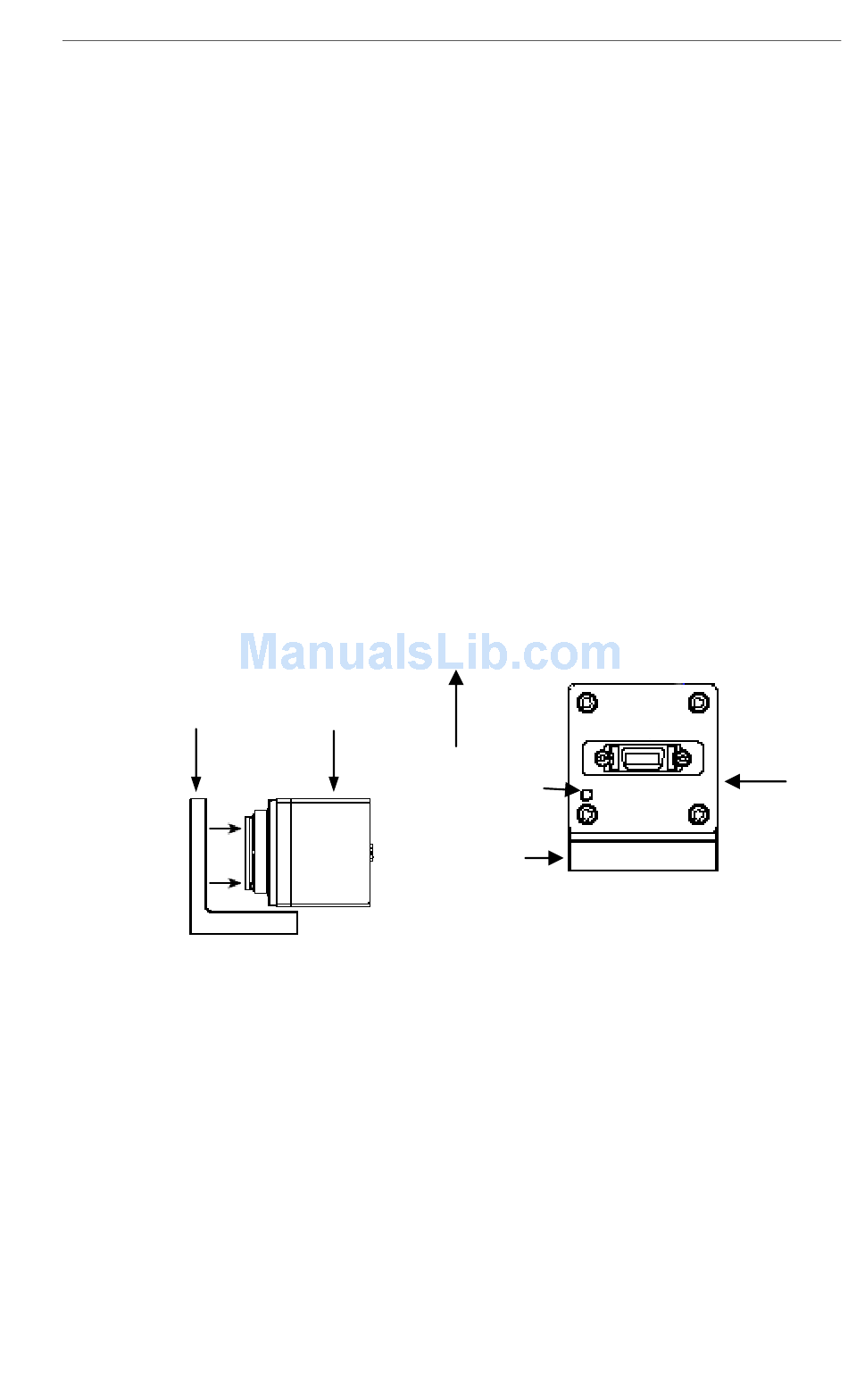

Place the mounting ring over the front of the camera body with
the mounting block facing the rear of the camera. (See diagram
below.)
3.
With the ring held tightly against the camera body, turn the
mounting screw clockwise to tighten the ring and secure it to the
camera. To adjust camera orientation up to five degrees after it
is mounted, loosen the screw slightly, turn the camera body,
then tighten the screw.
4.
Secure the mounting block to a rigid surface for proper stability
and heat transfer
the bottom of the mounting bracket, or through the camera-side
countersunk hole in the center of the bracket. (See Camera
Dimensions on page 4.)
Mounting
Ring

PPT-5700 Remote Head Dimensions

The PPT-5700 camera has a small remote head with a 0.8 meter cable
attached to the camera body with a sixteen-pin connector.
The camera body, remote head, and connecting cable must be mounted in
a fixed position. The cable is not intended for continuous flexing or
movement.
.
Use fasteners in the pre-threaded holes in
Camera
Body
Side View
C-Series Camera Users Guide
Top of
LED
Indicator
Mounting
Block
Page 5
Camera
Rear View
Body
