Connecting A Camera - PPT Vision C series User Manual

PPT Vision
Route the connecting cable away from devices that emit large amounts of
electromagnetic energy, such as electric motors or solenoids. They may
cause interference with image transmission.
Use a lens locking ring (Part # 381-1247) to secure a micro-lens on the
remote head.
Lens and
Locking Ring
fasten here

Connecting a Camera

Use only a standard DSL cable (Part # 431-0452-xx) to connect the camera
to the vision device. The maximum allowable cable length is 25 meters (82
feet).
To connect the cable, align the connector with the camera or device
connector, push gently until the cable seats securely, then tighten the
connector screws. To disconnect it, loosen the screws completely, then
grasp the connector and gently pull.
DSL Cable Connector
NOTE: To reduce stress on the cable and connectors, loop the cable and
fasten it to the camera's mounting block. Do not crimp or tie the cable tightly
with wire ties as this may damage it internally. The cable is not intended for
continuous flexing or movement. The cable's maximum bend radius is
fifteen times the cable diameter.
ATTENTION:
damaged by electrostatic discharge if it is
disconnected from the camera body.

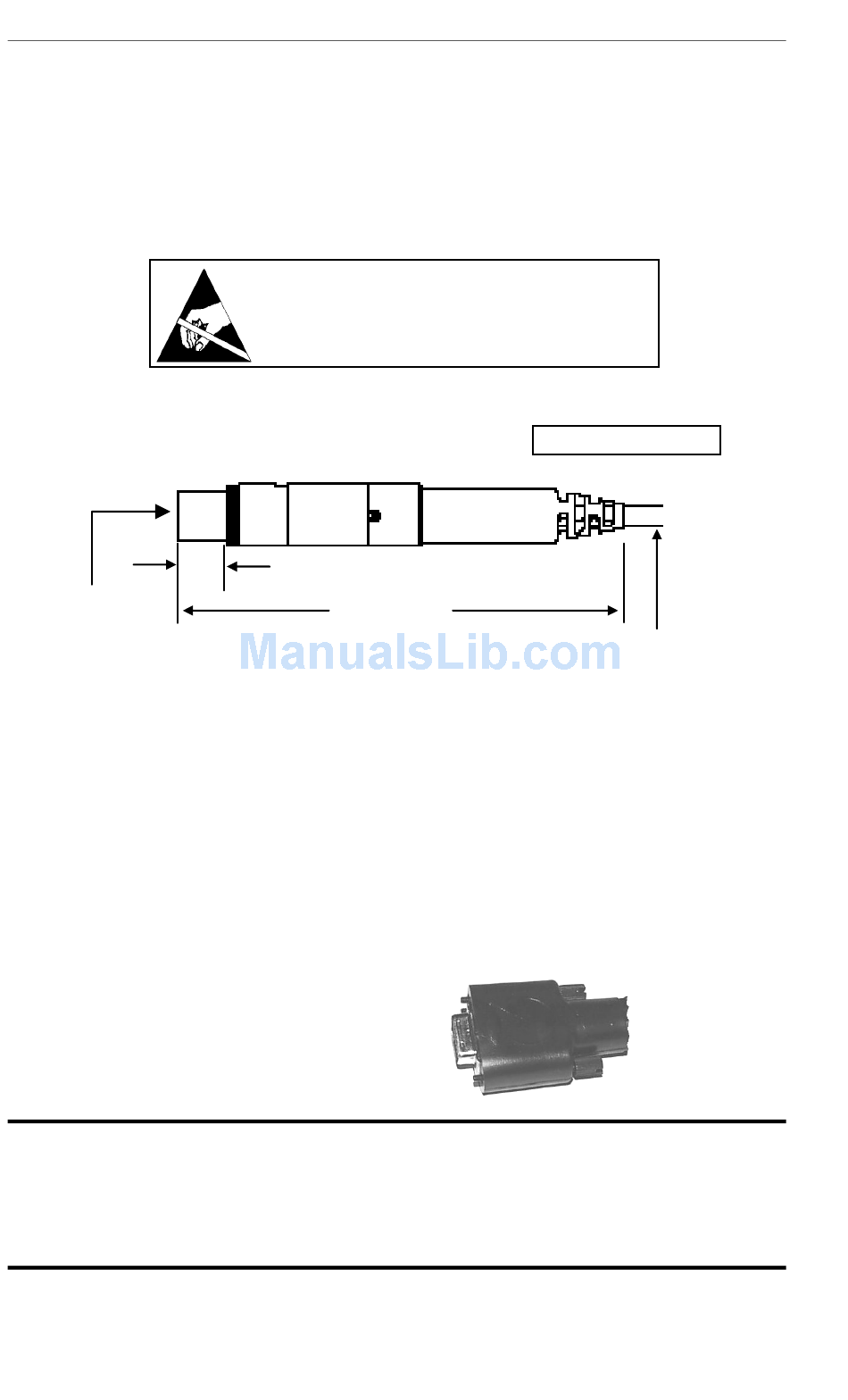

Remote Head
.75 (19) diameter
.62 (15.7)
5.51 (139.9)
(431-0452-xx)
The remote head can be
Page 6
UNITS: INCH (mm)
0.8-meter cable
connects to camera
