MQ Power EGC1000C Specifications

Model
EGC1000C
1000 KW

Standard Features

Cummins Heavy Duty Diesel Engine

4-cycle design, turbocharged, aftercooled, direct injection

Polymide blade cooling fan

Engine coolant heater

Meets Tier 2 EPA emissions standards
Fuel System

1000 gallon, single wall fuel tank

Fuel priming system

Fuel/water separators and drip pan

Electric fuel pump

External fuel fill

®
30 micron RACOR fuel/water separator with drip pan assembly
Alternator

Brushless, 4-pole, synchronous, WYE connection

Class H insulation system conforms to NEMA MG1-22, BS5000,
CSA-C22-2, IEC-34-1 standards for temperature rise

Separate excitation for fast recovery from block loads and motor
starting

Drip-proof, self-venting, amortisseur windings

Epoxy impregnated windings with tropical insulation for increased
environmental protection and long life
Automatic Voltage Regulator
■ Circuitry senses true RMS voltage, rather than average, for superior
load regulation

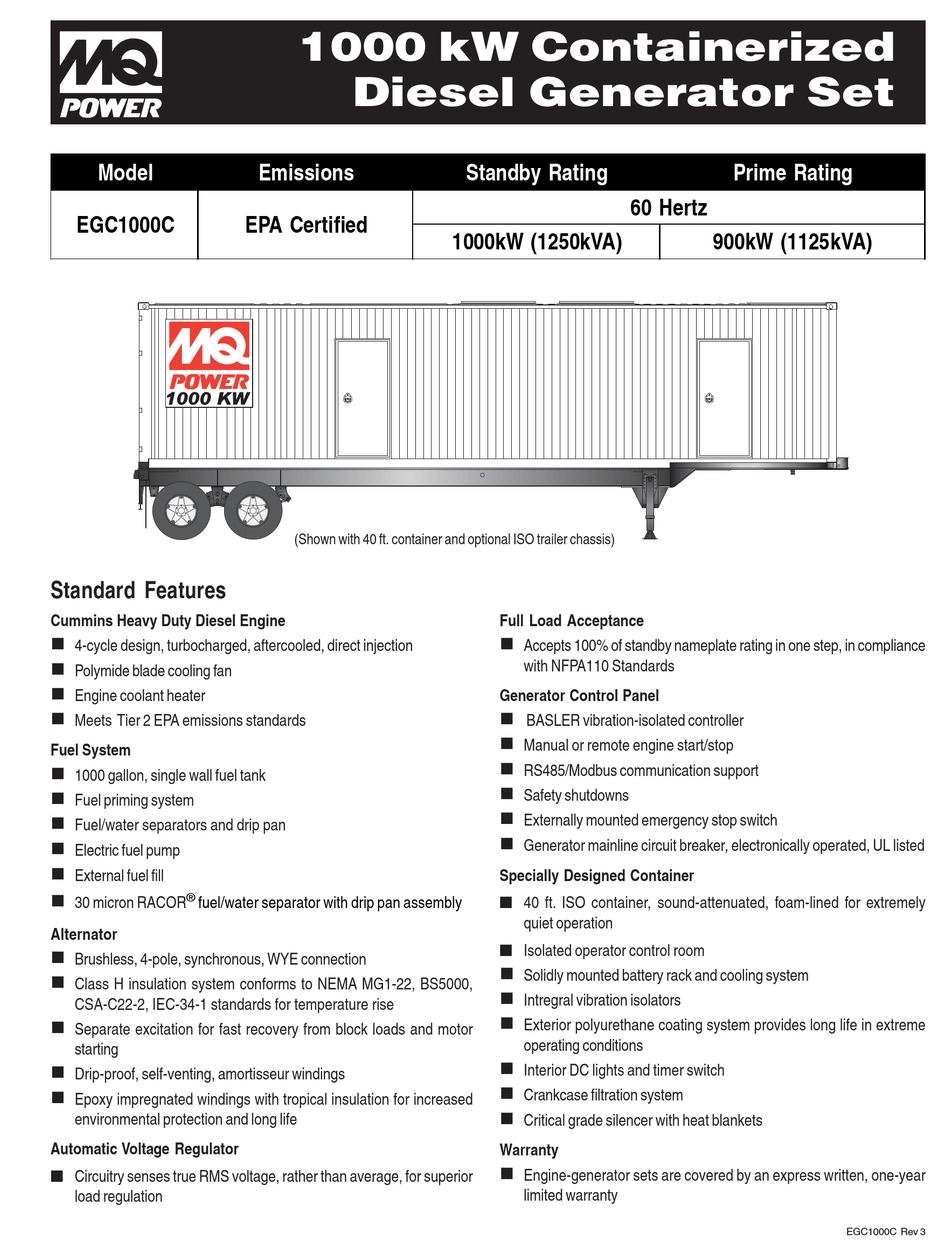

1000 kW Containerized
Diesel Generator Set
Emissions
EPA Certified
(Shown with 40 ft. container and optional ISO trailer chassis)
Standby Rating
1000kW (1250kVA)
Full Load Acceptance

Accepts 100% of standby nameplate rating in one step, in compliance
with NFPA110 Standards
Generator Control Panel

BASLER vibration-isolated controller

Manual or remote engine start/stop

RS485/Modbus communication support

Safety shutdowns

Externally mounted emergency stop switch

Generator mainline circuit breaker, electronically operated, UL listed
Specially Designed Container
■ 40 ft. ISO container, sound-attenuated, foam-lined for extremely
quiet operation
■ Isolated operator control room

Solidly mounted battery rack and cooling system

Intregral vibration isolators

Exterior polyurethane coating system provides long life in extreme
operating conditions

Interior DC lights and timer switch

Crankcase filtration system

Critical grade silencer with heat blankets
Warranty

Engine-generator sets are covered by an express written, one-year
limited warranty
Prime Rating
60 Hertz
900kW (1125kVA)
EGC1000C Rev 3
