Crestron TMK-4L & WMKT-4L
Installation Guide – DOC. 6390A

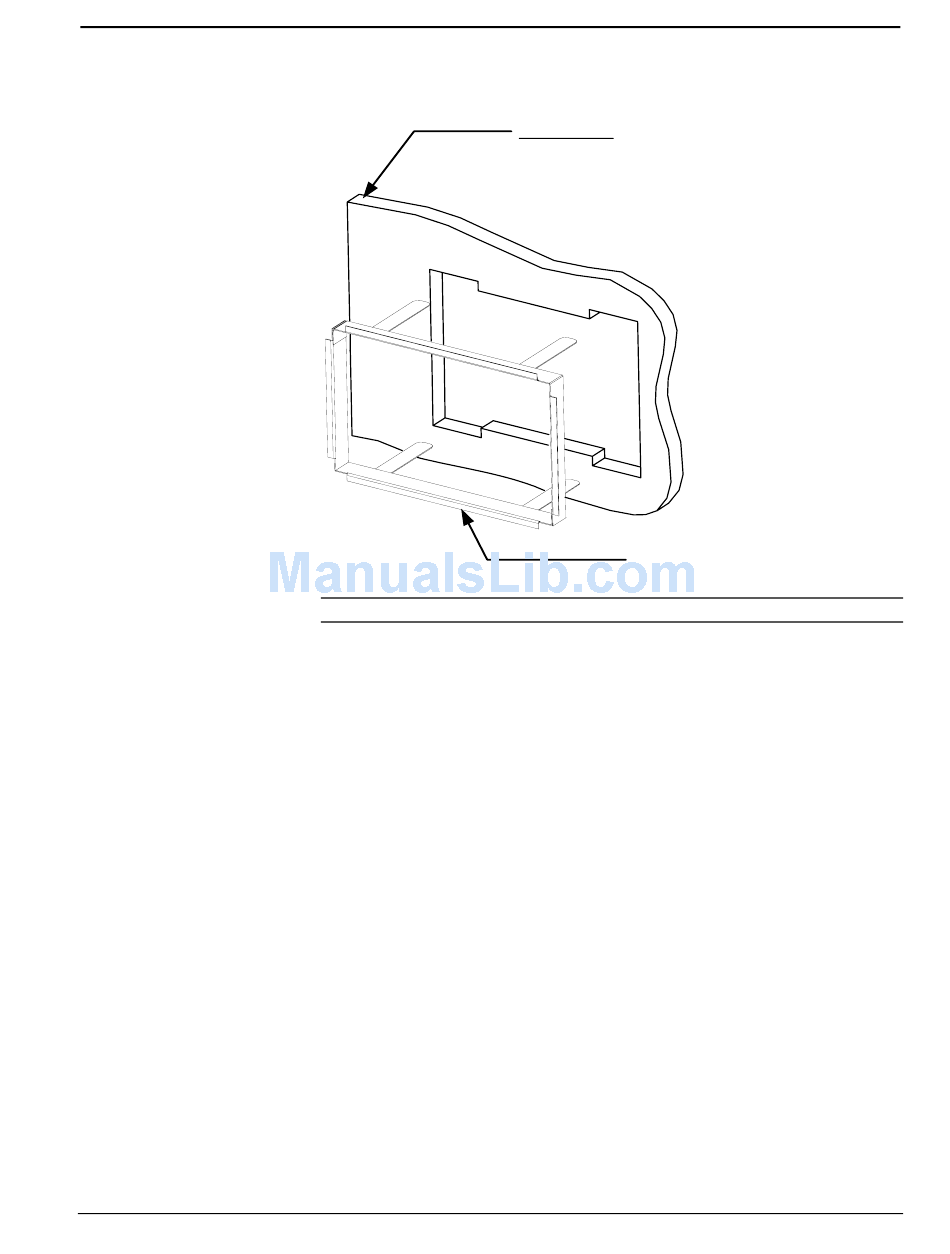

Insert Trim Ring into Opening
NOTE: The required PMK-4L or BB-4L is not shown.
3. When the trim ring is in position, bend the top two flanges of the ring
upward and the bottom two flanges downward.
•
If mounting into the PMK-4L, bend the flanges approximately 90
degrees.
•
If mounting into the BB-4L, bend the flanges back as far as they can
go.
4. Run the necessary cables for the touchpanel and secure them behind the
drywall.
5. The TPS-4L can be installed using the four tapped holes in the PMK-4L or
BB-4L. Refer to the latest revision of the TPS-4L Operations and
Installation Guide (Doc. 6449) for details. Refer also to the comprehensive
illustration on the following page.
Trim Ring Mount Kits
IMPORTANT
MAKE DRYWALL CUTOUT AS LEVEL AS
POSSIBLE. MOUNTING PLATE ALLOWS
ONLY MINOR ADJUSTMENT OF THE
TOUCHPANEL.
TRIM RING (2013241)
Trim Ring Mount Kits: TMK-4L & WMKT-4L • 5
