Summary of Contents for Crestron TMK-6X-DSW

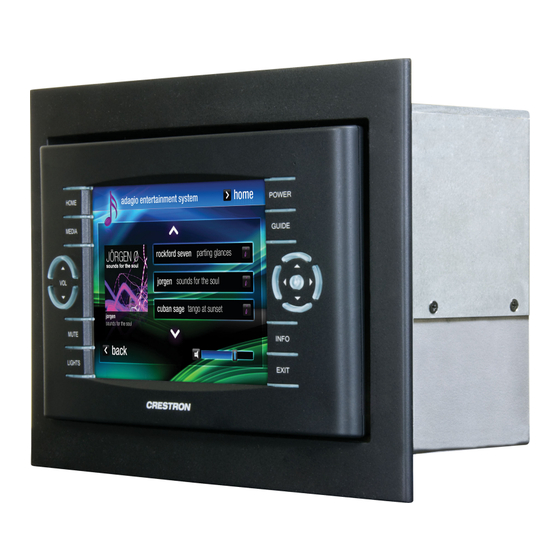

- Page 1 Crestron TMK-6X-DSW & WMKT-6X-DSW Trim Ring Kits for the TPS-6X-DSW Installation Guide...
- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2009 Crestron Electronics, Inc.
-
Page 3: Table Of Contents
Crestron TMK/WMKT-6X-DSW Contents Trim Ring Mount Kits for theTPS-6X-DSW: TMK-6X-DSW & WMKT-6X-DSW Introduction ... 1 Setup ... 2 Supplied Hardware ... 2 Installation ... 4 Resources... 10 Industry Compliance ... 10 Reference Documents... 10 Further Inquiries ... 10 Future Updates ... 10 Return and Warranty Policies ... -
Page 5: Trim Ring Mount Kits For Thetps-6X-Dsw: Tmk-6X-Dsw & Wmkt-6X-Dsw
WMKT-6X-DSW. For concrete and rock mounting material, allow for proper ventilation before mounting the TPS-6X-DSW. There are two Trim Ring Mount Kits. The TMK-6X-DSW is a pre-construction accessory. Pre-construction refers to framed walls prior to hanging drywall. This accessory must be used with either the Pre-Construction Mount Kit (PMK-6X-DSW) or Wall Mount Back Box (BB-6X-DSW). -
Page 6: Setup
Setup Supplied Hardware The TMK-6X-DSW consists of a metal trim ring that attaches to the BB-6X-DSW or PMK-6X-DSW. The WMKT-6X-DSW consists of the trim ring found in the TMK-6X-DSW as well as a mounting plate, cutout template and mounting screws. - Page 7 Crestron TMK/WMKT-6X-DSW Trim Ring Mount Kits for the TPS-6X-DSW Dimensional Drawing – Mounting Plate 10.31 in (26.19 cm) 0.06 in 8.00 in (0.16 cm) (20.32 cm) 8.16 in (20.73 cm) 6.35 in (16.13 cm) Drywall Cutout Template and Dimensions (supplied with WMKT-6X-DSW only 9 1/16 in (230 mm) 7 11/16 in...
-
Page 8: Installation
6. Be sure to review each procedure before starting. TMK-6X-DSW Procedure This section provides the necessary steps for the assembly of the TMK-6X-DSW with either the BB-6X-DSW or PMK-6X-DSW. It is assumed that the BB-6X-DSW or PMK-6X-DSW has been secured to the stud according to the instructions in the latest revisions of their Installation Guides (Doc. - Page 9 Crestron TMK/WMKT-6X-DSW TPS-6X-DSW Mounting Using TMK-6X-DSW – Exploded View TPS-6X-DSW Installation Guide – DOC. 6780A Trim Ring Mount Kits for the TPS-6X-DSW 3. When the trim ring is in position, bend the top two flanges of the ring upward and the bottom two flanges downward.
- Page 10 Trim Ring Mount Kits for the TPS-6X-DSW WMKT-6X-DSW Procedure This section provides the necessary steps for the assembly and installation of the WMKT-6X-DSW into a wall. Review the procedure and complete the steps in the order provided. The only tools or materials required and not supplied are a drywall saw or equivalent and a level.
- Page 11 Crestron TMK/WMKT-6X-DSW Insert Trim Ring into Opening NOTE: The mounting plate will have a slight play; this is normal. It allows for minor adjustments to the TPS-6X-DSW during installation. Installation Guide – DOC. 6780A Trim Ring Mount Kits for the TPS-6X-DSW DRYWALL TRIM RING (2022808 )
- Page 12 Trim Ring Mount Kits for the TPS-6X-DSW Bend Flanges – 1 of 4 Flanges Bent 8 • Trim Ring Mount Kits for the TPS-6X-DSW: TMK/WMKT-6X-DSW Crestron TMK/WMKT-6X-DSW 7. Run the necessary cables for the TPS-6X-DSW and secure them behind the drywall. 8.
- Page 13 Crestron TMK/WMKT-6X-DSW TPS-6X-DSW Mounting Using WMKT-6X-DSW – Exploded View TPS-6X-DSW Installation Guide – DOC. 6780A Trim Ring Mount Kits for the TPS-6X-DSW MOUNTING PLATE DRYWALL (2022811 ) TRIM RING (2022808 ) SCREWS (4) #06-32 1 1/2" PAN HEAD (2007254 ) Trim Ring Mount Kits for the TPS-6X-DSW: TMK/WMKT-6X-DSW •...
-
Page 14: Resources
Trim Ring Mount Kits for the TPS-6X-DSW Resources Industry Compliance As of the date of manufacture, the TMK-6X-DSW and WMKT-6X-DSW have been tested and found to comply with specifications for CE marking. Reference Documents The latest version of all documents mentioned within the guide can be obtained from the Crestron website (www.crestron.com/manuals). -
Page 15: Return And Warranty Policies
Crestron TMK/WMKT-6X-DSW Return and Warranty Policies Merchandise Returns / Repair Service 1. No merchandise may be returned for credit, exchange or service without prior authorization from CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an RMA (Return Merchandise Authorization) number. - Page 16 Crestron Electronics, Inc. Installation Guide – DOC. 6780A 15 Volvo Drive Rockleigh, NJ 07647 (2023088) Tel: 888.CRESTRON 01.09 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
