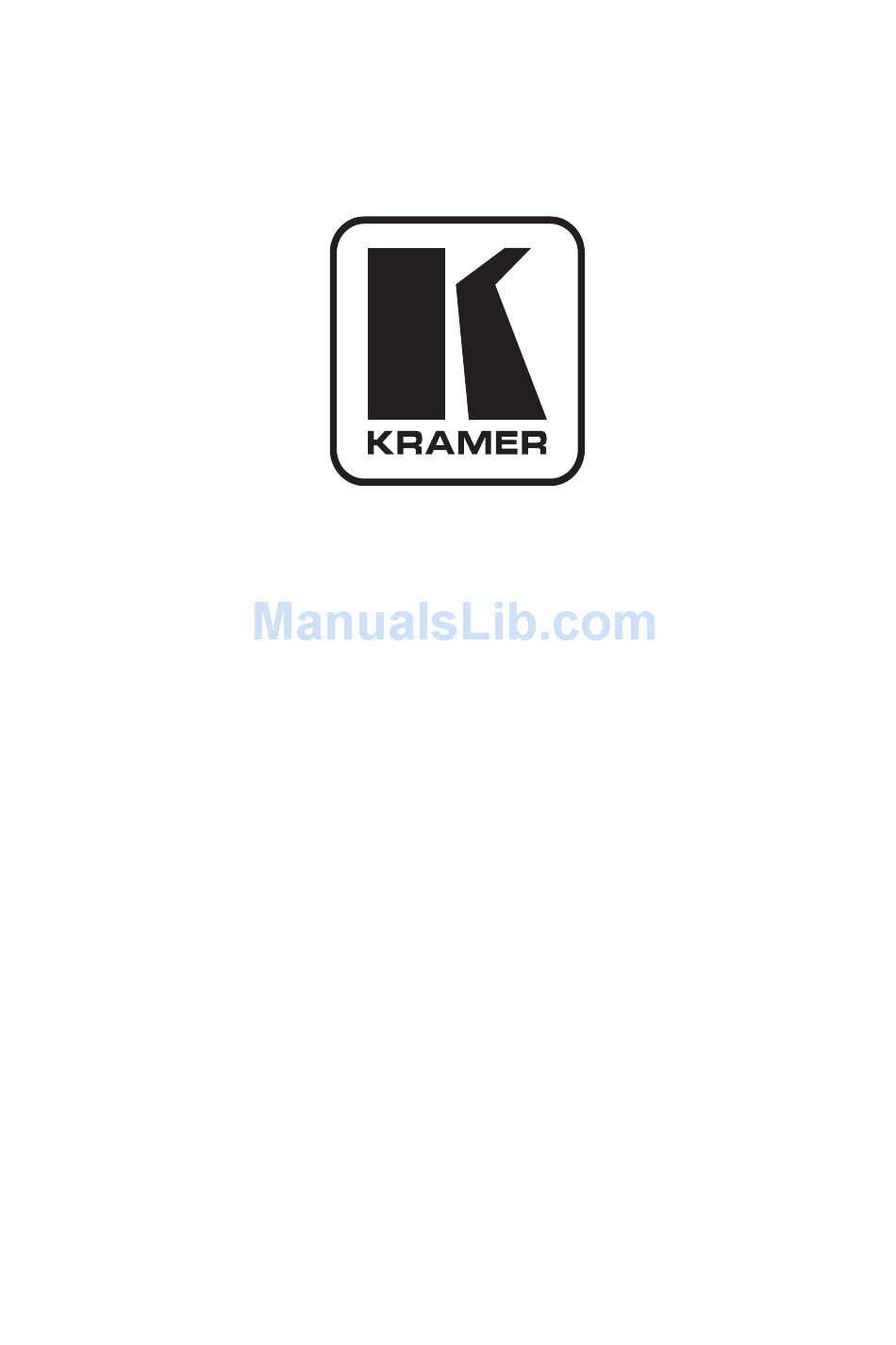

Kramer Electronics, Ltd.
Preliminary
USER MANUAL
Model:
SP-10D
Digital Video Processor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-10D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kramer SP-10D

  • Page 1 Kramer Electronics, Ltd. Preliminary USER MANUAL Model: SP-10D Digital Video Processor...
  • Page 2: Table Of Contents

    Table 1: Front Panel SP-10D Digital Video Processor   Table 2: Rear Panel SP-10D Digital Video Processor   Table 3: DIP-switch Settings   Table 4: Test Signals   Table 5: Technical Specifications of the SP-10D Digital Video Processor   Table 6: Protocol Definitions...
  • Page 3: Introduction

    2 We recommend that you use only the power cord supplied with this device 3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com...
  • Page 4: Quick Start

    Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 5: Overview

    (something that commonly confuses many high-grade transcoders). The SP-10D processes "slow" scenes using four TV fields, and portions of "fast" scenes using two TV fields. The SP-10D combines both methods for each TV frame 3 RGB and YUV inputs, RGB and YUV outputs, and independent control of RED, GREEN and BLUE; and Y, R-Y and B-Y...
  • Page 6: Your Sp-10D Digital Video Processor

    (often associated with low quality cables) • Avoid interference from neighboring electrical appliances that may adversely influence signal quality and position your Kramer SP-10D away from moisture, excessive sunlight and dust Your SP-10D Digital Video Processor Figure...
  • Page 7: Figure 1: Sp-10D Digital Video Processor

    Your SP-10D Digital Video Processor Figure 1: SP-10D Digital Video Processor...
  • Page 8: Table 1: Front Panel Sp-10D Digital Video Processor

    Your SP-10D Digital Video Processor Table 1: Front Panel SP-10D Digital Video Processor Feature Function POWER Switch Illuminated switch for turning the unit ON or OFF INPUT STANDARD LEDs Cycle between PAL B, PAL N, PAL M, NTSC 3, NTSC 4, and SECAM.
  • Page 9: Table 2: Rear Panel Sp-10D Digital Video Processor

    Press to increase the level FREEZE Button Pauses the output video PANEL LOCK Button Disengages the front panel buttons Table 2: Rear Panel SP-10D Digital Video Processor Feature Function CV BNC Connector Connects to the composite video source Y/C 4-pin Connector...
  • Page 10: Installing The Sp-10D In A Rack

    Installing the SP-10D in a Rack Installing the SP-10D in a Rack This section provides instructions for rack mounting the 1U unit. KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 11: Connecting Your Sp-10D Digital Video Processor

    (not illustrated in Figure 1 All output formats are always available. However, when only one output is required, connect that output of the SP-10D, and leave the other outputs unconnected 2 Switch OFF the power on each device before connecting it to your SP-10D. After connecting your SP-10D, switch on its power and then switch on the power on each device 3 Pushed in terminates the input.
  • Page 12: Connecting A Pc

    Connecting Your SP-10D Digital Video Processor Figure 2: Connecting the SP-10D Digital Video Processor Connecting a PC You can connect to the unit via a crossed RS-232 connection, using for example, a PC. A crossed cable or null-modem is required as shown in method A and B respectively.
  • Page 13: Dip-Switch Settings

    3 and 5 to be connected, you are free to decide whether to connect only these 3 pins or all 9 pins. Figure 4: Straight Cable RS-232 Connection with a Null Modem Adapter DIP-Switch Settings The SP-10D DIP-switch settings are defined in Table 3 Table Table 3: DIP-switch Settings...
  • Page 14: Operating The Sp-10D Digital Video Processor

    • RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller To operate the SP-10D using the front panel buttons, do the following: 1. Turn on the power and after it has completed its warm up sequence, press the INPUT button to select the source—CV, YC, YUV, or RGB/S—that...
  • Page 15 1 Item 50 in Table 2 2 The SP-10D has a full range of color control features in both YUV and RGB color spaces with independent control of RED, GREEN and BLUE; and Y, R-Y and B-Y 3 Using the V-SHARP and H-SHARP buttons...
  • Page 16: Storing And Recalling Setups

    Locking the Front Panel To prevent changing the settings unintentionally or tampering with the front panel, lock your SP-10D. Unlocking releases the protection mechanism. To lock the SP-10D: • Press the PANEL LOCK button (for about 2 seconds) until it illuminates —...
  • Page 17: Technical Specifications

    Technical Specifications Table 5 includes the technical specifications: Table 5: Technical Specifications of the SP-10D Digital Video Processor INPUTS: 1 composite video: 1Vpp/75Ω on a BNC connector; 1 YC: 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C) on a 4-pin connector; 1 component: Y/R-Y/B-Y (or RGB/S) 1Vpp/0.7Vpp/0.7Vpp/75Ω on BNC connectors;...
  • Page 18: Communication Protocol

    Communication Protocol Communication Protocol This protocol, which enables RS-232 communication between the SP-10D and the PC, uses 4 bytes of information, and data is at 9600 baud. Table 6: Protocol Definitions First byte options RESET VIDEO READ PARAMETER WRITE PARAMETER...
  • Page 19 Communication Protocol Byte 2 Command Description Byte 3 (parameter value) GLOBAL OUTPUT FORMAT 0 - YUV 1 - RGB 2 - RGBS OUTPUT_STANDARD 0 - PAL B 1 - PAL N 2 - PAL M 3 - NT 3 4 - NT 4 5 - SEC GENLOCK 0 - OFF...
  • Page 20 H61 H80 H80 H98 2. Reset: H80 H80 H80 H98 3. Recall set up 1: HA2 H80 H80 H98 DEC: 162 128 128 152 4. Store set up 2: HA3 H80 H81 H98 DEC: 162 128 129 152 KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 21 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
  • Page 22 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
