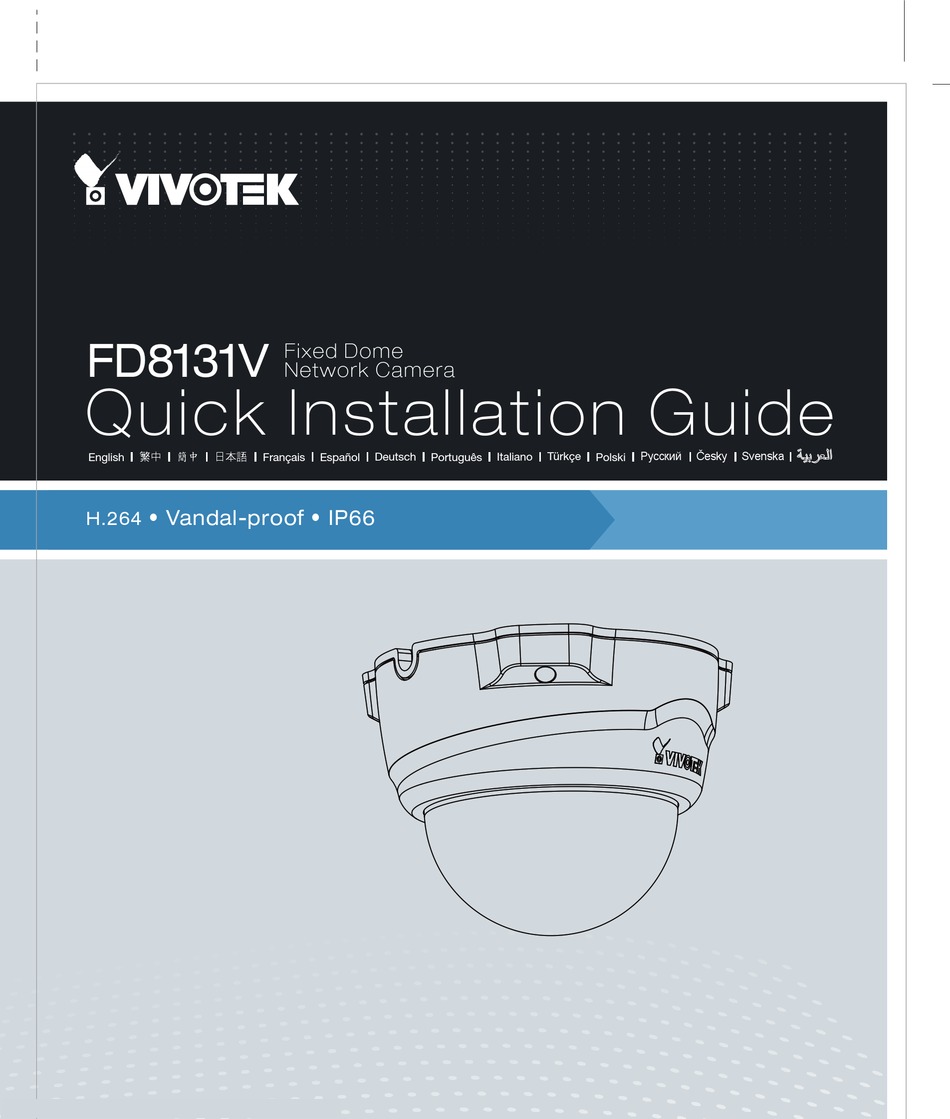

- Page 1 FD8131V Fixed Dome Network Camera Quick Installation Guide Русский Česky Svenska 繁中 簡中 日本語 Türkçe Français Deutsch Italiano Polski English Español Português • Vandal-proof • IP66 H.264...
- Page 2 Warning Before Installation Power off the Network Camera as Keep the Network Camera away soon as smoke or unusual odors are from water. If the Network Camera detected. becomes wet, power off immediately. Do not place the Network Camera Refer to your user's manual for the around heat sources, such as a operating temperature.
-
Page 3: Package Contents
Package Contents FD8131V Alignment Sticker Drill hole Cable hole Cable hole Quick Installation Guide / Warranty Software CD Card RJ45 Female/Female Coupler / Screwdriver/ Screws / Clamp Core Physical Description Black Cover Lens Ground Wire General I/O Terminal Block Ethernet 10/100 RJ45 Plug... -
Page 4: Hardware Installation
Hardware Installation First, follow the instructions below to remove the dome cover. Network Camera Model No: FD8131V MAC:0002D107258A RoHS Dome Cover This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 5 Ceiling Mount Wall Mount 1. Attach the alignment sticker to the ceilling/wall. 2. Through the two circles on the sticker, drill two pilot holes into the ceilling/wall. 3. The Network Camera can be mounted with the cable routed through the ceiling/wall or from the side.
-
Page 6: Network Deployment
Network Deployment General Connection (without PoE) 1. If you have external DI devices, make the connection from general I/O terminal block. 2. Use the supplied RJ45 female/female coupler to connect the Network Camera to a switch. Use a Category 5 Cross Cable when Network Camera is directly connected to PC. 3. - Page 7 When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch. PoE Power Injector (optional) Non-PoE Switch IMPORTANT: Although the camera and the cable gland on the camera's end are waterproof, the cable molding at the other end is not waterproof.
-
Page 8: Assigning An Ip Address
2. The program will conduct an analysis of your network environment. After your network is analyzed, please click on the “Next” button to continue the program. 3. The program will search for all VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. -
Page 9: Adjusting The Lens
Adjusting the Lens Based on the live image retrieved from the camera, adjust the camera lens to the desired viewing angle: 1. Turn the lens module left and right. 2. Loosen the tilt adjustment screws on both sides of the camera and then turn the lens module up and down. - Page 10 To adjust the zoom factor and focus range 1. Loosen the zoom controller and then adjust zoom factor by moving the controller left and right. Upon completion, tighten the zoom controller screw. 2. Loosen the focus controller and then adjust focus range by moving the controller left and right.
- Page 11 P/N:625018600G Rev. 1.0 All specifications are subject to change without notice. Copyright 2012 VIVOTEK INC. All rights reserved. VIVOTEK INC. VIVOTEK USA, INC. 6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C. 2050 Ringwood Avenue, San Jose, CA 95131 |T: +886-2-82455282| F: +886-2-82455532| E: sales@vivotek.com...
