Fireplace Installation
Mantel Installation
For use with a new or existing
mantel. Depending on the avail-
able space within the manel cav-
ity, the unit can be secured to the
mantel at the bottom side or back.
Remove the screw on the bottom
flange in the most appropriate
place for securing and using the
provided L-bracket and the screw
that was removed attach the fire-
box to the mantel. (Figure 2)
!
NOTE: There are no guide
holes provided for the L-Brackets
in the mantel.
If not installing the unit into a
Dimplex mantel the required
opening dimensions for the
fireplace are: 27.0 in. (686 mm)
wide x 23.0 in. (584 mm) high x
7 ½ in. (191 mm) deep (Figure 3).
The firebox is to be installed
from the front of the mantel and
inserted so that the flanges are
flush against the front surface of
the mantel.
8

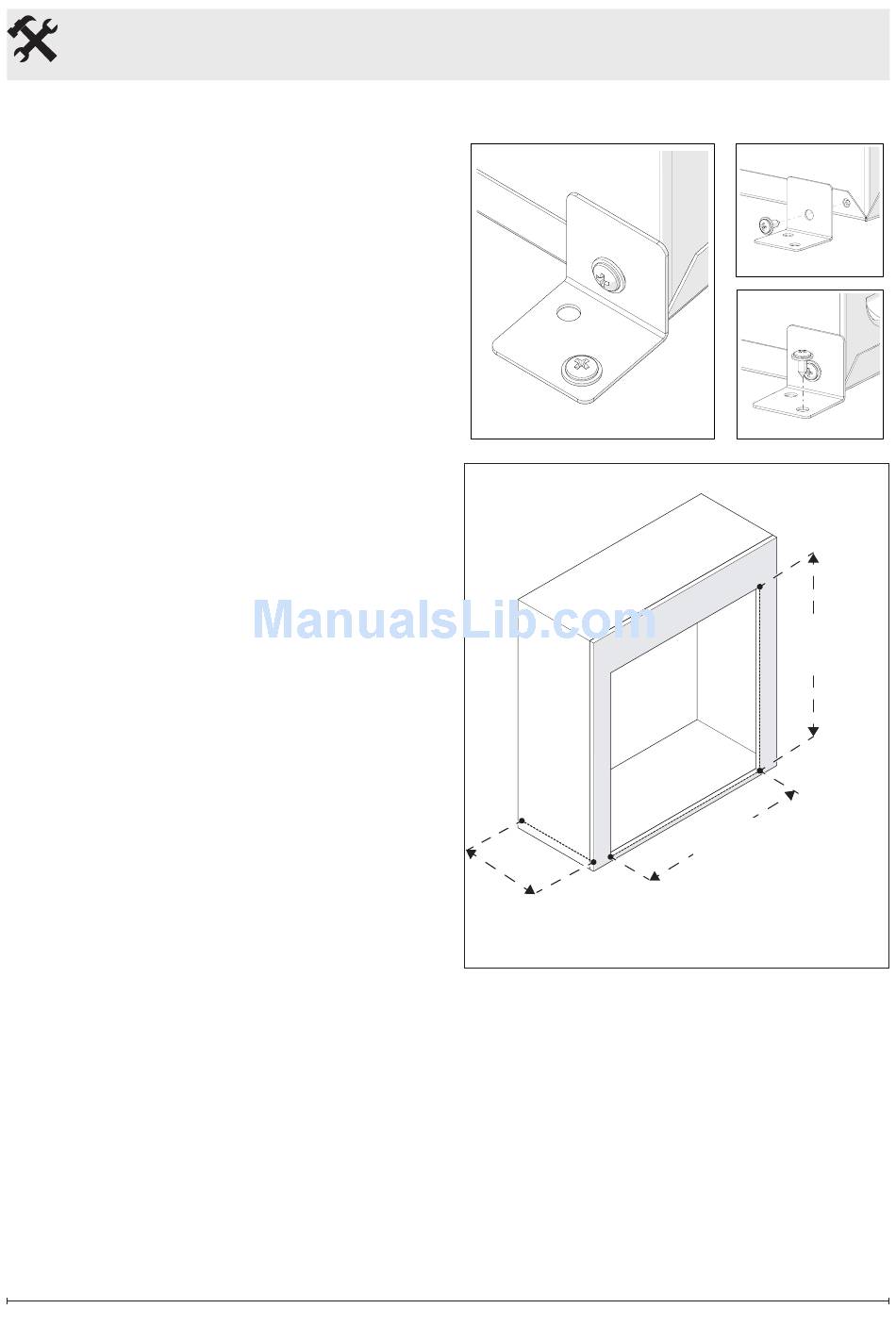

Figure 2
Figure 3
7 ½ in.
(191 mm)
23.0 in.
(584 mm)
27.0 in.
(686 mm)
