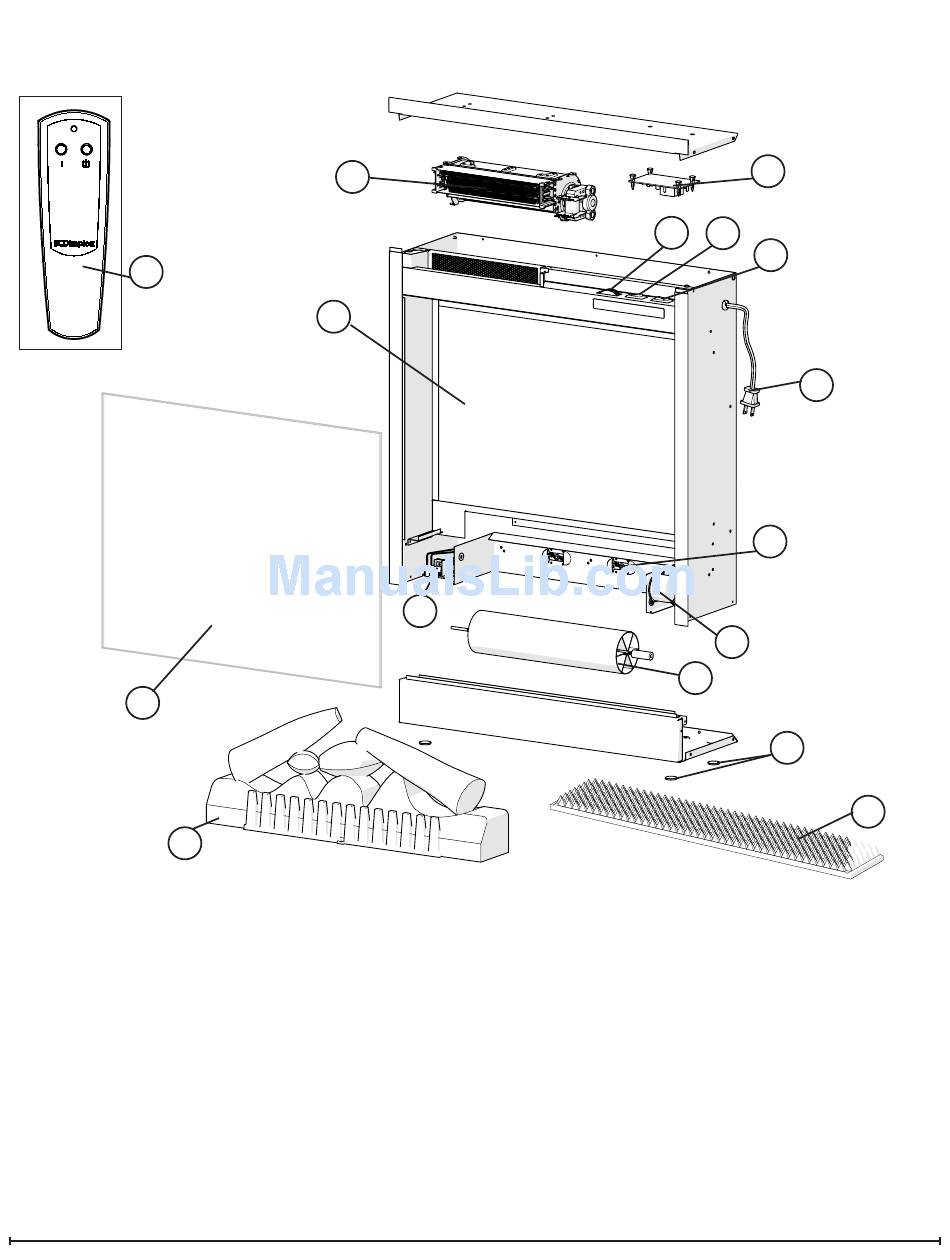

EXPLODED PARTS DIAGRAM

10
9
15

REPLACEMENT PARTS

1. Flicker Motor . . . . . . . . . . . . . . . . . . . . 2000220100RP
2. Heater Assembly (with Cutout) . . . . . . 2203610100RP
3. Thermostat with Knob . . . . . . . . . . . . . 2600090100RP
4. 3 Position Switch. . . . . . . . . . . . . . . . . 2800071100RP
5. Heater On/Off Switch . . . . . . . . . . . . . 2800070700RP
6. Cord Set . . . . . . . . . . . . . . . . . . . . . . . 4100090203RP
7. Flicker Rod . . . . . . . . . . . . . . . . . . . . . 5902620100RP
8. Partially Reflective Panel . . . . . . . . . . 5902580100RP
9. Front Glass . . . . . . . . . . . . . . . . . . . . . 5902570100RP
2
8
12
10. Remote Control . . . . . . . . . . . . . . . . . . 3000370500RP
11. Remote Control Receiver . . . . . . . . . . . 3000380200RP
12. LED Driver Board . . . . . . . . . . . . . . . . 3001170100RP
13. LED Light Assembly
14. Felt Feet Pads (Set of 4). . . . . . . . . . . 8600140101RP
15. Log Set Assembly (DF2000L) . . . . . . . 0478550100RP
16. Glass Media (DF2000CR) . . . . . . . . . . 0441480100RP
3
7
DF2000L - 2 LED's . . . . . . . . . . . . . . . 3001180100RP
DF2000CR - 3 LED's . . . . . . . . . . . . . 3001180200RP
