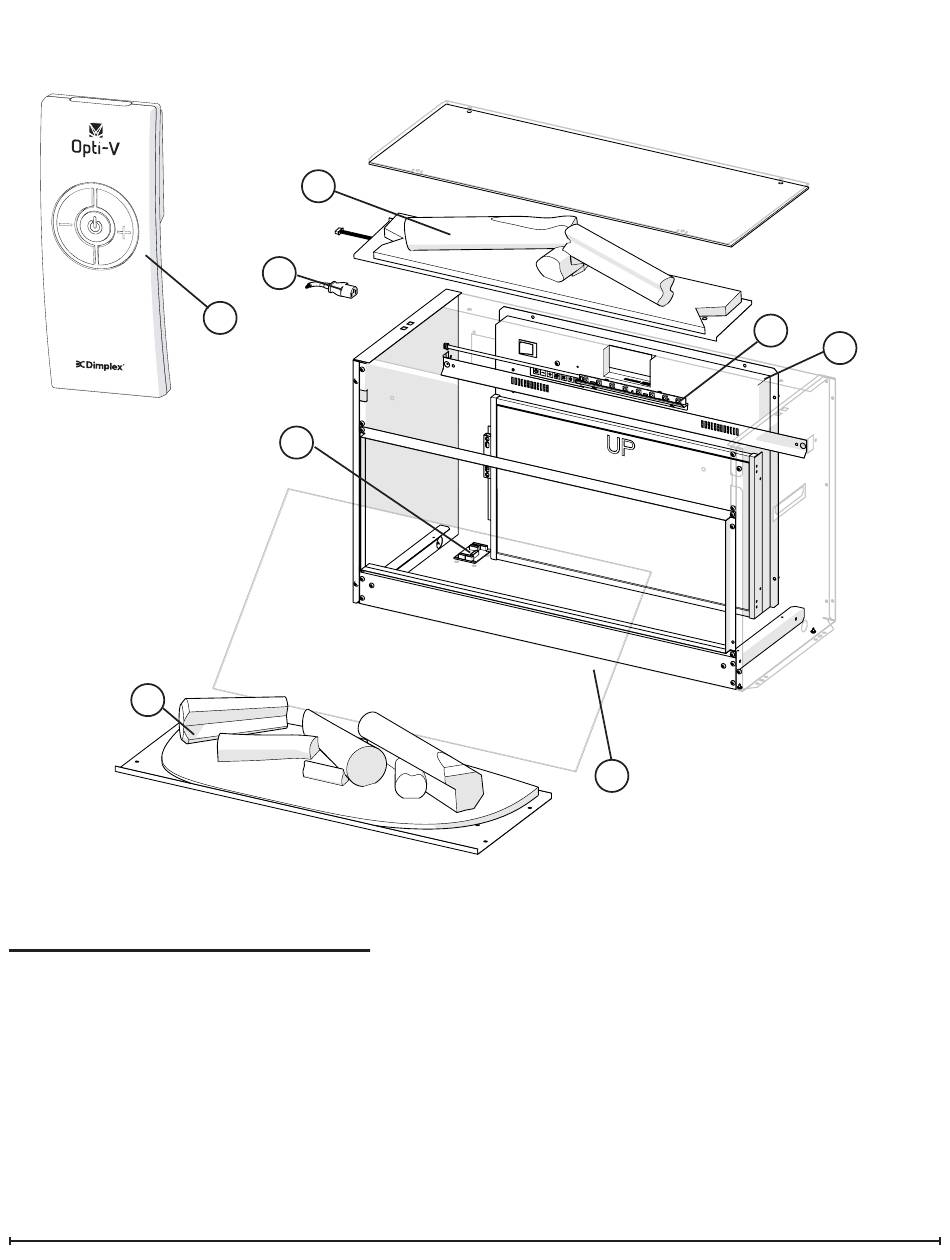

EXPLODED PARTS DIAGRAM - SINGLE

8
Replacement Parts List - Single
1. LED Light Strip . . . . . . . . . . . . . . . . . . . . . . . . 9600880100RP
2. LED Light Controller . . . . . . . . . . . . . . . . . . . . 9600930100RP
3. Opti-V Remote Control . . . . . . . . . . . . . . . . . . 9600950100RP
4. Power Supply Wire Harness . . . . . . . . . . . . . 9600980100RP
5. Electrical Connector . . . . . . . . . . . . . . . . . . . . 9601030100RP
Single LED Screen Assembly (see note)*
6.
Glass*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9600910100RP
7.
9
5
3
2
9600890100RP
7
Lower Logset Assembly* . . . . . . . . . . . . . . . . 9600900100RP
8.
Lower Coral Assembly . . . . . . . . . . . . . . . . . . 9601400200RP
Upper Logset Assembly (see note) . . . . . . . . 9600940100RP
9.
Upper Coral Assembly . . . . . . . . . . . . . . . . . . 9601390200RP
10. 8mm Socket . . . . . . . . . . . . . . . . . . . . . . . . . 9601170100RP
!
NOTE: Send out Socket when sending out upper logs
and Screen Assembly.
* Group items that include suction cups.
1
6
5
