The Vantage Vue

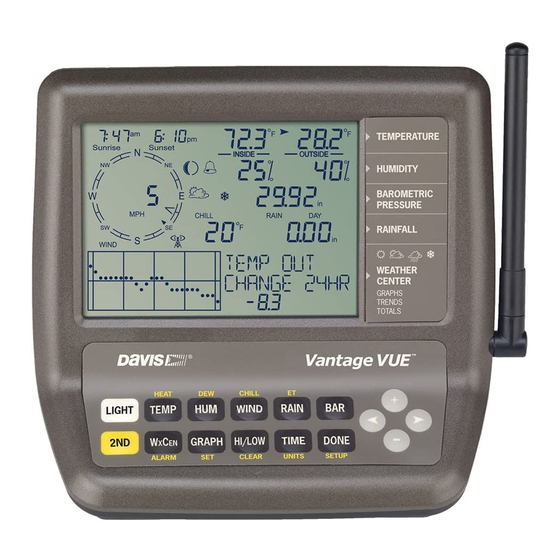

(#6250) wireless weather station includes two components: the Integrated Sensor Suite (ISS) (#6357)
which houses and manages the external sensor array, and the console (#6351) which provides the user interface, data
display, and calculations. The Vantage Vue ISS and console communicate via an FCC‐certified, license‐free frequency‐
hopping transmitter and receiver. Frequency‐hopping spread‐spectrum (FHSS) technology provides greater
communication strength over longer distances and areas of weaker reception. User‐selectable transmitter ID codes
allow up to eight stations to coexist in the same geographic area. (The Vantage Vue console can also receive and display
data from any Vantage Pro2™ or Vantage Pro2 Plus ISS. The Vantage Pro2 Plus includes two additional sensors: the
UV sensor and the solar radiation sensor.) The console may be powered by batteries or by the included AC‐power
adapter. The wireless ISS is solar‐powered with a battery backup. Use WeatherLink™ for Vantage Vue to let your
weather station interface with a computer, to log weather data, and upload weather information to the internet.
The Vantage Vue station relies on passive shielding to reduce solar‐radiation induced temperature errors in the outside
temperature sensor readings.
I n t e g r a t e d S e n s o r S u i t e ( I S S )
Operating Temperature ..................................................... -40° to +150°F (-40° to +65°C)
Non-operating (Storage) Temperature............................... -40° to +158°F (-40° to +70°C)
Current Draw ................................................................... 0.20 mA (average), 30 mA (peak) at 3.3 VDC
Solar Power Panel ........................................................... 0.5 Watts
Battery ............................................................................. CR-123 3-Volt Lithium cell
Battery Life (3-Volt Lithium cell) ........................................ 8 months without sunlight - greater than 2 years depending on solar
Wind Speed Sensor ......................................................... Wind cups with magnetic detection
Wind Direction Sensor ..................................................... Wind vane with magnetic encoder
Rain Collector Type ......................................................... Tipping spoon, 0.01" per tip (0.2 mm with metric rain cartridge, Part
Temperature Sensor Type ................................................ PN Junction Silicon Diode
Relative Humidity Sensor Type ......................................... Film capacitor element
Housing Material ............................................................... UV-resistant ABS & ASA plastic
ISS Dimensions ................................................................ 12.95" x 5.75" x 13.40" (329 mm x 146 mm x 340 mm)
Package weight: ............................................................... 5.44 lbs (2.47 kg)
C o n s o l e S p e c i f i c a t i o n s
Console Operating Temperature ....................................... +32° to +140°F (0° to +60°C)
Non-Operating (Storage) Temperature .............................. +14° to +158°F (-10° or +70°C)
Console Current Draw ...................................................... 0.9 mA average, 30 mA peak,
Power Adapter .................................................................. 5 VDC, 300 mA
Battery Backup ................................................................ 3 C-cells
Battery Life (no AC power) ............................................... Up to 9 months (approximately)
Housing Material ............................................................... UV-resistant ABS plastic
Console Display Type ....................................................... LCD Transflective
Display Backlight .............................................................. LEDs
Dimensions:
Console (with antenna) .................................................... 7.5" x 5.75" x 4.5" (190 mm x 146 mm x 114 mm)
Console (with antenna) mounted on wall ........................... 7.5" x 7.0 " x 3.0" (190 mm x 178 mm x 76 mm)
Display.............................................................................. 4.13" x 3.0" (105 mm x 76 mm)
Weight (with batteries) ............................................... 1.48 lbs. (.67 kg)
charging
2
No. 7345.319), 18.0 in
(116 cm
(add 120 mA for display lamps, add 0.125 mA for each transmitter
station received by console) at 4.4 VDC
®
( 510 ) 732-9229
FAX ( 510 ) 670-0589
6250
6351
VANTAGE VUE
2
) collection area
3465 Diablo Ave., Hayward, CA 94545-2778 USA
3465 Diablo Ave., Hayward, CA 94545-2778
sales@davisnet.com
www.davisnet.com
DS6250_63576351, (Rev G, 10/4/13)
6357
®
