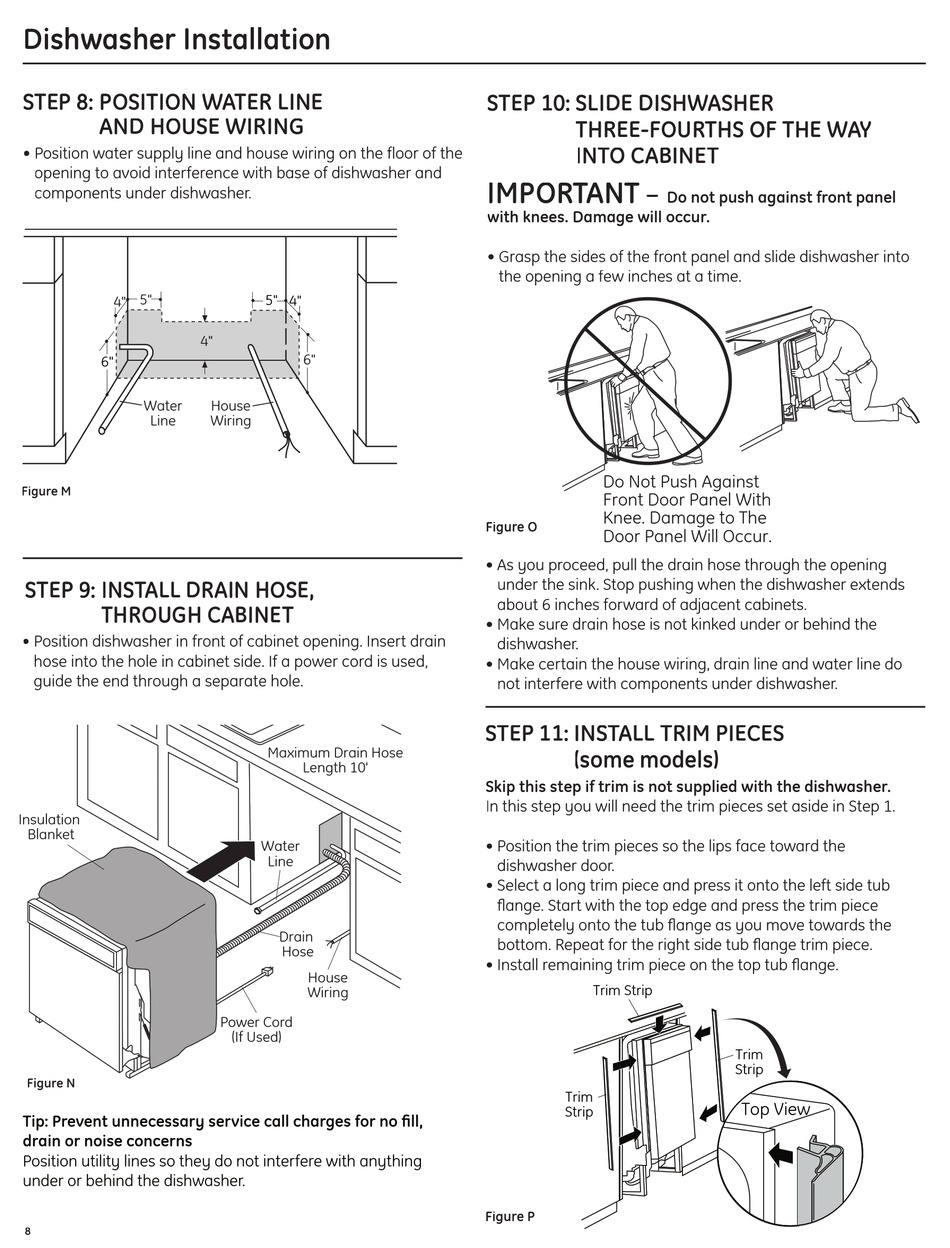

Dishwasher Installation
STEP 8: POSITION WATER LINE
AND HOUSE WIRING
• Position water supply line and house wiring on the floor of the
opening to avoid interference with base of dishwasher and
components under dishwasher.
5"
4"
6"
Water
Line
Figure M
STEP 9: INSTALL DRAIN HOSE,
THROUGH CABINET
• Position dishwasher in front of cabinet opening. Insert drain
hose into the hole in cabinet side. If a power cord is used,
guide the end through a separate hole.
661Dia32
Insulation
Blanket
Figure N
Tip: Prevent unnecessary service call charges for no fi ll,
drain or noise concerns
Position utility lines so they do not interfere with anything
under or behind the dishwasher.
8
212Dia9
5"
4"
4"
6"
House
Wiring
Maximum Drain Hose
Length 10'
Water
Line
Drain
Hose
House
Wiring
Power Cord
(If Used)
STEP 10: SLIDE DISHWASHER
THREE-FOURTHS OF THE WAY
INTO CABINET
IMPORTANT
with knees. Damage will occur.
• Grasp the sides of the front panel and slide dishwasher into
the opening a few inches at a time.
�������������������
���������������������
�������������������
Figure O
������������������������
• As you proceed, pull the drain hose through the opening
under the sink. Stop pushing when the dishwasher extends
about 6 inches forward of adjacent cabinets.
• Make sure drain hose is not kinked under or behind the
dishwasher.
• Make certain the house wiring, drain line and water line do
not interfere with components under dishwasher.
STEP 11: INSTALL TRIM PIECES
(some models)
Skip this step if trim is not supplied with the dishwasher.
In this step you will need the trim pieces set aside in Step 1.
• Position the trim pieces so the lips face toward the
dishwasher door.
• Select a long trim piece and press it onto the left side tub
fl ange. Start with the top edge and press the trim piece
completely onto the tub fl ange as you move towards the
bottom. Repeat for the right side tub fl ange trim piece.
• Install remaining trim piece on the top tub fl ange.
����������
����
�����
Figure P
Do not push against front panel
���������
����
�����
��������
