GLD5600/60N
GE
Tall Tub Built-In Dishwasher
®

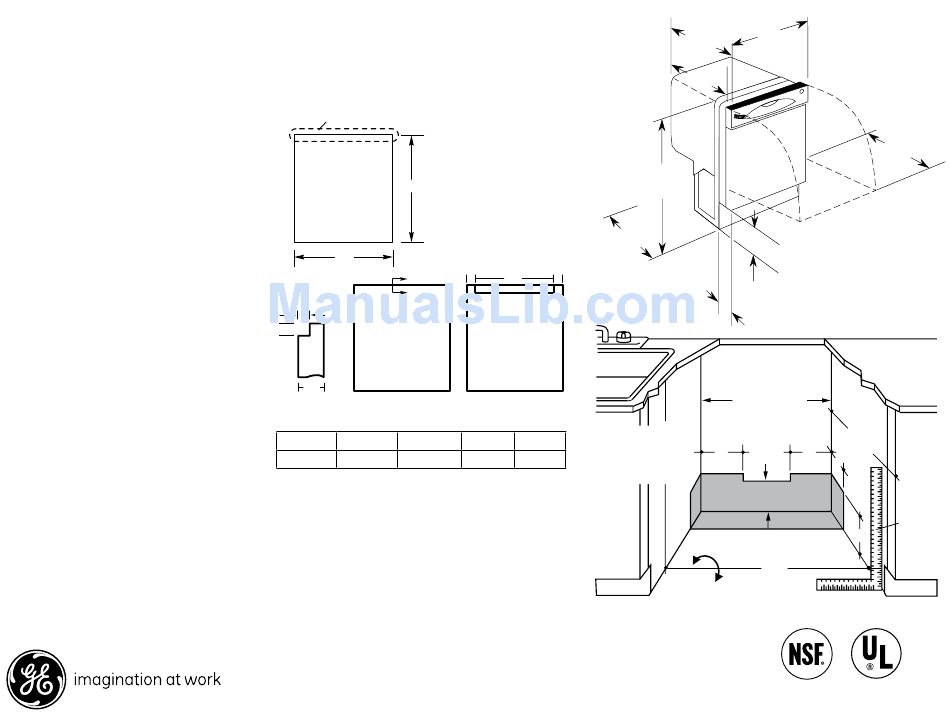

Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz.....................................................................
Total connected load amperage............. 10
Calrod® heater watts max........................ 875
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Note: The rough cabinet opening must be at
least 24" deep, 24" wide and approximately
34-1/2" high from floor to underside of
the countertop. Dishwasher must not be
installed more than 10 feet from sink for
proper drainage. All plumbing and
electrical work must be in accordance
with local codes. The power cord and
connections must comply with the National
Electrical Code Section 422 and/or local
codes and ordinances. The cord must be no
longer than 6 ft. from the junction box to
the receptacle.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram,
GE Profile
®
GE
appliance questions, visit our website at
®
ge.com or call GE Answer Center
®
800.626.2000.
See Detail E for 3/4" Panel
60
Door insert
Detail E for 3/4 panel only
B
Section E-F
C
3/8
3/4
Kit
GPF525
25-1/4"
GPF575
25-1/2"
or
service,
A
1-7/8
1-7/8
F
20
F
Front View
Back View
Panel
Thickness
A
B
C
23-1/2"
N/A
1/4"
23-5/8"
1/4"
3/4"
25
MAX.
22
33-3/4" MIN.
adj. to 35"
20-1/2
4 (Adjustable)
4
This Wall Area
must be Free
of Pipes or
wires
34-1/2"
Underside of
5"
Countertop
to Floor
Plumbing and Electric Service
Must Enter Inside This Area
Figure A
Floor MUST be Even
With Room Floor
Specification Reivsed 6/07
24
27-1/2
24"
Min.
5"
4"
4"
Cabinets
Square
6"
and
Plumb
24"
Min.
Listed by
Underwriters
Laboratories
350235
