WorkCentre
7346
®
pr in t
copy
s c an
f a x
email
WorkCentre
7346
®
Evaluator Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WorkCentre 7346 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Xerox WorkCentre 7346

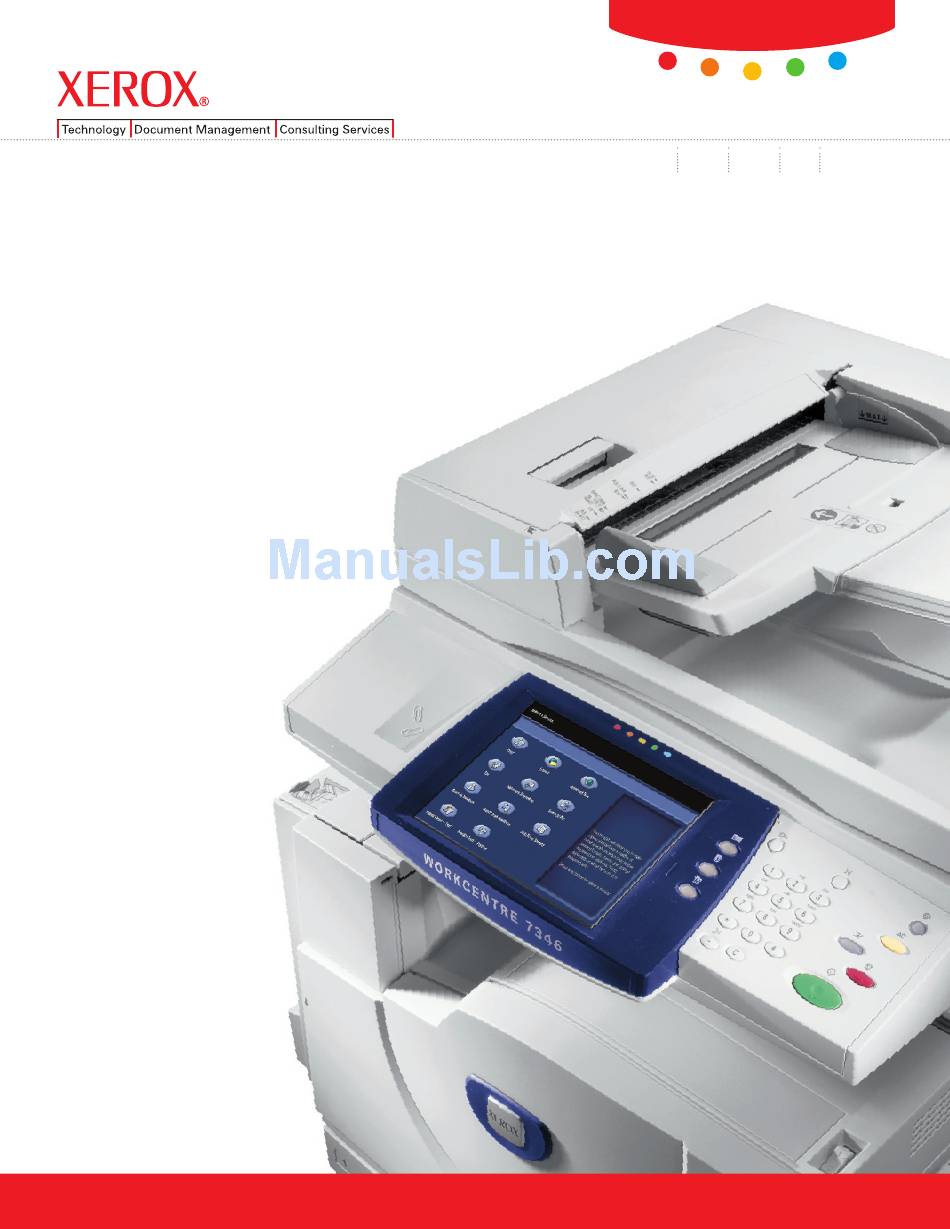

  • Page 1 WorkCentre 7346 ® pr in t copy s c an f a x email WorkCentre 7346 ® Evaluator Guide...
  • Page 2: Table Of Contents

    7346 color multifunction printer, ® and aid you in your evaluation process. CONTENTS Section 1 — Introducing the WorkCentre 7346 Color Multifunction Printer Product Overview ....................1 Specifications ....................... 2 Section 2 — Evaluating Color Multifunction Printers Overview ....................... 4 Evaluate Productivity ....................
  • Page 3: Section 1 - Introducing The Workcentre 7346 Color Multifunction Printer

    SECTION 1 Introducing the WorkCentre 7346 Color Multifunction Printer PrOduCT OvErvIEW W ith the WorkCentre 7346 multifunction printer, Xerox makes it easier to benefit from a high-performance black- and-white MFP, plus all the competitive advantages of cost-effective color when you need them. unleash your office performance F ast, powerful and engineered to easily perform multiple tasks for workgroups of any size, the WorkCentre 7346 multifunction printer boosts productivity and delivers spectacular results. • P rint and copy speeds up to 45 ppm black-and-white and 40 ppm color, with overall productivity that makes fast work of your office application workloads. • X erox multitasking network controller handles multiple tasks concurrently, enabling you to program jobs while others print and minimizing employee delays at the front panel. • T he 50-image-per-minute (ipm) black-and-white and 45 ipm color duplex automatic document feeder (DADF) quickly processes single- or double-sided originals when copying, scanning and faxing. • A large, color touch-screen interface eases print job programming: Common features are prominently displayed, and users have intuitive access to more advanced features. • T he WorkCentre 7346 multifunction printer is always ready with a fast warm-up time and a quick first-page-out time.
  • Page 4: Specifications

    WOrKCENTrE 7346 SPECIFICATIONS Controller STANdArd FEATurES • Processor — 667 MHz The WorkCentre 7346 multifunction printer delivers standard • Memory — 1.5 GB black-and-white and color copying and network printing. • Hard Drive — 40 GB (minimum) Copy and Print Features •...
  • Page 5: Optional Features

    OPTIONAl FEATurES Finishing Options • Office Finisher — Choose among these options to upgrade your • 1,000-sheet stacking WorkCentre 7346 multifunction printer into an advanced MFP. • 50-sheet multiposition stapling Fax Features • Advanced Office Finisher — • Fax Speed — 33.6 Kbps fax modem •...
  • Page 6: Section 2 - Evaluating Color Multifunction Printers

    Ease of use and Management Does the MFP include tools and features to lighten the load for your IT staff? reliability Is the MFP robust enough to meet your needs and backed by quality service? versatility Can the MFP be customized to meet your specific needs? Security Does the MFP help keep your confidential information private? Cost Control Can you monitor and control your organization’s cost of printing? M FPs often look the same from the outside. Judging from a quick glance at features and performance specifications, you might conclude that MFPs are largely equal. This section of the Evaluator Guide suggests ways you can more thoroughly evaluate MFPs — you’ll soon learn that the WorkCentre 7346 multifunction printer will exceed all your requirements. W O R KC E N T R E 7 346 EVA lUATOR GUIDE...
  • Page 7: Evaluate Productivity

    EVALUATE PRODUCTIVITY In addition to actual print engine speed, consider the things that affect overall throughput. Are the scanning and faxing features powerful enough to support your busy departments? What is the warm-up wait time? Is the device appropriately sized for the entire workgroup? Can features be used at the same time, or are employees forced to wait for the device to become “free”? Is the system designed to minimize network traffic? Can you monitor the device functions from your desktop and/or at the device? hOW ThE WOrKCENTrE 7346 MFP EXCEEdS ThE PrOduCTIvITY rEQuIrEMENT: PrOduCTIvITY T he productivity of the WorkCentre 7346 multifunction printer delivers output speeds of up to 45 ppm black-and-white/40 ppm color. Document scanning speed is notable as well, with a 75-sheet duplex automatic document feeder (DADF) that scans single- and double-sided documents at 50 ipm black-and-white and 45 ipm color. With a black-and-white first-page-out time as fast as 4.8 seconds and a color first-page-out time as fast as 6.7 seconds, you won’t have to wait long for your copy jobs either. The WorkCentre 7346 multifunction printer also features fast warm-up times of 30 seconds from low power mode and 45 seconds from cold start. NETWOrK PErFOrMANCE P erformance isn’t limited to raw document feeds and speeds. The WorkCentre 7346 multifunction printer’s network controller utilizes a 667 MHz processor with 1.5 GB of memory and a minimum...
  • Page 8: Evaluate Installation And Deployment

    Whether at the device or from your desktop, you can manage documents and jobs through an inte- grated job queue with a few mouse-clicks or button pushes. EVALUATE INSTALLATION AND DEPLOYMENT Installing and deploying a fleet of copier/printers and multifunction printers throughout your organization is a potentially time-consuming, complicated process. This is not limited to physically placing the units in your environment; it is really about how these systems will integrate into your existing network infra- structure. You also need to consider the process required to deploy printing and scanning services to your users, and how automated that process can be. hOW ThE WOrKCENTrE 7346 MFP EXCEEdS ThE INSTAllATION ANd dEPlOYMENT rEQuIrEMENTS: INSTAllATION W hen you choose Xerox, you can rest assured that your equipment will be delivered and installed to your specifications and expectations. All network-enabled configurations include a 10/100Base-TX Ethernet connection with features including automatic IP addressing, device naming, and Ethernet speed sensing to provide simple and automatic network installation. Management and system setup can be accomplished through a variety of means, including easy, wizard-based processes found within Xerox CentreWare Web. Features like cloning enable multiple-device installation onto ®...
  • Page 9: Evaluate Ease Of Use And Management

    EVALUATE EASE OF USE AND MANAGEMENT Look for fully integrated functions that work together to create more value than the sum of their parts. Are the functions easy to learn? Is the user interface consistent from function to function? Do the network features give you full access to the power of your network? Does the device include additional software to take full advantage of your digital documents? Is the device easy for your IT organization to manage as part of its infrastructure? hOW ThE WOrKCENTrE 7346 MFP EXCEEdS ThE EASE-OF-uSE rEQuIrEMENT: FrONT PANEl uSEr INTErFACE I t doesn’t matter if your job is simple or complex — the front panel user interface (UI) is easy to learn and offers quick job programming. The WorkCentre 7346 multifunction printer utilizes an 8.1-inch color touch- screen UI that enables total control of copy, scan and fax functions. The touch-screen UI is intuitively organized,...
  • Page 10: Evaluate Reliability

    ThE WOrKCENTrE 7346 MFP EXCEEdS ThE rElIAbIlITY rEQuIrEMENT: dAY-TO-dAY rElIAbIlITY R eliability comes in two forms: system reliability and image reliability. The WorkCentre 7346 multi- function printer has been designed to provide maximum system reliability and uptime: Simple paper paths and a minimum of moving parts help optimize day-to-day reliability and contribute to a monthly duty cycle of up to 150,000 pages. Any paper jams or misfeeds are cleared through access doors on the...
  • Page 11: Evaluate Versatility

    SErvICE/SuPPOrT B uilding on the reliability engineered into the WorkCentre 7346 multifunction printer, Xerox has trained and developed a sophisticated service-delivery network capable of maintaining your equipment, addressing issues you encounter, and training your IT staff and employees on how to get the most out of your Xerox equipment. EVALUATE VERSATILITY How many functions can the device perform? Does the system support the media types and capacity your employees require? Does the copier/printer offer the kinds of finishing options that can help your employees get their jobs done more efficiently? hOW ThE WOrKCENTrE 7346 MFP EXCEEdS ThE vErSATIlITY rEQuIrEMENT: COPY FEATurES T he WorkCentre 7346 multifunction printer is a reliable, workgroup-class digital MFP capable of supporting the daily copying volumes of your busy employees. Black-and-white output speeds up to 45 ppm and color output speeds up to 40 ppm give you MFP performance for your monthly copy volumes. The 75-page DADF scans two-sided originals in a single pass at speeds up to 50 ipm black- and-white and 45 ipm color, quickly processing even the longest copy jobs. A rich set of copy features enables your employees to create ready-to-distribute hard copies. Copy feature highlights include: • I D Card Copy — scans both sides of an ID card and prints it face up on a single sheet of paper • A utomatic booklet creation — create booklets by, for example, printing four letter-size pages onto tabloid-size media for folding as a four-page booklet • A utomatic tray selection — selects correct tray for specified media without requiring...
  • Page 12 The WorkCentre 7346 multifunction printer supports a variety of scan destinations, including: • S can to Email — send scanned images to email recipients, with authentication and LDAP for network security and integration • S can to Mailbox — stores scanned images on hard drive for distribution or retrieval • S can to PC — scans documents directly to a PC by selecting a PC from the local address book or by browsing the network on the front panel UI • S can to Home — sends scanned images to a preassigned “home” destination, such as an email address, FTP location or folder • N etwork Scanning — templates enable transportation of scanned images to multiple predefined locations A dditional Xerox scan software is available to expand the capabilities of your WorkCentre 7346 multifunction printer: • X erox Scan to PC Desktop — bundles Nuance PaperPort software for scanning, ® ® ® organizing and sharing images with Nuance OmniPage software, which converts ® hard-copy documents into searchable, editable electronic files • X erox SMARTsend — eases the process of editing metadata, choosing file formats,...
  • Page 13 EVALUATE VERSATILITY (CONTINUED) I n addition to a flexible set of destinations and additional software, the WorkCentre 7346 multifunc- tion printer includes a set of scan features highlighted by: TIFF • F ile formats — support for PDF, searchable PDF, PDF compression, JPEG, TIFF, JPEG multipage TIFF, and XPS ® • J ob Flow Sheets — facilitate routine workflows like expense report applications or electronic routing and storing of incoming faxes • S can resolution — up to 600 x 600 dpi • T humbnail preview (optional) — view thumbnail preview of documents stored in the mailbox FAX FEATurES T he WorkCentre 7346 multifunction printer also offers optional fax capabilities that help further consolidate office devices. This full-featured fax solution combined with the concurrency of the WorkCentre 7346 multifunction printer means you won’t need a dedicated fax machine any longer. Fax features include: • W alkup fax — traditional 33.6 Kbps phone-line faxing via front panel with one- and three-line options • N etwork server fax — allows faxes to be sent and received digitally over the network with support for SMTP and POP3 • Internet fax — transmits faxes digitally via the internet with support for SMTP and POP3 • LAN fax — transmits faxes digitally from desktop computers via print driver...
  • Page 14 EVALUATE VERSATILITY (CONTINUED) MEdIA SuPPOrT ANd CAPACITY T he WorkCentre 7346 multifunction printer gives you two paper tray options to fit your needs. For organizations that print higher volumes of oversize documents, the Three-Tray Module offers four total trays capable of handling up to 2,180 sheets of 11 x 17 in. (A3) paper. For organizations that print a higher volume of pages on letter-size (A4) paper, the High-Capacity Tandem Tray option offers paper capacity of up to 3,140 sheets. Paper capacity and media support offered by the WorkCentre 7346 multifunction printer includes: Standard Trays — • T ray 1 — 520 sheets, 5.5 x 7.2 in. (A5) to 11 x 17 in. (A3), 16 to 110 lb. bond (64 to 220 gsm) • T ray 5 (Bypass Tray) — 100 sheets, 4.13 x 5.83 in. (A6) to 12 x 18 in. (SRA3), 16 to 110 lb. bond (64 to 220 gsm) Three-Tray Module Option — • T rays 2 through 4 — 520 sheets each, 5.5 x 7.2 in. (A5) to 11 x 17 in. (A3), 16 to 110 lb. bond (64 to 220 gsm) High-Capacity Tandem Tray Option — • T ray 2 — 520 sheets, 5.5 x 7.2 in. (A5) to 11 x 17 in. (A3), 16 to 110 lb. bond (64 to 220 gsm) • Tray 3 — 870 sheets, 8.5 x 11 in. (A4), 16 to 110 lb. bond (64 to 220 gsm) • Tray 4 — 1,130 sheets, 8.5 x 11 in. (A4), 16 to 110 lb. bond (64 to 220 gsm) FINIShING FEATurES T he WorkCentre 7346 multifunction printer gives you multiple choices to ensure you get the right set of finishing features for your employees, and the documents they produce on a regular basis. When...
  • Page 15 • Fiery ColorWise offers standard-setting color tools and user fl exibility. ® • A 2.8 GHz processor and 512 MB memory deliver the power to handle even the most complex print jobs. • Command WorkStation 4.6 capability via PC or Mac, with Queue Management and Job Preview, ® makes it easy to program, monitor and manage your offi ce workfl ows. • Freeform, variable data printing capabilities enable you to customize your output to a target audience. • The Fiery RIP-and-Print utility streamlines the print-job processing workfl ow in the offi ce environment. EXPANdAbIlITY Y our Xerox multifunction printer is now more productive, and your work processes are streamlined. Menus and languages specifi c to your business or workgroup, such as “fax to accounts payable” or “submit to claims department” can appear on the touch screen of your MFP. Xerox Extensible Interface Platform, or EIP, is at the heart of this. It enables a variety of applications that extend the power of your MFP by allowing you to securely fi nd, save, print and share critical information with just a few easy steps right on your system’s touch screen. That’s Xerox, working for you. • Access and print information without the use of a computer. • Simply scan information and store it exactly where you want it. • Control costs with user-friendly accounting right from the device touch screen. • Display customized user preferences on the touch screen with the simple swipe of your ID card. • Display customized user preferences on the touch screen with the simple swipe of your ID card. • Simplify the process for complex fax distributions. • Simplify the process for complex fax distributions.
  • Page 16: Evaluate Security Capabilities

    EVALUATE SECURITY CAPABILITIES What types of security requirements are critical to your office? Does the device have the security features to meet these demands? Can device access be password protected? Does the system remove latent images on its hard drive? Does the system have features in place to protect confidential documents? hOW ThE WOrKCENTrE 7346 MFP EXCEEdS ThE SECurITY rEQuIrEMENT: INTEGrATEd SECurITY I n today’s business environment, security is a critical competency. The technology you deploy into your organization must have a complete set of capabilities to help keep your confidential information safe. The WorkCentre 7346 multifunction printer delivers security features that protect your confi- dential information at all points of document vulnerability: Document — • P assword-protected PDF — protects scanned files by establishing a PIN access code for viewers • S ecure fax — protects faxed documents by requiring a PIN access code before the received fax is printed • Secure print — holds print jobs at the MFP before they are printed Device —...
  • Page 17: Evaluate Cost Control

    EVALUATE COST CONTROL One of the most important things to consider when evaluating a device with color capabilities is to understand the cost of operation. Does the vendor provide the tools you need to control access and use of the system’s color features? Are you charged a premium for the black-and-white output you create because the system is color capable? Are the accounting tools available to help track and assign printing costs? Does the vendor offer tools and services to help you right-size your deployment? hOW ThE WOrKCENTrE 7346 MFP EXCEEdS ThE COST CONTrOl rEQuIrEMENT: ACCOuNTING CAPAbIlITIES X erox provides multiple levels of accounting capabilities to give your organization the control it needs for tracking and assigning color costs. Xerox also provides tools to control employee access to the color features of your WorkCentre 7346 multifunction printer — you have complete control of your color output costs.
  • Page 18 • A utomatic Color Print — the device detects black-and-white pages within a print job even with the output selection set to Color. The black-and-white printed pages are then printed and charged at the black-and-white rate. EVALUATE COST CONTROL (CONTINUED) ASSESSMENT OPTIONS X erox can help you decrease your overall document costs by optimizing and right-sizing your technology deployment. Three levels of assessment tools and services are available to help you deploy the right mix of equipment to best serve the needs of your environment: • LEVEL 1: Xerox Office Efficiency Calculator — A five-minute, web-based “instant analysis” offers suggestions on your technology needs by comparing information you enter on your environment against key industry metrics. • L EVEL 2: Xerox Office Productivity Advisor (XOPA) — More in-depth web-based tool assesses your specific document environment. XOPA results suggest better ways to manage page volume between printing, copying and faxing — they deliver end user satisfaction and cost efficiency. XOPA is a free service performed by your local Xerox sales representative. • L EVEL 3: Xerox Office Document Assessment (ODA) — An analytical model that measures and analyzes your current document production infrastructure, the ODA provides in-depth improvement plans for significant cost savings and increased efficiency. The ODA is a six- sigma, fee-based tool and consultative service oriented towards enterprise-level organizations. W O R KC E N T R E 7 346 EVA lUATOR GUIDE...
  • Page 19: Section 3 - Configurations, Specifications, Supplies, Support

    Internet fax, LAN fax, Fax Forward, Duplex Send and Receive, print on fax up to 11 x 17 in. / A3, Fax Build Job Scan Optional Scan to Email, Scan to PC desktop, Scan to mailbox, Scan to FTP, Thumbnail Preview, Various Xerox Business Partner Solutions, SMARTsend ® Operating Systems Windows XP/Server 2003/Vista;...
  • Page 20: Specifications

    WOrKCENTrE 7346 SPECIFICATIONS Device Xerox CentreWare Web, Xerox CentreWare IS, Xerox CentreWare for Unicenter , Tivoli Netware ® ® ® ® Microsoft Management Console, HP OpenView Management ® ® Print Drivers Microsoft Windows — XP, Server 2003, Server 2003 64-bit, Vista, Vista 64-bit ®...
  • Page 21: Supplies And Options

    WOrKCENTrE 7346 SuPPlIES ANd OPTIONS Consumables description details Part Number and Routine Black Toner Cartridge 26,000 pages 6R1175 Maintenance Items Cyan Toner Cartridge 16,000 pages 6R1176 Magenta Toner Cartridge 16,000 pages 6R1177 Yellow Toner Cartridge 16,000 pages 6R1178 Smart Kit...
  • Page 22: Support And Additional Information Sources

    SuPPOrT ANd AddITIONAl INFOrMATION SOurCES uNrIvAlEd SErvICE ANd SuPPOrT AddITIONAl INFOrMATION SOurCES Behind every Xerox product is a large network of customer support WorkCentre 7346 Multifunction Printer’s Front Panel: that’s unrivaled in the industry and available when you need it. Xerox • T he front panel offers tools and information pages to service professionals use leading-edge technologies to keep you up help with machine setup, feature selections, operational and running. They’re even linked to the engineers who designed problems, media feed and supply issues. your product, so you can be confident when you choose Xerox. And Customer documentation Contains: Genuine XEROX supplies are always readily available. ® • Installation Guide TOTAl SATISFACTION GuArANTEEd • Quick User Guide The exclusive Xerox Total Satisfaction Guarantee, recognized as • Software and Documentation CD-ROM...
  • Page 23 NOTES WO R KCE N T RE 7 3 4 6 E VAl U AT O R GU ID E...
  • Page 24 © 2010 Xerox Corporation. All rights reserved. XEROX , CentreWare , SMart Kit , SMARTsend and WorkCentre are trademarks of or licensed to Xerox Corporation. In support of Xerox environmental leadership goals, these models may contain some recycled ® ® ™ ®...
