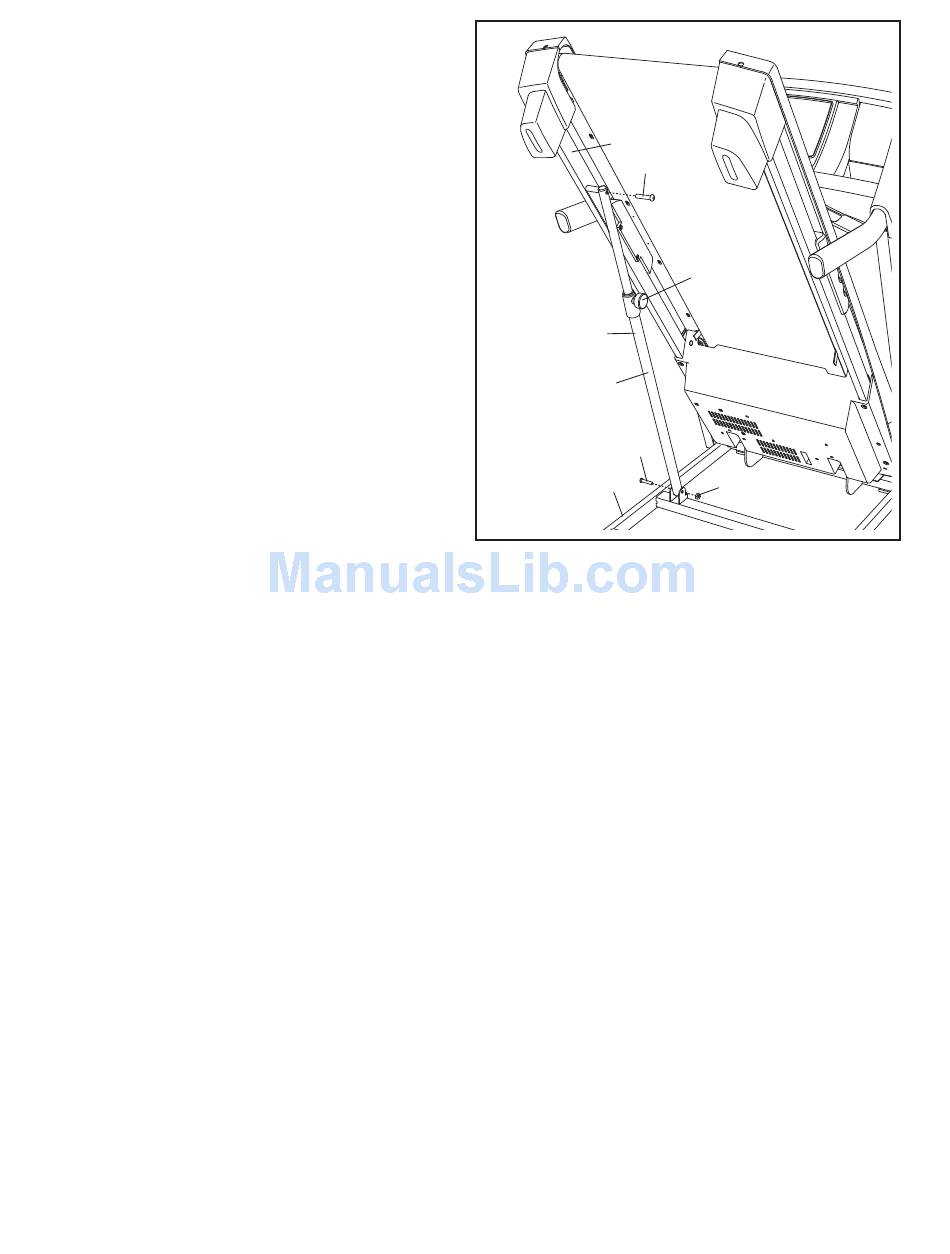

10. Raise the Frame (49) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (51) so that the large
barrel and the latch knob are oriented as shown.
Attach the lower end of the Storage Latch (51) to
the Base (80) with a 3/8" x 2" Bolt (13) and a 3/8"
Nut (3).
Attach the upper end of the Storage Latch (51)
to the Frame (49) with a 3/8" x 1 3/4" Screw (12).
Lower the Frame (not shown) (see HOW TO
LOWER THE TREADMILL FOR USE on
page 22).
11. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra parts may be included. Keep the included hex key in a secure place; the hex key is used to adjust
the walking belt (see pages 24 and 25).
