Pro-Form 510 Ex Elliptical Manual page 8

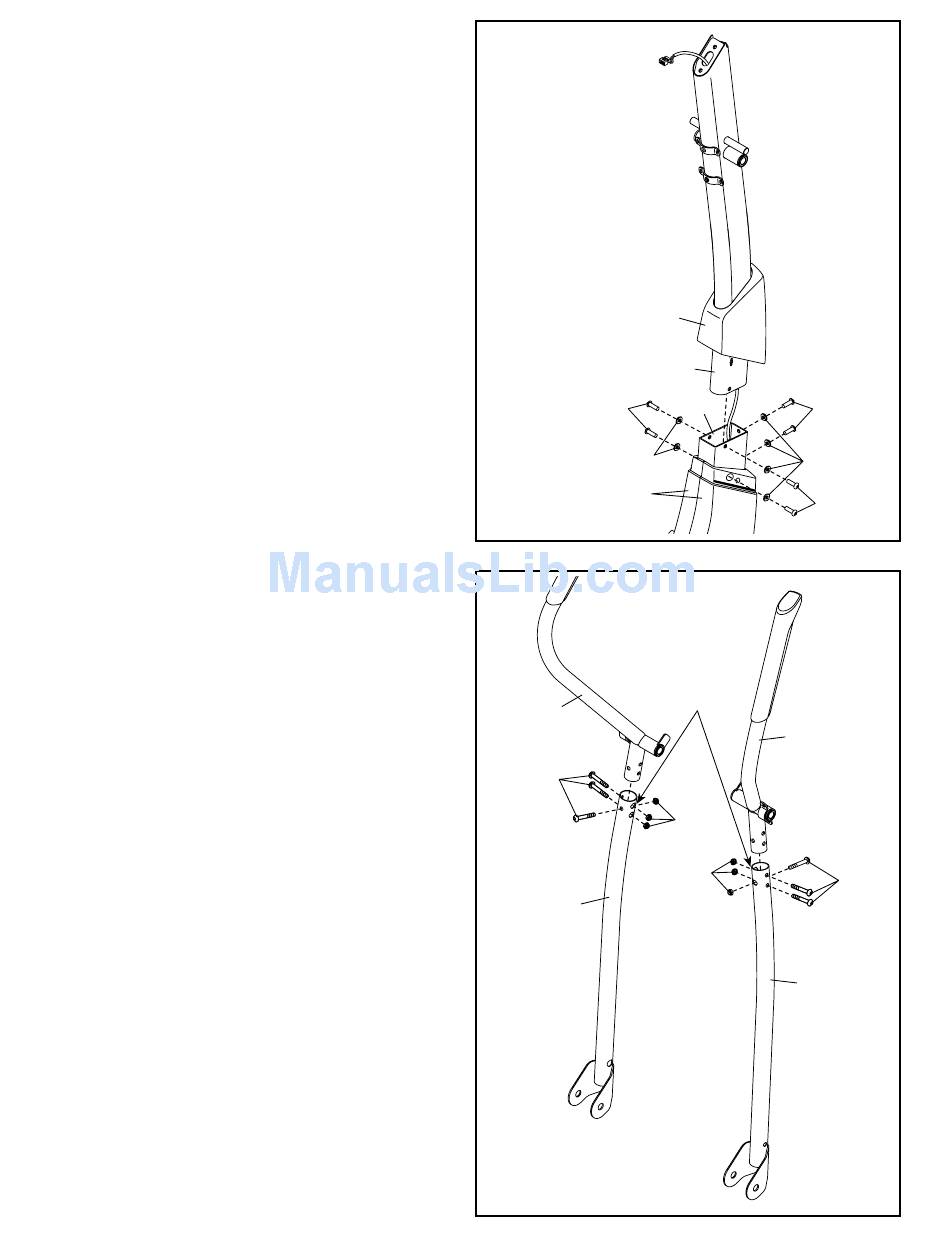

5. Tip: Avoid pinching the wires. Insert the
Upright (5) into the Frame (1).
Attach the Upright (5) with six M8 x 16mm
Screws (102) and six M8 Split Washers (131).
Do not tighten the Screws yet.
Slide the Top Cover (23) downward. Do not
press the Top Cover into the Right and Left
Frame Covers (21, 22) yet.
6. Identify the Right Upper Body Arm (8) and the
Right Upper Body Leg (6), which are marked
with “"R”" stickers, and orient them as shown.
Insert the Right Upper Body Arm (8) into the
Right Upper Body Leg (6).
Attach the Right Upper Body Arm (8) with three
M8 x 45mm Button Bolts (104) and three M8
Locknuts (105). Make sure that the Locknuts
are inside the hexagonal holes. Do not fully
tighten the Button Bolts yet.
Assemble the Left Upper Body Arm (9) and
the Left Upper Body Leg (7) in the same way.
5
Avoid pinching
the wires
102
131
21, 22
6
9
104
7
8
23
5
1 102
131
102
Hexagonal
Holes
8
105
105
6
104
