Pro-Form 510 Ex Elliptical Manual page 12

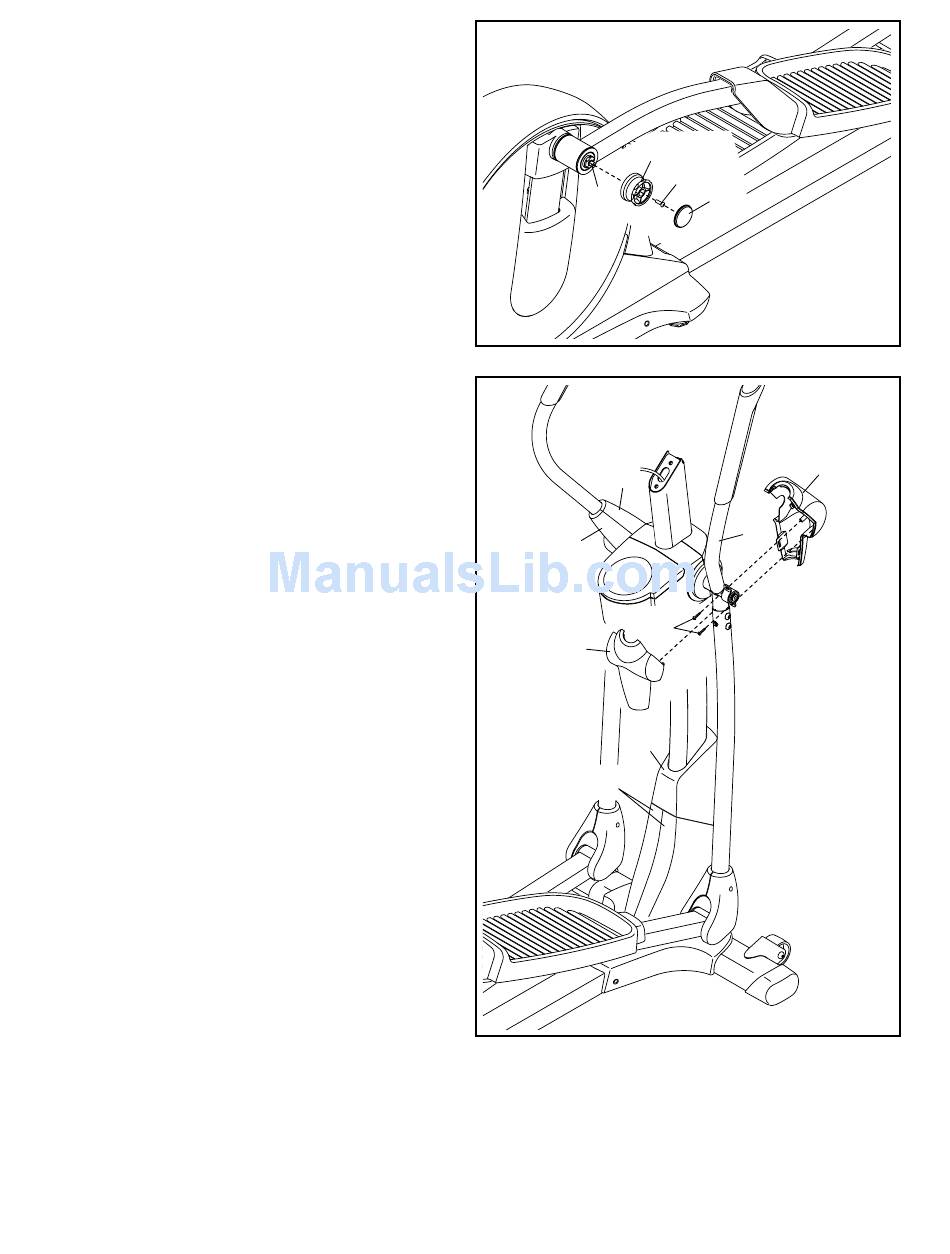

15. Remove and discard the cap (not shown) on the
right Adjustment Pin (44).
Attach an Adjustment Knob (45) to the right
Adjustment Pin (44) with an M6 x 12mm Screw
(111).
Then, press the tabs on a Knob Cap (46) into the
Adjustment Knob (45).
Repeat this step on the left side of the
elliptical.
16. See step 6. Tighten the six M8 x 45mm Button
Bolts (104).
See step 5. Tighten the six M8 x 16mm Screws
(102); tighten the two Screws on the front of
the elliptical, and then tighten the other four
Screws.
Identify the Right Rear and Front Leg Covers
(29, 30), which are marked with “"Right”" stickers.
Attach the Right Front Leg Cover (30) to the
Right Upper Body Arm (8) with two M4 x 16mm
Screws (93).
Attach the Right Rear Leg Cover (29) around the
Right Upper Body Arm (8) by pressing the tabs
on the Right Rear Leg Cover into the Right Front
Leg Cover (30).
Attach the Left Rear and Front Leg Covers
(31, 32) in the same way.
Then, slide the Top Cover (23) downward and
press it into the Right and Left Frame Covers
(21, 22).
15
44
16
32
31
29
23
21, 22
12
45
111
46
30
8
93
