ProForm 400 H Elliptical User Manual page 11

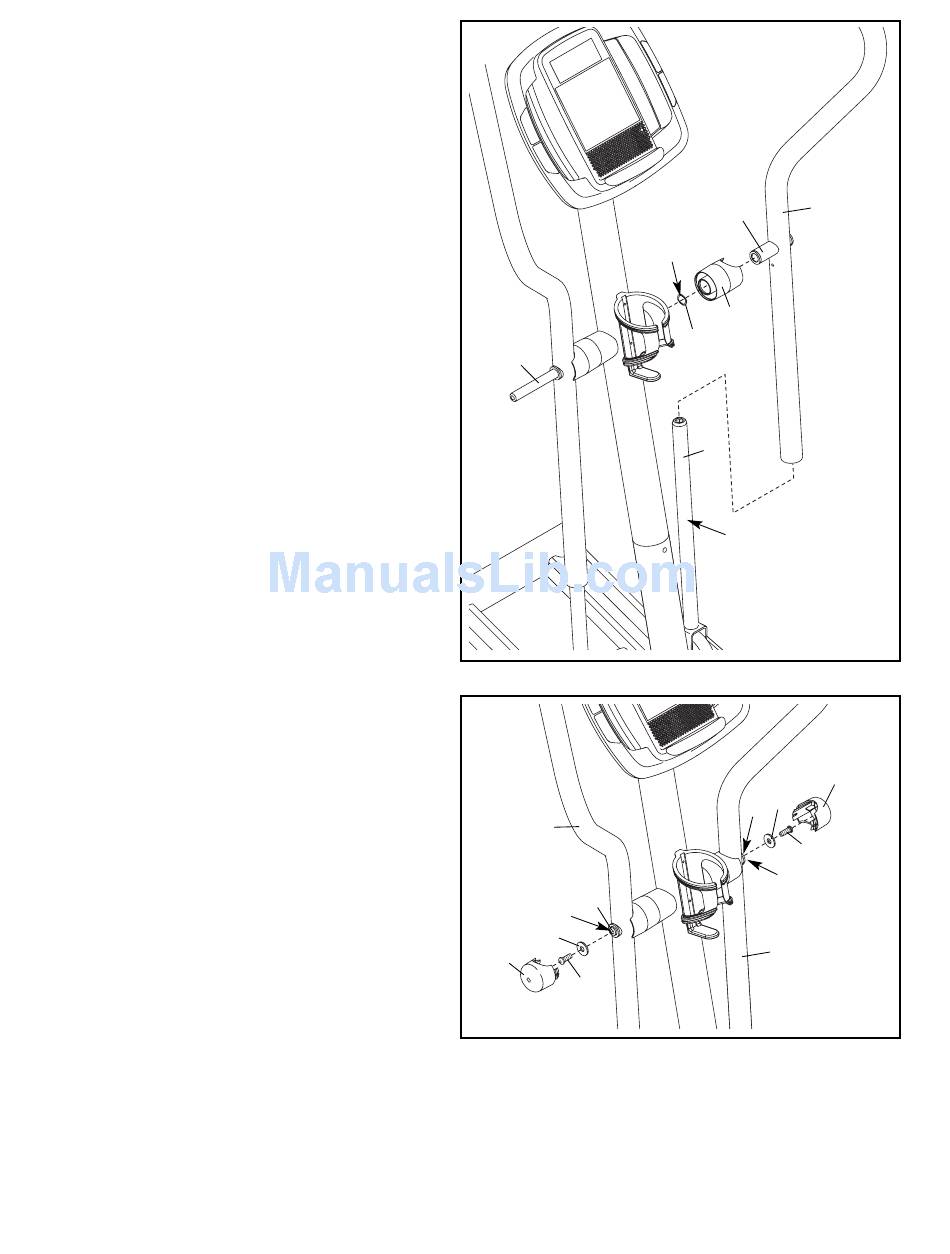

11. Orient the Right Upper Body Arm (5) so that
the indicated tube is facing inward. Lubricate
the upper end of the right Upper Body Leg (6)
with high-temperature lubricant. Then, slide
the Right Upper Body Arm onto the Upper
Body Leg.
Apply a small amount of grease to a Wave
Washer (27). Then, insert the Pivot Axle (16)
through the Wave Washer, the remaining
Upper Body Spacer (29), and the Right Upper
Body Arm (5).
12. Apply a small amount of grease to each end
of the Pivot Axle (16). Slide an M8 Large
Washer (81) onto an M8 x 25mm Patch Screw
(70), and tighten the Patch Screw into the left
end of the Pivot Axle. Then, press a Pivot
Cover (14) against the Left Upper Body Arm
(4).
Repeat this step on the right side of the
elliptical exerciser.
13. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the ellip-
tical exerciser.
11
Grease
16
12
4
16
Grease
81
14
70
11
5
Tube
29
27
6
Lubricate
14
81
16
70
Grease
5
