Page 1: Fast Ethernet

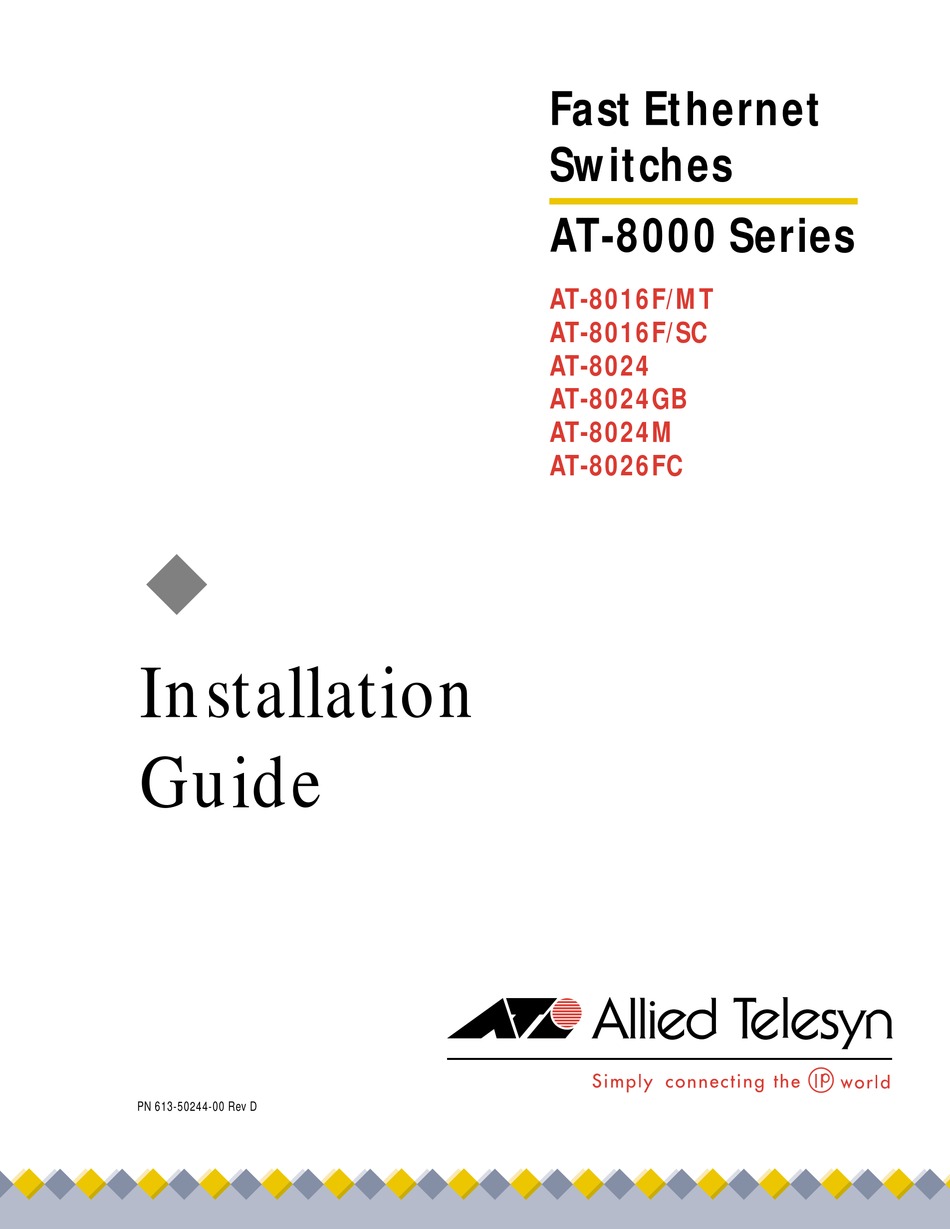

Fast Ethernet Switches ® AT-8000 Series AT-8016F/MT AT-8016F/SC AT-8024 AT-8024GB AT-8024M AT-8026FC Installation Guide PN 613-50244-00 Rev D... - Page 2 Copyright 2002 Allied Telesyn, Inc. 960 Stewart Drive Suite B, Sunnyvale, CA 94085 USA All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesyn, Inc. All other product names, company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective owners.
-
Page 3: Table Of Contents
Table of Contents Preface ............................................7 How This Guide is Organized ..................................... 7 Document Conventions ...................................... 8 Where to Find Web-based Guides ................................... 9 Contacting Allied Telesyn Technical Support ............................10 Online Support......................................10 Telephone Support..................................... 10 Management Software Updates ..................................11 For Sales or Corporate Information ................................12 Chapter 1 Product Description ......................................13... - Page 4 Table of Contents A Few Basics to Ethernet Switching ................................43 MAC Address Table ....................................43 Duplex Mode........................................ 44 Store and Forward...................................... 44 Backpressure and Flow Control................................44 Network Topologies ......................................46 Power Workgroup Topology .................................. 46 Collapsed Backbone - Hub Topology..............................47 Mixed Topology ......................................
- Page 5 SC Type Connector ..................................... 88 HSSDC Connector......................................88 AT-8016F Series and AT-8026FC Fiber Optic Port Specifications ....................89 Appendix B Default Switch Settings ....................................90 Appendix C Translated Electrical Safety and Emission Information ........................92...
- Page 6 Electrical Safety and Emission Statement Standards: This product meets the following standards. U.S. Federal Communications Commission RADIATED ENERGY Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules.
-
Page 7: Preface
Preface This guide contains the hardware installation instructions for your new AT-8000 Series Fast Ethernet Switch. How This Guide is Organized This manual contains the following chapters and appendices: Chapter 1, Product Description, describes the features and components of the switch. Chapter 2, Installation, contains the installation instructions. -
Page 8: Document Conventions
Preface Document Conventions This document uses the following conventions to highlight important information: Note Notes provide additional information. Warning Warnings inform you that performing or omitting a specific action may result in bodily injury. Caution Cautions inform you that performing or omitting a specific action may result in equipment damage or loss of data. -
Page 9: Where To Find Web-Based Guides
AT-8000 Series Fast Ethernet Switches Installation Guide Where to Find Web-based Guides The installation and user guides for all Allied Telesyn products are available in Portable Document Format (PDF) from the Allied Telesyn web site at www.alliedtelesyn.com. You can view the documents online or download them onto a local workstation or server. -
Page 10: Contacting Allied Telesyn Technical Support
Preface Contacting Allied Telesyn Technical Support You can contact Allied Telesyn technical support online or by telephone. Online Support You can request technical support online by accessing the Knowledge Base from our web site at http://kb.alliedtelesyn.com. You can use the Knowledge Base to submit questions to our technical support staff and review answers to previously asked questions. -
Page 11: Management Software Updates
AT-8000 Series Fast Ethernet Switches Installation Guide Management Software Updates Allied Telesyn periodically updates the management software programs for our managed products. You can obtain a new version of a management software program from our web site at www.alliedtelesyn.com or our FTP server at ftp.alliedtelesyn.com. To use the FTP server, enter ‘anonymous’... -
Page 12: For Sales Or Corporate Information
Preface For Sales or Corporate Information You can contact Allied Telesyn for sales or corporate information at the location listed below: Allied Telesyn, Inc. 19800 North Creek Parkway, Suite 200 Bothell, WA 98011 Tel: 1 (425) 487-8880 Fax: 1 (425) 489-9191... -
Page 13: Product Description
Fast Ethernet network. The basic configuration of each model is listed in Table 1. Table 1 Basic System Configurations Model Configuration AT-8016F/MT 16 fiber optic ports and two expansion module slots AT-8016F/SC 16 fiber optic ports and two expansion module slots AT-8024... -
Page 14: Common Features
Product Description Common Features Features common to the AT-8000 Series Switches include: # 16 100Base-FX or 24 10Base-T/100Base-TX ports, depending on the model # Enhanced stacking # System and port LEDs # RS-232 port for out-of-band management # AT-S39 management software for local and remote management # Port trunking # Port mirroring # Port security... -
Page 15: Front Panel Components
L /A L /A L /A L /A L /A MASTER Expansion Module Slots 100Base-FX Ports RS-232 Terminal Port Figure 1 AT-8016F/MT Front Panel System Port LEDs LEDs PORT ACTIVITY LINK / ACTIVITY FULL DUP HALF DUP/ L /A L /A... - Page 16 Product Description System LED Mode LEDs Select Button AT-8024GB RS-232 TERMINAL PORT CLASS 1 LASER PRODUCT 10Base-T / 100Base-TX Fast Ethernet Switch DO NOT STARE INTO BEAM MODE PORT A PORT B Link FAULT Mode LINK LINK MASTER Link FULL Mode MODE MODE...
-
Page 17: Back Panels
AT-8000 Series Fast Ethernet Switches Installation Guide Back Panels Figure 8 illustrates the back panel of the AT-8016F/MT and AT-8024F/SC Switches. AC Power Connector Connector Figure 7 Back Panel of the AT-8016F/MT and AT-8016F/SC Switches Figure 8 illustrates the back panel of the AT-8024, AT-8024GB, and AT-8026FC Switches. -
Page 18: Hardware Features
Type of Connector - The sixteen fiber optic ports on the AT-8016F/SC switch and the two fiber optic ports on the AT-8026FC switch have dual SC connectors. The fiber optic ports on the AT-8016F/MT uses MT-RJ connectors. Speed - The ports have a fixed operating speed of 100 megabits per second (Mbps). -
Page 19: Twisted Pair Ports
AT-8000 Series Fast Ethernet Switches Installation Guide Maximum Distance - Each fiber optic port has a maximum operating distance of 2 kilometers (1.25 miles) when operating in full-duplex mode and 412 meters (1,360 feet) when operating in half-duplex mode. Type of Cabling - The ports can use either 50/125 or 62.5/125 micron multimode fiber optic cable. - Page 20 Product Description If desired, Auto-Negotiation on one or all of the switch ports can be disabled so that you can set the duplex mode manually through the switch’s management software. Maximum Distance - Each twisted pair port has a maximum operating distance of 100 m (328 ft.).
-
Page 21: Gigabit Interface Converter (Gbic) Expansion Slots
AT-8000 Series Fast Ethernet Switches Installation Guide Gigabit System Interface # AT-8024GB Switch Converter Description (GBIC) Expansion Slots The AT-8024GB Fast Ethernet Switch has two expansion slots on the front panel, labelled Port A and Port B, which correspond to Ports 25 and 26, respectfully. -
Page 22: Module Expansion Slots
Systems Expansion Slots # AT-8024M # AT-8016F/SC # AT-8016F/MT Description There are two expansion slots on the front panel of these switches. Each can accommodate an expansion module. You can use the slots to add 100Base and 1000Base fiber optic and twisted pair ports to the switch. - Page 23 AT-8000 Series Fast Ethernet Switches Installation Guide Table 2 describes the port LEDs. Table 2 Twisted Pair Port LEDs State Description LINK Indicates that there is no link between the port and the end node. Solid Green Indicates a valid link has been established between the port and the end node.
-
Page 24: Fiber Optic Port Leds
# AT-8024GB (GBIC slots) # AT-8026FC Description The fiber optic ports on the AT-8016F/MT and AT-8016F/SC Switches have two LEDs, labeled L/A and D/C. The LEDs are defined in Table 3. Table 3 AT-8016F/MT and AT-8016F/SC Fiber Optic Port LEDs... - Page 25 AT-8000 Series Fast Ethernet Switches Installation Guide Next to each GBIC slot on the AT-8024GB Switch and fiber optic port on the AT-8026FC Switch are two LEDs. The LEDs display the operating status of the fiber optic port. Use the Mode Select Button on the switch to toggle the status information displayed by the MODE LED.
-
Page 26: System Leds
Product Description System LEDs Systems # All models Description The system LEDs on the front panel display general status information about the entire switch and are defined in Table 5. Table 5 System LEDs State Description Fault Indicates normal operation. Solid Red Indicates that the switch or management software has malfunctioned. -
Page 27: Terminal Port
AT-8000 Series Fast Ethernet Switches Installation Guide RS-232 Systems Terminal Port # All models Description The RS-232 Terminal Port is used to establish a local (out-of-band) management session with the switch and to configure the switch’s operating parameters. To establish a local management session, you connect either a VT100 terminal or a personal computer with a terminal emulation program to the port. -
Page 28: Reset Button
# AT-8024GB # AT-8024M # AT-8026FC Note The AT-8016F/MT and AT-8016F/SC Switches do not have a Reset button. You can reset these systems through the AT-S39 management software or by power cycling the unit by disconnecting and reconnecting the power cord. -
Page 29: Rps Connector
RPS Connector Systems # AT-8024M # AT-8016F/SC # AT-8016F/MT Description The RPS connector on the back panel of the switch connects to the optional AT-RPS3004 redundant power supply unit, shown in Figure 11. The unit can provide power to the switch in the event the switch’s internal power supply should fail. -
Page 30: Ac Power Connector
Product Description AC Power Systems Connector # All models Description The switch has a single AC power supply socket on the back panel, which has autoswitch AC inputs. Refer to Appendix A, Technical Specifications, for the input voltage range. To power ON or OFF the switch, you connect or disconnect the power cord. -
Page 31: Software Features
AT-8000 Series Fast Ethernet Switches Installation Guide Software Features The following sections describe these software features: # AT-S39 Management Software # Enhanced Stacking # Spanning Tree Protocol (STP) # Tagged and Port-based Virtual LANs (VLANs) # Basic VLAN Mode # Quality of Service # BOOTP and Dynamic Host Configuration Protocol (DHCP) # Port Mirroring # Port Trunking... - Page 32 Product Description You can access the switch’s management software four ways: # RS-232 Terminal Port # Web Browser # Telnet Application Protocol # SNMP management program RS-232 Terminal Port One method for accessing the management software is by connecting a terminal or a PC with a terminal emulation program to the RS-232 Terminal Port on the switch.
- Page 33 AT-8000 Series Fast Ethernet Switches Installation Guide Web-browser You can also manage the switch from a workstation on your network using a web browser, such as Netscape Navigator. This is referred to as remote or in-band management. To start a web browser management session, you simply enter the switch’s IP address in the URL field of the web browser, as shown in Figure 14.
- Page 34 Product Description Telnet Application Protocol The Telnet application protocol offers another way for you to remotely manage a switch from a workstation on your network. Starting this type of remote access requires that you specify the IP address of the switch in the Telnet protocol.
-
Page 35: Enhanced Stacking
AT-8000 Series Fast Ethernet Switches Installation Guide Enhanced This feature is designed to simplify network management. You can use the feature to manage all the AT-8000 Series Fast Ethernet Switches that Stacking reside in a subnet on your network from just one management session. Before the advent of enhanced stacking, managing a switch meant that you had to establish a separate management session with it. - Page 36 Product Description # For purposes of redundancy, it is probably a good idea to assign IP addresses to two switches in each subnet. In this way, should you need to remove one switch with an IP address from a subnet, such as for maintenance, the second switch will still be available for you to remotely manage your Fast Ethernet switches.
-
Page 37: Spanning Tree Protocol (Stp)
AT-8000 Series Fast Ethernet Switches Installation Guide Spanning Tree The AT-8000 Series Fast Ethernet Switches are IEEE 802.1D standard- compliant and support the spanning tree protocol. STP can be an Protocol (STP) important part of large networks where loops exist in the network topology. -
Page 38: Tagged And Port-Based Vlans
Product Description Tagged and A VLAN is a group of end nodes that form an independent subnetwork. Each VLAN constitutes a separate broadcast domain, where the frames Port-based of a VLAN are not allowed to cross the VLAN boundary. VLANs VLANs can be extremely useful in improving network performance and increasing network security. -
Page 39: Quality Of Service (Qos)
AT-8000 Series Fast Ethernet Switches Installation Guide Quality of The AT-8000 Series Fast Ethernet Switches support the IEEE 802.1p standard and Quality of Service. QoS can be important in network Service (QOS) environments where there are time-critical applications, such as voice transmission or video conferencing, that can be adversely affected by packet transfer delays. -
Page 40: Port Mirroring
Product Description Port Mirroring The port mirroring feature allows you to unobtrusively monitor the traffic being received and transmitted on a port on a switch by having the traffic copied to another switch port. You can connect a network analyzer to the port functioning as the mirror port to monitor the traffic without impacting network performance or speed. - Page 41 AT-8000 Series Fast Ethernet Switches Installation Guide You can create a port trunk of the GBIC modules installed in the Port A and Port B slots of an AT-8024GB Switch, provided that the GBIC modules are of the same medium type. You can create a port trunk using the two fiber optic ports in an AT-8026FC Switch.
-
Page 42: Port Security
Product Description Port Security The AT-8000 Series Fast Ethernet Switches have three levels of port security: Limited, Secure, and Lock All Ports. You can use the port security levels to enhance the security to your network. The security levels are briefly described below. For further information and instructions on activating a security level, refer to the AT-S39 Management Software User’s Guide. -
Page 43: A Few Basics To Ethernet Switching
AT-8000 Series Fast Ethernet Switches Installation Guide A Few Basics to Ethernet Switching An Ethernet switch interconnects network devices, such as workstations, printers, routers, and other Ethernet switches, so that they can communicate with each other by sending and receiving Ethernet frames. -
Page 44: Duplex Mode
Product Description Duplex Mode Duplex mode refers to how an end node receives and transmits data. If an end node can receive or transmit data, but not both simultaneously, the end node is operating in what is referred to as half-duplex mode. If an end node can both receive and transmit data simultaneously, the node is said to be operating in full-duplex mode. - Page 45 AT-8000 Series Fast Ethernet Switches Installation Guide How a switch signals an end node to stop transmitting data differs depending on the speed and duplex mode of the end node and switch port. A twisted pair port operating at 100 Mbps port and half-duplex mode stops an end node from transmitting data by forcing a collision.
-
Page 46: Network Topologies
Product Description Network Topologies This section illustrates several of the network topologies you can create with the AT-8000 Series Fast Ethernet Switches. Power The topology shown in Figure 18 is commonly referred to as a power workgroup topology. Each workstation or node is connected directly to Workgroup a port on an AT-8024 Fast Ethernet Switch. -
Page 47: Collapsed Backbone - Hub Topology
AT-8000 Series Fast Ethernet Switches Installation Guide Collapsed In the topology illustrated in Figure 19, an AT-8024 connects together 10/100 Mbps Ethernet hubs. This type of topology is often referred to as Backbone - Hub a collapsed backbone topology. The switch functions as the focal point Topology of the network by acting as a bridge between the different workgroups. -
Page 48: Mixed Topology
Product Description Mixed Topology You can always combine topologies as well as build a larger network by connecting different switches together. If the switches are within 100 meters of each other, you can use the twisted pair ports. If the switches are further apart, then you will need to use fiber optic ports. -
Page 49: Collapsed Backbone - Switch Topology
AT-8000 Series Fast Ethernet Switches Installation Guide Collapsed If you need to connect together multiple switches and the switches are physically separated by more than 2 kilometers, or if you want to build a Backbone - 1000 Mbps backbone network between switches, you can use Switch AT-8024GB Fast Ethernet Switches and install fiber optic GBIC modules. -
Page 50: Chapter 2 Installation
Chapter 2 Installation This chapter contains the installation procedures for the switch. The chapter contains the following sections: # Reviewing Safety Precautions on page 51 # Selecting a Site for the Switch on page 52 # Planning the Installation on page 53 # Unpacking the Switch on page 55 # Installing the Switch in a Rack on page 56 # Installing an Optional GBIC Module on page 58... -
Page 51: Reviewing Safety Precautions
AT-8000 Series Fast Ethernet Switches Installation Guide Reviewing Safety Precautions Please review the following safety precautions before you begin to install the switch or any of its components. Refer to Appendix C for translated safety statements in your language. (The laser warnings apply only to Fast Ethernet switches that have a fiber optic port.) Laser Class 1 laser product. -
Page 52: Selecting A Site For The Switch
Installation Selecting a Site for the Switch Observe the following requirements when choosing a site for your switch: # If you plan to install the switch in an equipment rack, check to be sure that the rack is safely secured and that it will not tip over. Devices in a rack should be installed starting at the bottom, with the heavier devices near the bottom of the rack. -
Page 53: Planning The Installation
AT-8000 Series Fast Ethernet Switches Installation Guide Planning the Installation Table 6 contains the cabling specifications for the twisted pair ports. Table 6 Twisted Pair Cabling and Distances Maximum Model Speed Type of Cable Distance AT-8024, 10 Mbps Category 3 or 100 m (328 ft.) AT-8024GB, better 100-ohm... - Page 54 Installation Table 7 contains the cabling specifications for the fiber optic ports. Table 7 Fiber Optic Cabling and Distance Maximum Model Speed Type of Cable Distance AT-8016F/MT, 100 Mbps 50/125 or Full-duplex AT-8016F/SC, 62.5/125 mode: and AT-8026FC micron (core/ 2 km (1.25 mi.)
-
Page 55: Unpacking The Switch
AT-8000 Series Fast Ethernet Switches Installation Guide Unpacking the Switch To unpack the switch, perform the following procedure: 1. Remove all components from the shipping package. Note Store the packaging material in a safe location. You must use the original shipping material if you need to return the unit to Allied Telesyn. -
Page 56: Installing The Switch In A Rack
Installation Installing the Switch in a Rack Perform the following procedure to install the switch in a standard 19-inch rack. If you are not installing the switch in a rack, go to the next procedure: 1. Place the unit upside down on a level, secure surface. 2. - Page 57 AT-8000 Series Fast Ethernet Switches Installation Guide 5. Install the second rackmounting bracket on the other side of the switch using the four remaining screws. 6. Mount the switch in the 19-inch rack using standard screws (not provided). Figure 24 Mounting the Switch in a Rack...
-
Page 58: Installing An Optional Gbic Module
Installation Installing an Optional GBIC Module System # AT-8024GB Procedure To install an optional GBIC module in an AT-8024GB Switch, perform the following procedure: 1. Unpack the GBIC module from its shipping container and store the packaging material in a safe location. Note You must use the original shipping material if you need to return the module to Allied Telesyn. - Page 59 AT-8000 Series Fast Ethernet Switches Installation Guide debris picked up on the ferrules of the optical connectors. Use an alcohol swab or wipe to clean the ferrules of the optical connector. Bore Ferrule Figure 25 Optical Bore and Ferrule of GBIC Module Note Unnecessary removal and insertion of a GBIC could lead to premature failure.
-
Page 60: Installing An Optional Expansion Or Stacking Module
Installation Installing an Optional Expansion or Stacking Module Systems # AT-8016F/MT # AT-8016F/SC # AT-8024M Procedure This section describes how to install an optional expansion or stacking module in the switch. The module slots are located on the left side of the front panel of the switch. - Page 61 AT-8000 Series Fast Ethernet Switches Installation Guide Note If removing a module, store the device in an antistatic bag or immediately install it in another switch. Figure 27 Removing the Expansion Slot Faceplate 5. Pull the faceplate straight out of the slot. Keep the faceplate in a safe area in case you need to replace it on the slot again.
- Page 62 Installation 7. Using a Phillips screwdriver, tighten the installation screws found on the module faceplate. A T - A 4 L IN K 10 00 10 0 F U L L D U P L 1 0 / 1 0 A C T IV 0 / 1 0 0 IT Y...
-
Page 63: Installing An Optional At-Rps3004 Redundant Power Supply
AT-8000 Series Fast Ethernet Switches Installation Guide Installing an Optional AT-RPS3004 Redundant Power Supply Systems # AT-8016F/MT # AT-8016F/SC # AT-8024M Procedure This section describes how to install the optional AT-RPS3004 external power supply. The AT-RPS3004 can supply redundant power for up to four Ethernet switches. - Page 64 Installation Perform the following procedure to install the power supply in a standard 19-inch rack. If you are not installing the power supply in a rack, start with Step 7. 1. Place the unit upside down on a level, secure surface. 2.
- Page 65 AT-8000 Series Fast Ethernet Switches Installation Guide 6. Mount the power supply in the 19-inch rack using standard screws (not provided). Note Ensure that air flow is unrestricted around the AT-RPS3004 unit. 7. Attach the provided DC power cord to the DC output connector on the back panel of the AT-RPS3004 power supply.
-
Page 66: Cabling And Powering On The Switch
Installation Cabling and Powering On the Switch Perform the following procedure to connect the data cables to the switch ports and to apply power to the switch. 1. If your AT-8000 Series Switch has twisted pair ports, connect the twisted pair data cables to the RJ-45 ports on the switch, as shown in Figure 34. - Page 67 AT-8000 Series Fast Ethernet Switches Installation Guide # If you are creating a port trunk, do not connect the cables of the trunk to the switch until you after have configured the trunk using the switch’s management software. Connecting the trunk cables to the switch before you have configured the software will result in a data loop, which can adversely affect network performance.
- Page 68 Installation 3. Attach the fiber optic data cables to the fiber optic ports. Figure 36 Attaching a Fiber Optic Cable When attaching a fiber optic cable, be sure to observe the following guidelines: # Be sure that the cable connector is firmly locked into place in the port.
- Page 69 AT-8000 Series Fast Ethernet Switches Installation Guide # If your network topology will contain a loop where two or more network devices can communicate with each other over more than one data path, do not connect the network cables forming the loop until after you have activated the Spanning Tree Protocol (STP) on the switch.
- Page 70 Installation The switch is ready for network operations. If you want to manage the switch and configure its operating parameters, go to the next procedure for instructions on how to start a local management session. Note No further installation steps are required if you do not need to change the default parameter settings of the switch, which are listed in Appendix B, Default Switch Settings on page 90.
-
Page 71: Starting A Local Management Session
AT-8000 Series Fast Ethernet Switches Installation Guide Starting a Local Management Session The procedure in this section explains how to start a local (out-of-band) management session using the RS-232 Terminal Port on the front panel of the switch. You can use a local management session to configure the switch’s operating parameters and view performance and error statistics. - Page 72 Installation 2. Connect the other end of the cable to an RS-232 port on a terminal or a personal computer with a terminal emulation program. 3. Set the terminal or the terminal emulation program to the following settings: # Baud rate: Auto-detect (default 9600 bps; see Note below) # Data bits: 8 # Parity: None # Stop bits: 1...
- Page 73 AT-8000 Series Fast Ethernet Switches Installation Guide Note The management software has two levels of management access: manager and operator. The default password for manager access is “admin” and the default password for operator access is “friend”. For further information on these management levels, refer to the AT-S39 Management Software User’s Guide.
-
Page 74: Warranty Registration
Installation Warranty Registration When you have finished installing the switch, register your product by completing the enclosed warranty card and sending it in, or by visiting our web site and completing the on-line registration form. -
Page 75: Chapter 3 Troubleshooting
Chapter 3 Troubleshooting This chapter contains information on how to troubleshoot the switch in the event a problem occurs. Note If after following the instructions in this chapter you are unable to resolve the problem, contact Allied Telesyn Technical Support for assistance. - Page 76 Troubleshooting # Check that the twisted pair cable is securely connected to the port on the switch and to the port on the end node. # Make sure that the twisted pair cable does not exceed 100 meters (328 feet). # Verify that you are using the appropriate category of twisted pair cable: Category 3 or better for 10 Mbps operation and Category 5 or Category 5E for 100 Mbps operation.
- Page 77 AT-8000 Series Fast Ethernet Switches Installation Guide # Check that the operating specifications (for instance, wavelength and maximum operating distance) of the fiber optic port on the remote end node are compatible with the fiber optic port on the switch. For example, you cannot connect a fiber optic port with a maximum distance of 40 kilometers and an operating wavelength of 1550 nanometers (nm) to a remote fiber optic port with an maximum distance of only 2 kilometers and a wavelength of 1310...
- Page 78 Troubleshooting If you are unable to establish a local management session with the switch through the RS-232 Terminal Port on the front panel, do the following: # Check to be sure that the RS-232 cable is securely connected to the RS-232 Terminal Port on the switch and to the RS-232 port on the terminal or personal computer.
-
Page 79: Technical Specifications
4.4 cm x 43.8 cm x 18.4 cm (H x W x D) (1.75 in. x 17.25 in. x 7.25 in.) Weight AT-8016F/MT and AT-8016F/SC - 3.5 kg (7.6 lbs) AT-8024, AT-8024GB and AT-8026FC - 2.7 kg (5.9 lbs) AT-8024M - 3.3 kg (7.2 lbs) Recommended 10 cm (4.0 in.) -
Page 80: Environmental Specifications
Technical Specifications Environmental Specifications Operating 0° C to 40° C (32° F to 104° F) Temperature Storage -25° C to 70° C (-13° F to 158° F) Temperature Operating 5% to 95% non-condensing Humidity Storage 5% to 95% non-condensing Humidity Operating Up to 3,000 m (9,843 ft) Altitude Range... -
Page 81: Power Specifications
AT-8000 Series Fast Ethernet Switches Installation Guide Power Specifications Maximum 63 watts Power Consumption AC Input 100-240 VAC 2A Voltage Frequency 50/60 Hz... -
Page 82: Safety And Electromagnetic Emissions Certifications
Technical Specifications Safety and Electromagnetic Emissions Certifications Safety UL 1950 (UL/cUL), EN60950 (TUV) FCC Class A, EN55022 Class A, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3 Immunity EN55024 Quality and MTBF > 90,000 hrs, MTTR < 1/2 hr DOA < 1% Reliability... -
Page 83: Standards
AT-8000 Series Fast Ethernet Switches Installation Guide Standards # IEEE 802.3 (10Base-T Ethernet) # IEEE 802.3u (10Base-TX Ethernet) # IEEE 802.1d (Spanning Tree) # IEEE 802.Q (Virtual LAN tagging) # IEEE 802.3x (Flow Control # IEEE 802.3ad (Link Aggregation) # RFC 1112 (IGMP Snooping Version 1.0) # RFC 2236 (IGMP Snooping Version 2.0) -
Page 84: Snmp Support
Technical Specifications SNMP Support # RFC 1213 (MIB II) # RFC 1215 (TRAP MIB) # RFC 1493 (Bridge MIB) # RFC 1643 (Ethernet MIB) # RFC 1573 (Interface Group MIB) # RFC 2674 (IEEE 802.1Q MIB) # Allied Telesyn International (ATI) Enterprise MIB... -
Page 85: Connectors
AT-8000 Series Fast Ethernet Switches Installation Guide Connectors This section lists the connectors and connector pinouts for the AT-8000 Series Fast Ethernet Switches and its components. RJ-45 Twisted Figure 40 illustrates the pin layout to an RJ-45 connector and port. Pair Port Pinouts Figure 40 RJ-45 Connector and Port Pin Layout... -
Page 86: Rs232 Terminal Port Pinouts
Technical Specifications RS232 Terminal Port Pinouts RS-232 TERMINAL PORT FAULT MASTER RS232 Terminal Port Table 10 lists the pin signals on the RS232 Terminal Port. Table 10 RS232 Terminal Port Pin Signals Signal Data Carrier Detect Transmit Data Receive Data Data Set Ready Ground Data Terminal Ready... -
Page 87: Rps 16-Pin Molex Connector Port Pinouts
AT-8000 Series Fast Ethernet Switches Installation Guide RPS 16-pin Figure 41 illustrates the pin layout to a 16-pin molex connector and port Molex Connector Port Pinouts Figure 41 RPS 16-pin Molex Connector Pin Layout Table 11 lists the 16-pin RPS connector pins and definitions. Table 11 Pin Definition of the 16-pin RPS Connector Definition +12V dc... -
Page 88: Mt-Rj Connector
Technical Specifications MT-RJ This connector is used to connect the AT-8016F/MT Fast Ethernet switch and AT-45/MT expansion module with external connection for MT-RJ Connector connector types. SC Type This connector is used on the AT-8016F/SC and AT-8026FC Fast Ethernet switches. It is also used to connect with optional GBIC modules and the Connector AT-45/SC expansion module. -
Page 89: At-8016F Series And At-8026Fc Fiber Optic Port Specifications
Standard 100Base-FX Speed 100 Mbps Maximum Operating Distance 2 kilometers Connector AT-8016F/SC and AT-8026FC Dual SC AT-8016F/MT MT-RJ Type of Cabling 50/125 µm or 62.5/125 µm (core/ cladding) multimode fiber optic cabling Operating Wavelength 1310 nm Transmitter Output Power 50/125 µm cabling Min: -22.5 dBm avg. -
Page 90: Default Switch Settings
Appendix B Default Switch Settings This appendix lists the factory default settings for the switch. Settings Default IP Address 0.0.0.0 Subnet Mask 255.255.0.0 Gateway Address 0.0.0.0 System Name None MAC Aging Time 300 seconds Community Strings Get Community String public Set Community String private Trap Community String... - Page 91 AT-8000 Series Fast Ethernet Switches Installation Guide Settings Default Management Interface Manager Login Name Manager Manager Password admin (case-sensitive) Operator Login Name Operator Operator Password friend (case-sensitive) Time Out Value 10 minutes Twisted Pair Ports Status Enabled Duplex Mode Auto-negotiation Speed Auto-negotiation Flow Control...
-
Page 92: Translated Electrical Safety And Emission Information
Appendix C Translated Electrical Safety and Emission Information Important: This appendix contains multiple-language translations for the safety statements in this guide. Wichtig: Dieser Anhang enthält Übersetzungen der in diesem Handbuch enthaltenen Sicherheitshinweise in mehreren Sprachen. Vigtigt: Dette tillæg indeholder oversættelser i flere sprog af sikkerhedsadvarslerne i denne håndbog. - Page 93 AT-8000 Series Fast Ethernet Switches Installation Guide Standards: This product meets the following safety standards. U.S. Federal Communications Commission RADIATED ENERGY Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 94 Translated Electrical Safety and Emission Information " PLUGGABLE EQUIPMENT, the socket outlet shall be installed near the equipment and shall be easily accessible. " CAUTION: Air vents must not be blocked and must have free access to the room ambient air for cooling. "...
- Page 95 AT-8000 Series Fast Ethernet Switches Installation Guide Standarder: Dette produkt tilfredsstiller de følgende standarder. " Radiofrekvens forstyrrelsesemission FCC Klasse A, EN55022 Klasse A, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3 " ADVARSEL: I et hjemligt miljø kunne dette produkt forårsage radio forstyrrelse. Bliver det tilfældet, påkræves brugeren muligvis at tage tilstrækkelige foranstaltninger.
- Page 96 Translated Electrical Safety and Emission Information Eisen: Dit product voldoet aan de volgende eisen. " RFI Emissie FCC Klasse A, EN55022 Klasse A, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3 " WAARSCHUWING: Binnenshuis kan dit product radiostoring veroorzaken, in welk geval de gebruiker verplicht kan worden om gepaste maatregelen te nemen. "...
- Page 97 AT-8000 Series Fast Ethernet Switches Installation Guide Normes: ce produit est conforme aux normes de suivantes: " Emission d’interférences radioélectriques FCC Classe A, EN55022 Classe A, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3 " MISE EN GARDE : dans un environnement domestique, ce produit peut provoquer des interférences radioélectriques.
- Page 98 Translated Electrical Safety and Emission Information Standardit: Tämä tuote on seuraavien standardien mukainen. " Radioaaltojen häirintä FCC Luokka A, EN55022 Luokka A, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3 " VAROITUS: Kotiolosuhteissa tämä laite voi aiheuttaa radioaaltojen häiröitä, missä tapauksessa laitteen käyttäjän on mahdollisesti ryhdyttävä tarpeellisiin toimenpiteisiin.
- Page 99 AT-8000 Series Fast Ethernet Switches Installation Guide Standard: Questo prodotto è conforme ai seguenti standard. " Emissione RFI (interferenza di radiofrequenza) FCC Classe A, EN55022 Classe A, VCCI Class A, C-TICK, EN61000-3- 2, EN61000-3-3 " AVVERTENZA: in ambiente domestico questo prodotto potrebbe causare radio interferenza.
- Page 100 Translated Electrical Safety and Emission Information Sikkerhetsnormer: Dette produktet tilfredsstiller følgende sikkerhetsnormer. " RFI stråling FCC Klasse A, EN55022 Klasse A, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3 " ADVARSEL: Hvis dette produktet benyttes til privat bruk, kan produktet forårsake radioforstyrrelse. Hvis dette skjer, må brukeren ta de nødvendige forholdsregler. "...
- Page 101 AT-8000 Series Fast Ethernet Switches Installation Guide Padrões: Este produto atende aos seguintes padrões. " Emissão de interferência de radiofrequência FCC Classe A, EN55022 Classe A, VCCI Class A, C-TICK, EN61000-3- 2, EN61000-3-3 " AVISO: Num ambiente doméstico este produto pode causar interferência na radiorrecepção e, neste caso, pode ser necessário que o utente tome as medidas adequadas.
- Page 102 Translated Electrical Safety and Emission Information Estándares: Este producto cumple con los siguientes estándares. " Emisión RFI FCC Clase A, EN55022 Clase A, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3 " ADVERTENCIA: en un entorno doméstico, este producto puede causar radiointerferencias, en cuyo caso, puede requerirse del usuario que tome las medidas que sean convenientes al respecto.
- Page 103 AT-8000 Series Fast Ethernet Switches Installation Guide Standarder: Denna produkt uppfyller följande standarder. " Radiostörning FCC Klass A, EN55022 Klass A, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3 " VARNING: Denna produkt kan ge upphov till radiostörningar i hemmet, vilket kan tvinga användaren till att vidtaga erforderliga åtgärder.
