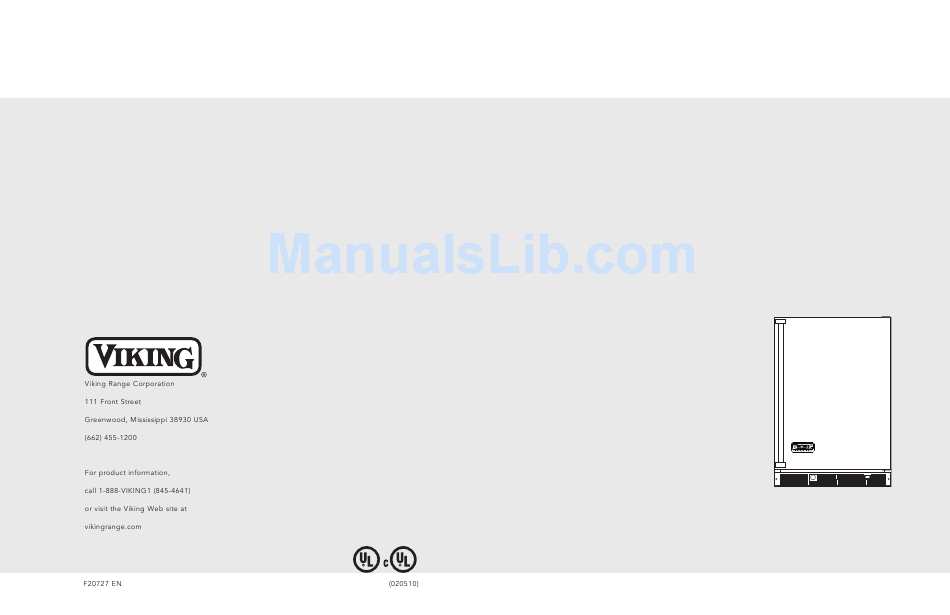

- Page 1 Viking Use/Installation Guide Combination Beverage Center/ Ice Maker...
-
Page 2: Important - Please Read And Follow
Junked or abandoned combination beverage center/ice makers are still dangerous, even if they will sit for “just a few days.” If you are getting rid of your combination beverage center/ice maker, please follow the instructions below to help prevent accidents. -
Page 3: General Information
GENERAL INFORMATION CUSTOM WOOD FRAME INSTALLATION INSTRUCTIONS (DFRI MODEL) AREA REQUIREMENTS Top hinge pin - Remove to remove the door Hinge adaptor screws - Loosen these to adjust door, on the top and bottom of the door Door must be parallel to top and sides of refrigerator 9/32”... - Page 4 CUSTOM WOOD FRAME INSTALLATION INSTRUCTIONS (DFRI MODEL) CUSTOM WOOD FRAME INSTALLATION INSTRUCTIONS (DFRI MODEL) (cont.) (cont.) Front of Model overlay 23-3/4” 30-5/16” panel 24” (60.3 cm) (76.1 cm) Table A Solid Door Models Clearance hole through door gasket channel Figure 2 Solid Door Models #8 Wood Screw Back of door...
-
Page 5: Electrical Connection
Custom Wood Frame Installation Instructions (DFRI Model) ELECTRICAL CONNECTION (cont.) WARNING ELECTRICAL SHOCK HAZARD Failure to follow these instructions could result in fire or electrical shock. Top hinge pin Top hinge Top door hinge adapter Top hinge adapter bushing Bottom door hinge adapter WATER CONNECTION WATER LINE LOCATION... -
Page 6: Interior Light
OPERATING INSTRUCTIONS CAUTION WARNING Do not use any type of anti-freeze or other solutions as a substitution for properly draining the icemaker Arm down, ice maker INTERIOR LIGHT Arm up stops operation will operate CAUTION WARNING Never pour liquids directly onto light ELECTRICAL SHOCK HAZARD assembly Failure to disconnect the power cord when changing... -
Page 7: Light Bulb Replacement
LIGHT BULB REPLACEMENT TROUBLESHOOTING CHART WARNING Screws ELECTRICAL FIRE HAZARD Do not replace bulb with a bulb higher than 15 watts. Light Shield CLEANING AND MAINTENANCE... -
Page 8: Diagnostic Led
TROUBLESHOOTING CHART SERVICE INFORMATION DIAGNOSTIC LED... - Page 9 UNDERCOUNTER/FREESTANDING COMBINATION BEVERAGE CENTER/ICE MAKER WARRANTY UNDERCOUNTER/FREESTANDING COMBINATION BEVERAGE CENTER/ICE MAKER WARRANTY (Units certified for Outdoor Use) (Units certified for Indoor Use)
