PART IDENTIFICATION CHART

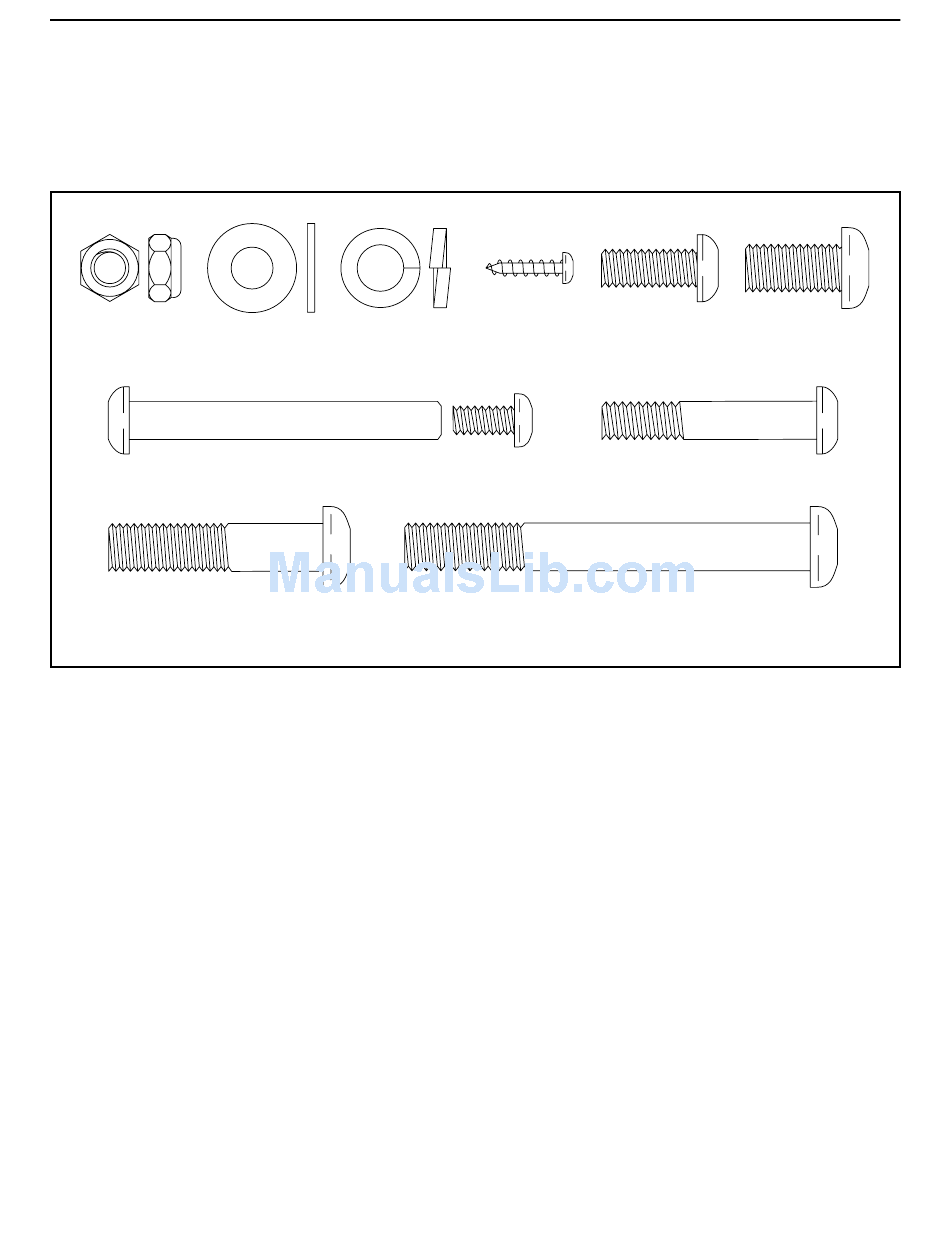

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included. If a part is missing, please call 1-888-533-1333.
M4 x 16mm
M8 x 20mm M10 x 20mm
M8 Jam Nut M8 Washer M10 Split
Screw (92)––9
Screw (80)––2 Screw (79)––8
(77)––4 Washer (78)––11
(33)––2
Bolt Set (31)––2 M8 x 45mm Button Bolt (76)––4
M10 x 45mm Screw (75)––6 M10 x 85mm Screw (82)––4
5
