ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own Phillips screwdriver
wrench , and a rubber mallet

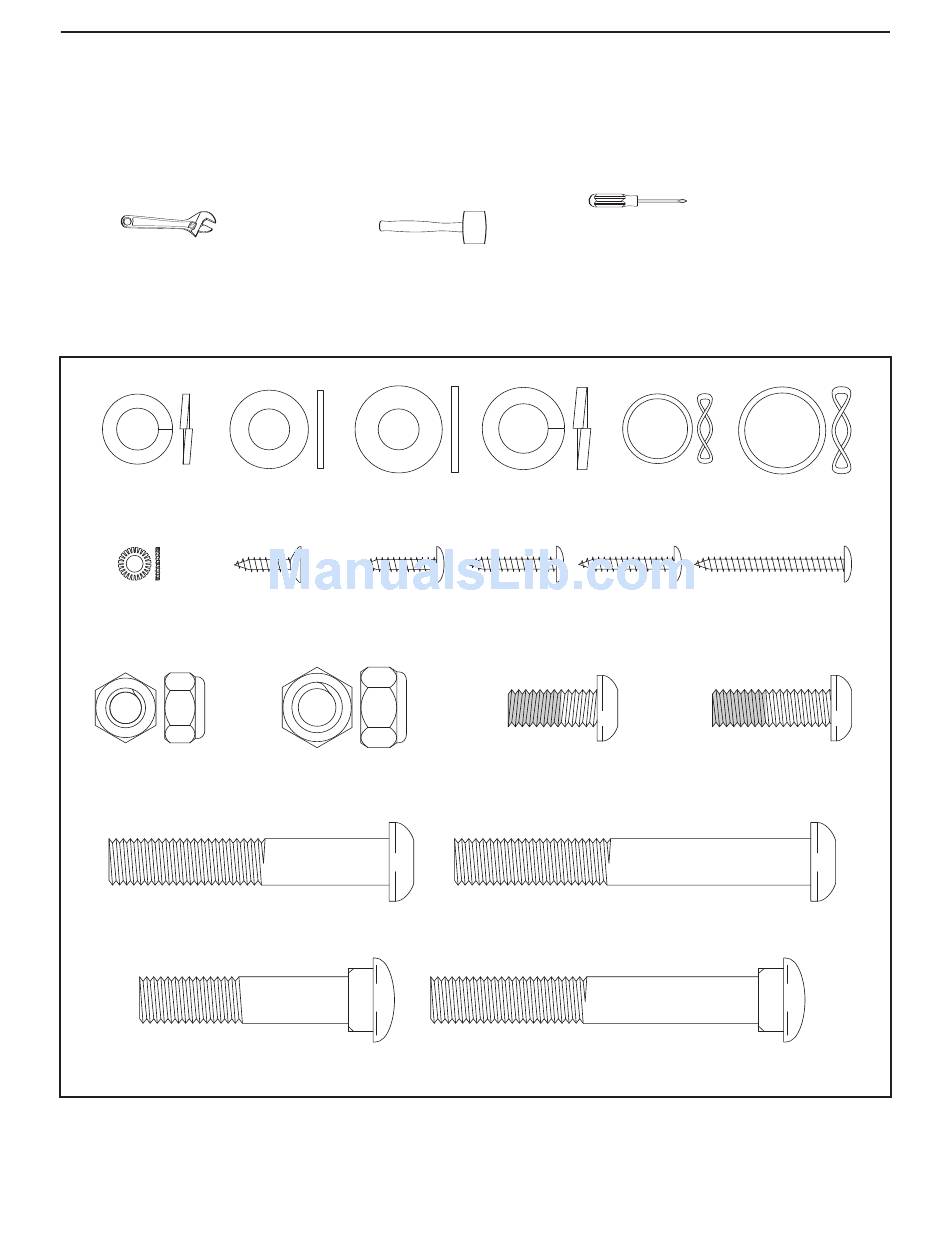

See the drawings below to identify the small parts needed for assembly. The number in parentheses below
each drawing is the key number of the part, from the PART LIST on page 17. The number following the key
number is the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a
part is not found in the parts bag, check to see if it has been pre-assembled.
M8 Split M8 Washer
Washer (79)–4
Star Washer M4 x 12mm Flat
(85)–6 Head Screw (82)–8
M8 Nylon
Locknut (59)–2
M10 x 60mm Button Screw (66)–2
M10 x 50mm Carriage Bolt (75)–2
M8 Large
(64)–4 Washer (81)–2
M4 x 16mm
Screw (60)–4
M10 Nylon
Locknut (84)–4
.
M10 Split Wave Washer
Washer (78)–4 (27)–2
M4 x 19mm M4 x 25mm
Screw (68)–6 Screw (80)–2
M8 x 19mm Patch
Screw (73)–4
M10 x 76mm Button Bolt (74)–2
M10 x 75mm Carriage Bolt (58)–2
5
, an adjustable
Large Wave
Washer (20)–4
M4 x 32mm
Screw (67)–8
M8 x 25mm Patch
Screw (70)–6
