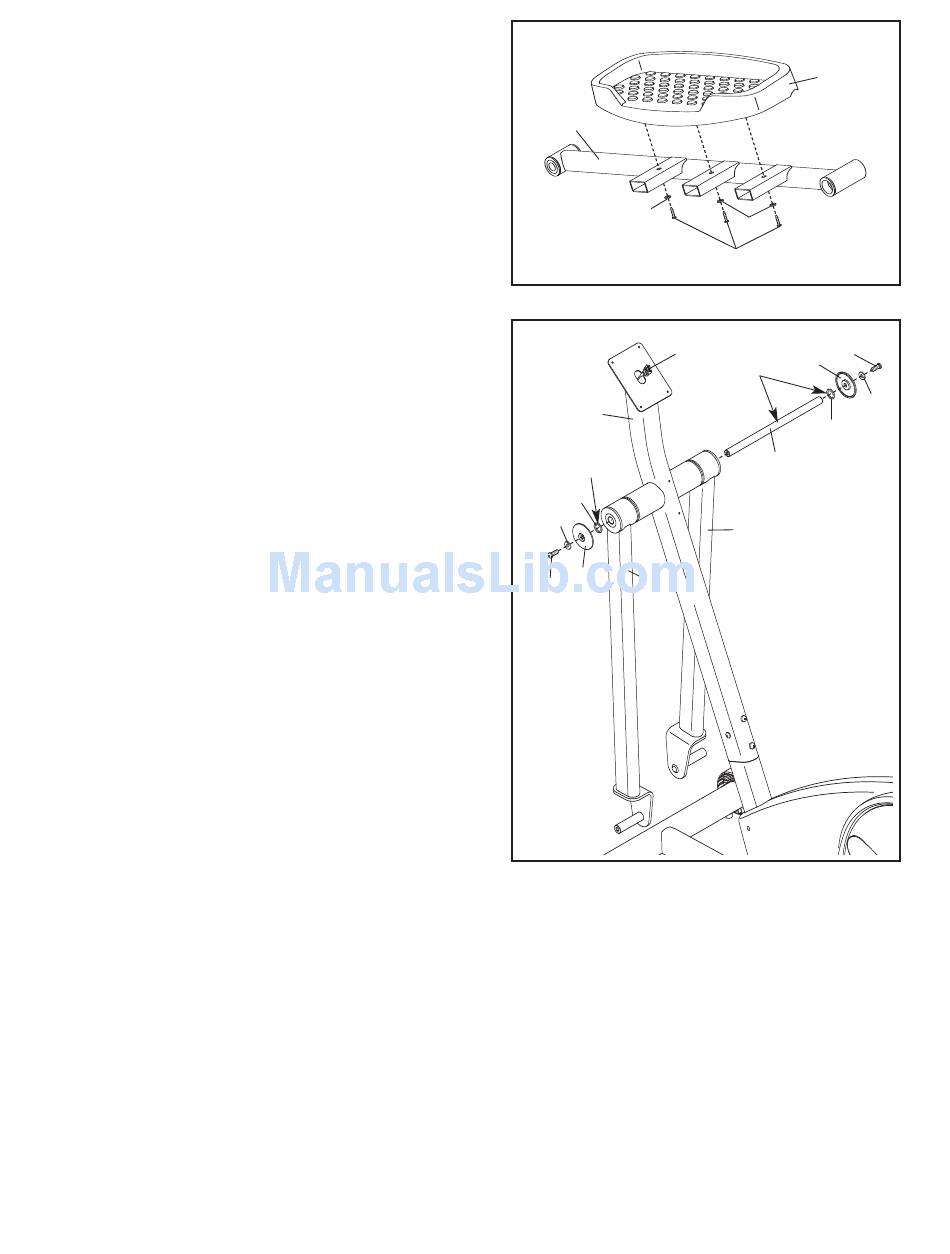

4. Identify the Left Pedal Arm (21), which is marked
with a sticker. Attach a Pedal (19) to the Left Pedal
Arm with three M4 x 19mm Screws (68) and three
Star Washers (85).
Attach the other Pedal (not shown) to the Right
Pedal Arm (not shown) in the same way.
5. Apply a generous amount of grease to the Pivot Axle
(16). Then, apply a small amount of grease to two
Wave Washers (27).
While another person aligns the Upper Body Legs (6)
with the Upright (2) as shown, insert the Pivot Axle
(16) into the Upper Body Legs and the Upright. Be
careful not to damage the Upper Wire Harness
(18) with the Pivot Axle.
Place a Wave Washer (27) on each end of the Pivot
Axle (16). Then, tighten an M8 x 25mm Patch
Screw (70), an M8 Washer (64), and a Pivot Cover
(14) into each end of the Pivot Axle.
