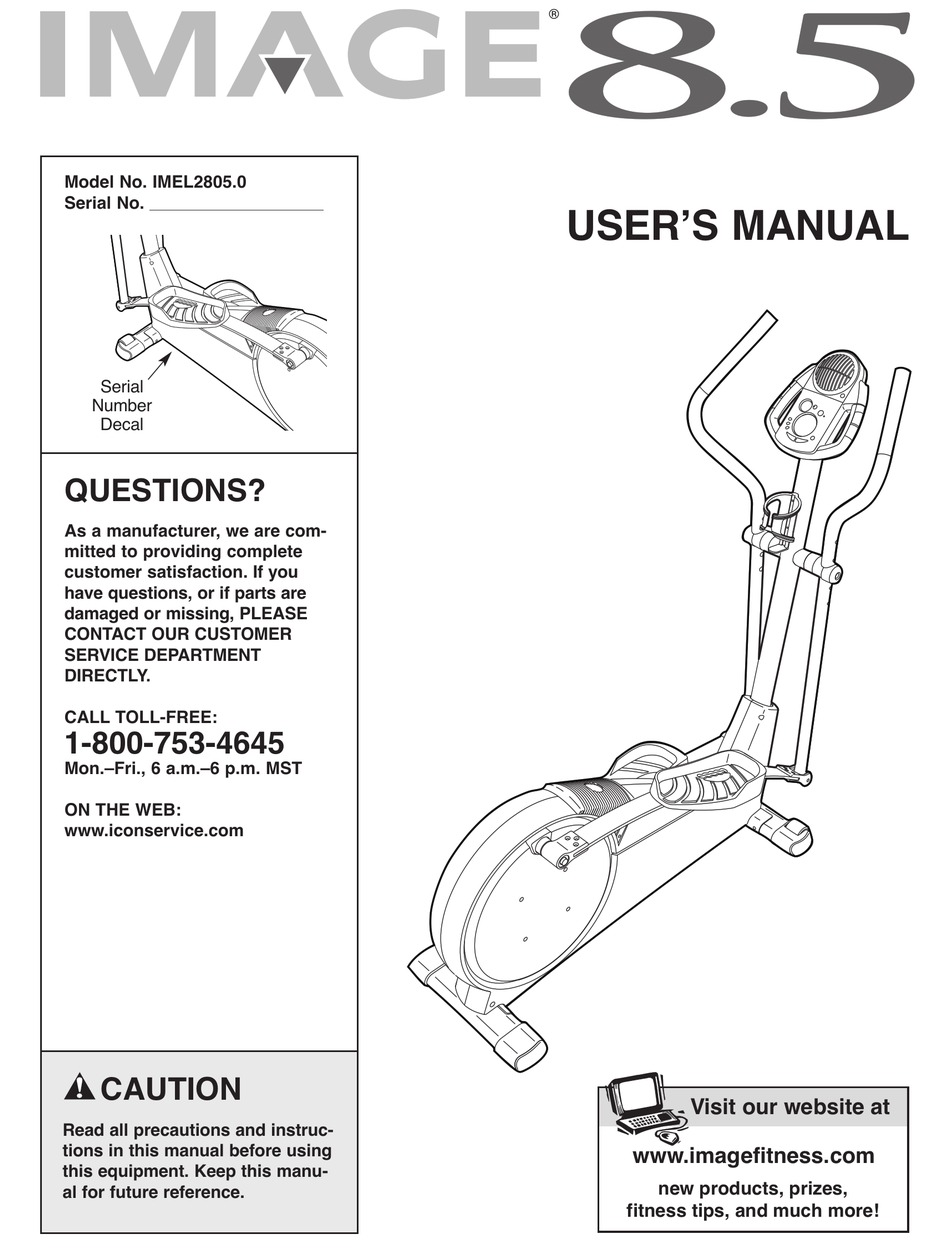

Model No. IMEL2805.0
Serial No.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-800-753-4645
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.iconservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manu-
al for future reference.
USER'S MANUAL
Visit our website at
www.imagefitness.com
new products, prizes,
fitness tips, and much more!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8.5 Elliptical and is the answer not in the manual?

Questions and answers

Related Manuals for Image 8.5 Elliptical

Summary of Contents for Image 8.5 Elliptical

  • Page 1 Model No. IMEL2805.0 USER’S MANUAL Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DIRECTLY.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT PRECAUTIONS ..............3 BEFORE YOU BEGIN .

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read the following important precau- tions before using the elliptical exerciser. 1. Read all instructions in this manual and all ment, may affect the accuracy of heart rate warnings on the elliptical exerciser before readings.

  • Page 4: Before You Begin

    BEFORE YOU BEGIN Congratulations for selecting the new IMAGE product model number and serial number before call- ® elliptical exerciser. The IMAGE 8.5 is an incredibly ing. The model number is IMEL2805.0. The serial smooth exerciser that moves your feet in a natural number can be found on a decal attached to the exer- elliptical path, minimizing the impact on your knees cise cycle (see the front cover of this manual).

  • Page 5: Assembly

    ASSEMBLY To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480. Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included allen wrenches, assembly requires a phillips screwdriver , an adjustable wrench...
  • Page 6 1. Identify the Front Stabilizer (3). While another person lifts the front of the Frame (1), attach the Front Stabilizer to the Frame with two M10 x 112mm Carriage Bolts (34) and two M10 Nylon Locknuts (29). Make sure that the Front Stabilizer is turned so the Wheels (32) are not touching the floor.
  • Page 7 5. The Console (5) requires four “D” batteries (not includ- ed); alkaline batteries are recommended. Remove the indicated screw from the battery drawer, and pull the Batteries battery drawer open. Insert four batteries into the bat- tery drawer; make sure that the batteries are orient- ed as shown by the markings inside the battery drawer.
  • Page 8 8. Identify the Left Pedal (13). Attach the Left Pedal to the left Flex Bar (14) with an M10 x 35mm Carriage Bolt (20), an M10 Washer (38), an M10 Split Washer (70), and a Pedal Knob (15) as shown. Note: The Left Pedal can be attached in any of five positions (see HOW TO ADJUST THE PEDALS on page 9).

  • Page 9: How To Use The Elliptical Exerciser

    HOW TO USE THE ELLIPTICAL EXERCISER HOW TO ADJUST THE PEDALS To dismount the elliptical exerciser, wait until the ped- als come to a complete stop. Note: The elliptical The motion of the exerciser does not have a free wheel; the pedals will continue to move until the flywheel stops.
  • Page 10 Fan Button Display Buttons On/Reset Button Resistance Buttons FEATURES OF THE CONSOLE iFIT.com CD and video programs (iFIT.com CDs and videocassettes are available separately). iFIT.com CD The advanced console offers a selection of features and video programs automatically control the resis- designed to make your workouts more enjoyable and tance of the pedals and prompt you to vary your pace effective.
  • Page 11 seconds. If you use the handgrip pulse sensor, HOW TO USE THE MANUAL MODE the display will also show your heart rate (see step 5 on page 12). Turn on the console. To view only the distance Upper Button you have pedaled or the Note: The console requires four 1.5V “D”...
  • Page 12 To reset the displays, press the On/Reset button. For the most accurate heart rate reading, continue to hold the handgrips for about 30 seconds. Note: Note: The con- When you first hold the handgrips, the large dis- sole can show play will show your heart rate continuously for 30 speed and dis- seconds.
  • Page 13 The target pace HOW TO USE A SMART PROGRAM for the current Indicator period will be shown by the Each Smart program will automatically change the arrows in the Arrows resistance of the pedals and prompt you to increase or small display.
  • Page 14 HOW TO CONNECT YOUR PORTABLE STEREO HOW TO CONNECT YOUR CD PLAYER, VCR, OR COMPUTER Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a 1/8” LINE OUT jack, see instruction B. If your To use iFIT.com CDs, the elliptical exerciser must be stereo has only a PHONES jack, see instruction C.
  • Page 15 HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER Note: If your stereo has an unused LINE OUT jack, Note: If your computer has a 1/8” LINE OUT jack, see instruction A below. If the LINE OUT jack is see instruction A.
  • Page 16 HOW TO CONNECT YOUR VCR B. Plug one end of a 1/8” to RCA stereo audio cable (available at electronics stores) into the jack Note: If your VCR has an unused AUDIO OUT jack, beneath the console. Plug the other end of the see instruction A below.
  • Page 17 The program will function in almost the same way HOW TO USE IFIT.COM CD AND VIDEO as a Smart program (see step 3 on page 13). PROGRAMS However, an electronic “chirping” sound will alert you when the resistance level and/or the target pace is about to change.
  • Page 18 Follow the desired links on our Web site to HOW TO USE PROGRAMS DIRECTLY FROM select a program. OUR WEB SITE Follow the on-line instructions to start the program. Our Web site at www.iFIT.com allows you to play iFIT.com programs directly from the internet. To use When you start the program, an on-screen count- programs from our Web site, the elliptical exerciser down will begin.

  • Page 19: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING Inspect and tighten all parts of the elliptical exerciser HANDGRIP PULSE SENSOR TROUBLESHOOTING regularly. Replace any worn parts immediately. • Avoid moving your hands while using the handgrip To clean the elliptical exerciser, use a damp cloth and pulse sensor.

  • Page 20: Conditioning Guidelines

    CONDITIONING GUIDELINES WARNING: During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for ener- gy. Only after the first few minutes of exercise does • Before beginning this or any exercise pro- your body begin to use stored fat calories for energy. gram, consult your physician.
  • Page 21 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.

  • Page 22: Part List

    PART LIST—Model No. IMEL2805.0 R0805A Key No. Qty. Description Key No. Qty. Description Frame M6 x 18mm Bolt Upright “C” Magnet Bracket Front Stabilizer M8.5 Washer Rear Stabilizer “C” Magnet Console Motor Left Side Shield Belt Right Side Shield M8 x 33mm Button Bolt Pedal Disk M6 Washer Left Handlebar...

  • Page 23: Exploded Drawing

    EXPLODED DRAWING—Model No. IMEL2805.0 R0805A...

  • Page 24: How To Order Replacement Parts

    • the MODEL NUMBER of the product (IMEL2805.0) • the NAME of the product (IMAGE 8.5 elliptical exerciser) • the SERIAL NUMBER of the product (see the front cover of this manual) • the KEY NUMBER and DESCRIPTION of the part(s) (see page 22) LIMITED WARRANTY ICON Health &...
