ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver , an adjustable
wrench , and a rubber mallet .

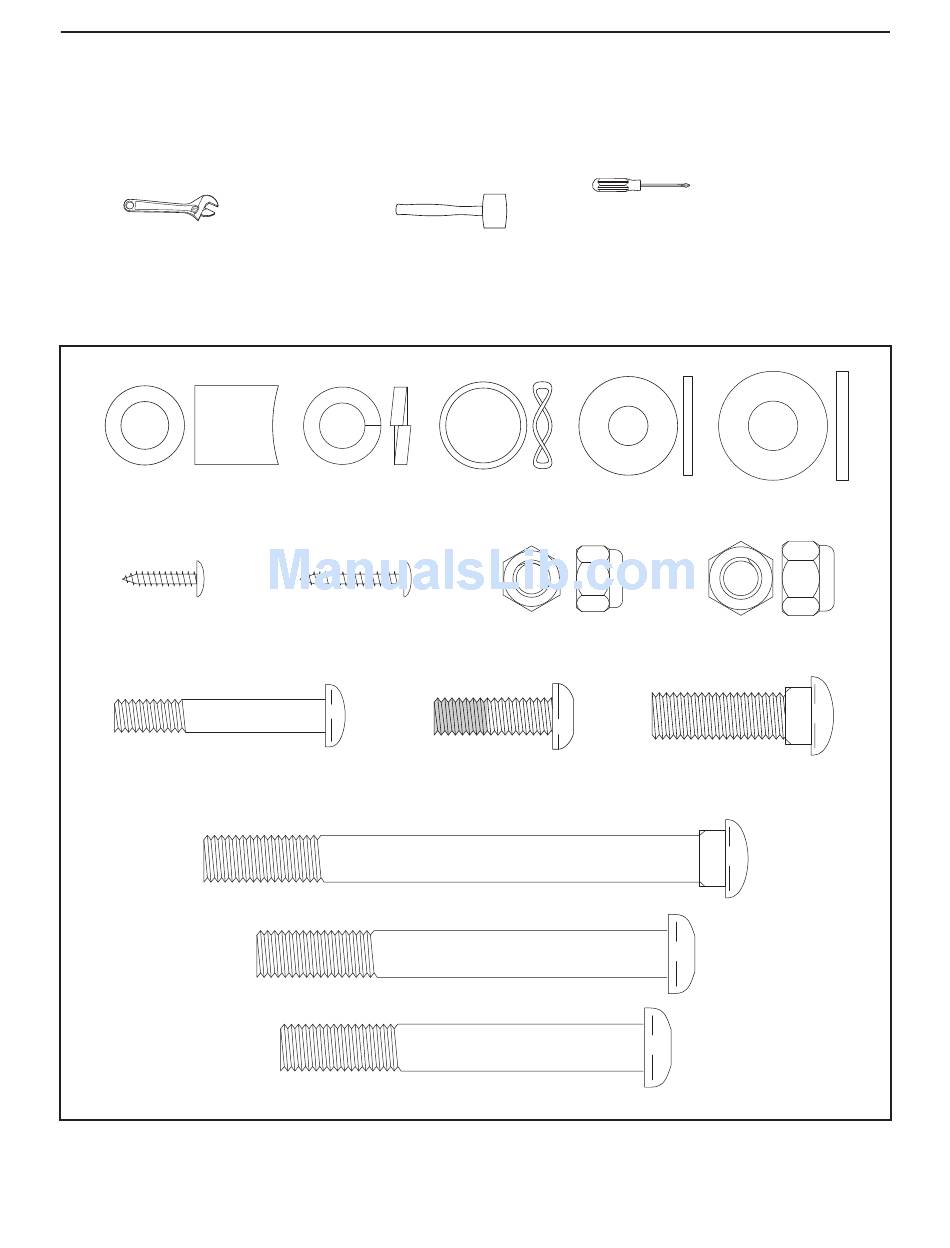

As you assemble the elliptical exerciser, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 22. The second number refers to the quantity needed for assembly. Note: Some small parts may have
been pre-assembled. If a part is not in the parts bag, check to see if it has been pre-assembled.
Frame Spacer (83)–1 M10 Split Wave Washer M8.5 M10
(95)–2 Washer (38)–6
Washer (70)–3 Washer (53)–2
M4 x 16mm M4 x 22mm
M8 Nylon M10 Nylon
Screw (66)–4 Screw (93)–2 Locknut (46)–4 Locknut (29)–6
M8 x 45mm Button Bolt (50)–4
M8 x 25mm Patch M10 x 35mm Carriage
Bolt (20)–2
Screw (22)–2
M10 x 112mm Carriage Bolt (34)–4
M10 x 88mm Button Screw (63)–1
M10 x 78mm Button Bolt (27)–2
5
