ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove all
packing materials; do not dispose of the packing materials until assembly is completed. Assembly requires the
included hex keys and your own adjustable wrench ___, Phillips screwdriver _,
and rubber mallet c__ _J

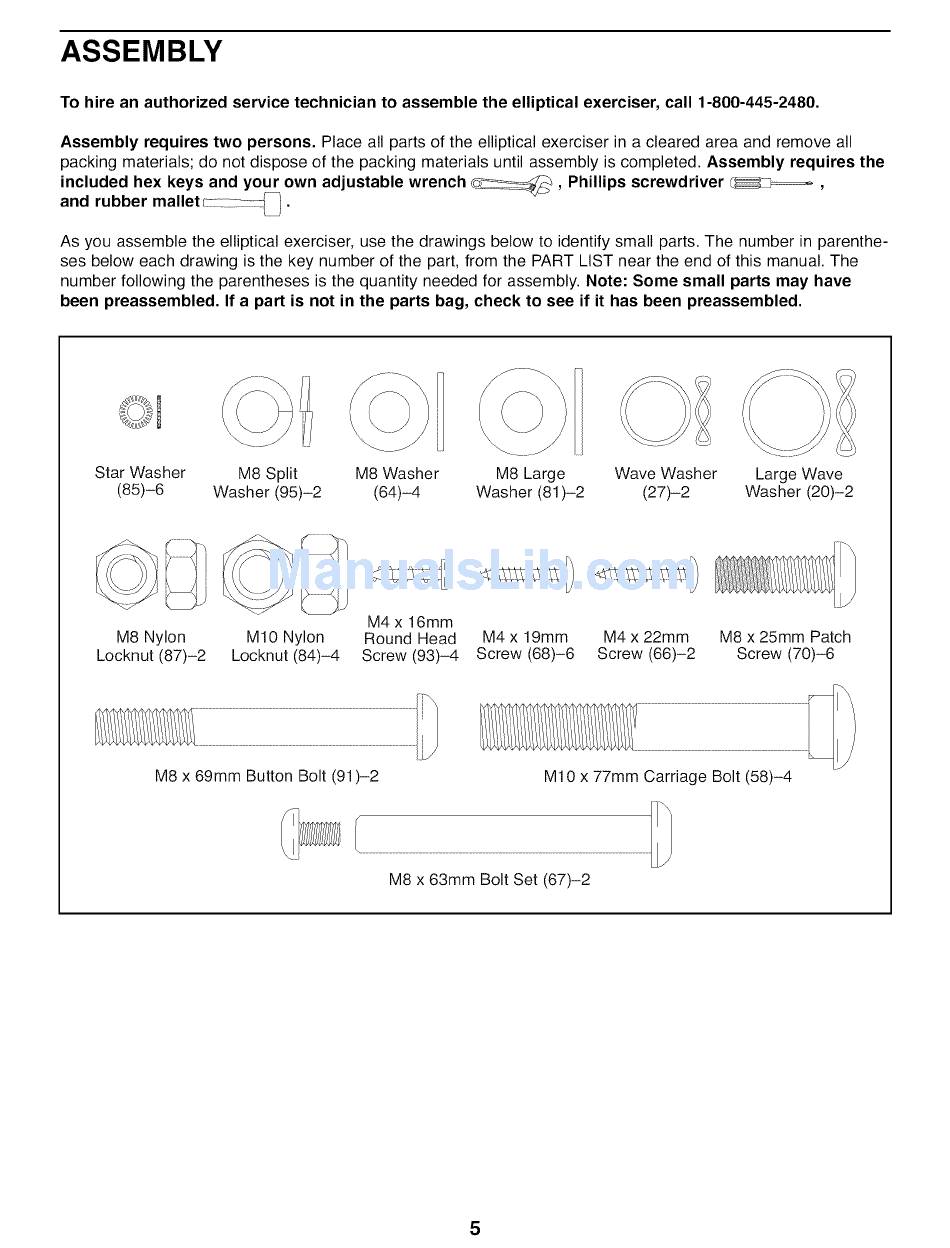

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: Some small parts may have
been preassembled. If a part is not in the parts bag, check to see if it has been preassembled.
M8 Split
Washer (95)-2
Star Washer M8 Washer M8 Large Wave Washer Large Wave
(85)-6 (64)-4 Washer (81)-2 (27)-2 Washer (20)-2
M4 x 16mm
M8 Nylon M10 Nylon Round Head M4 x 19mm M4 x 22mm M8 x 25mm Patch
Locknut (87)-2 Locknut (84)-4 Screw (93)-4 Screw (68)-6 Screw (66)-2 Screw (70)-6
M8 x 69mm Button Bolt (91)-2 M10 x 77mm Carriage Bolt (58)-4
M8 x 63mm Bolt Set (67)-2
