Appendix F
Allen-Bradley PLC Setup via Generic Ethernet Module
Trigger the Camera Again
Trigger the camera twice, and you will see the Status results stay the same for all triggers:
bool2 (decode+matchcode status) = 0
Why: Decode+Matchcode status always fails because the matchcode has been changed
to "wrong code", or there is no decode.
bool1 (Measure status) and bool3 (count blob status) = 1
Why: The inspected values are now in tolerance.
InspStat = 0
Why: The Decode tool fails, so the overall Inspection result is a Fail.

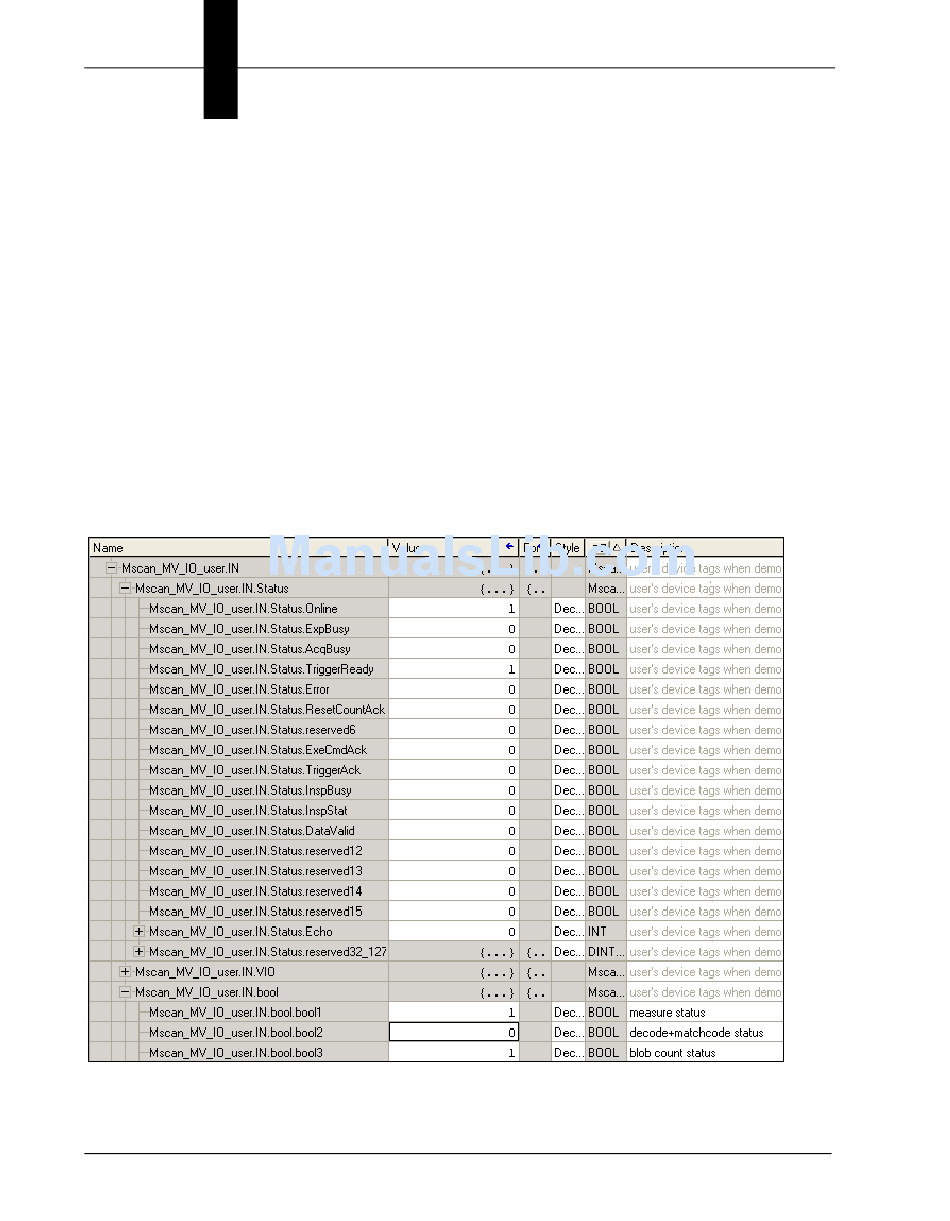

PLC tags:
This concludes the EtherNet/IP demo.
