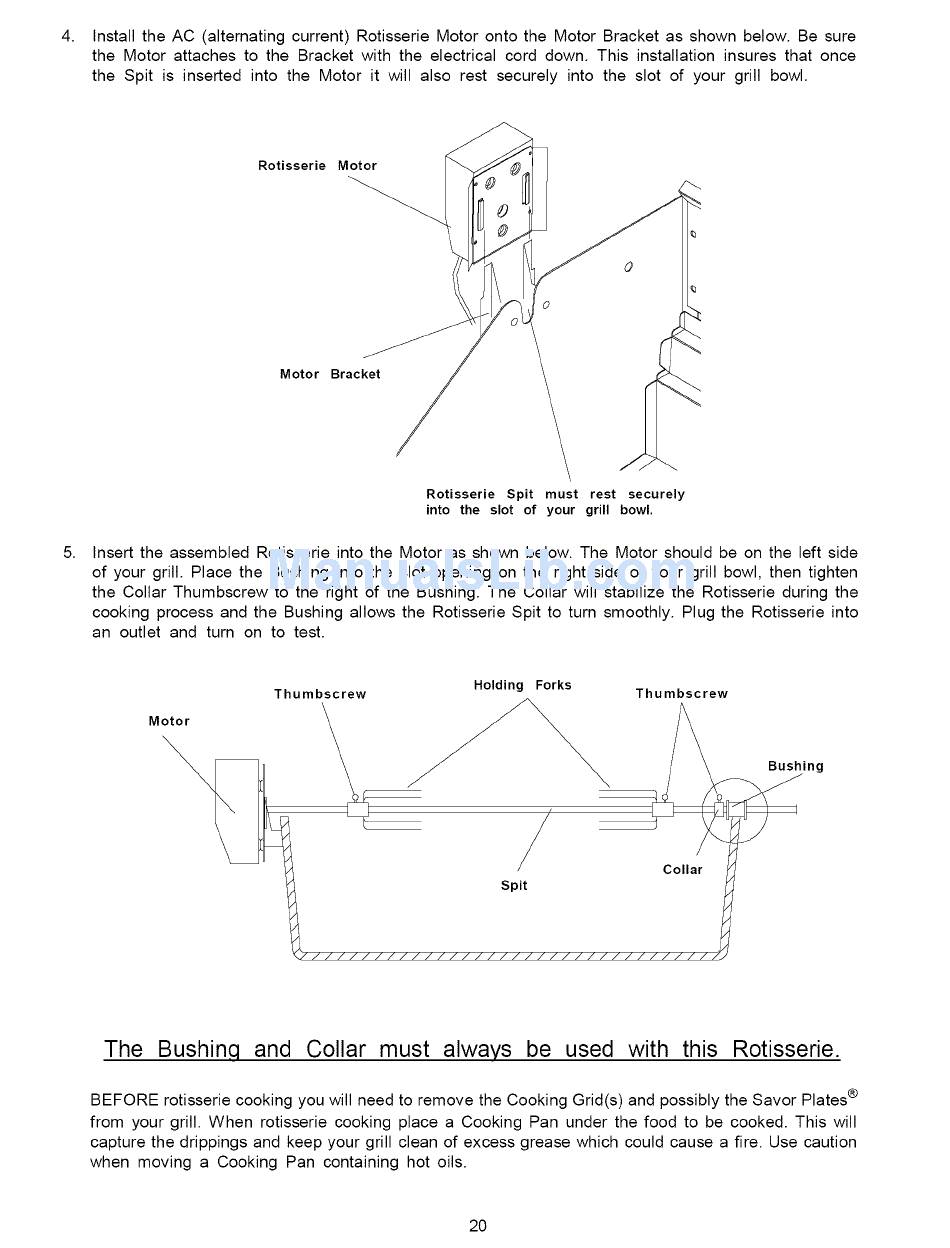

4. Install t he AC (alternating c urrent)Rotisserie Motorontothe MotorBracket a s shownbelow.Be sure
the Motorattachesto the Bracket w ith the electrical c orddown.This installation insuresthatonce
the Spit is insertedinto the Motorit will also rest securelyinto the slot of your grill bowl.
Rotisserie Motor
Motor Bracket
.
Rotisserie Spit must rest securely
into the slot of your grill bowl.
Insert the assembled Rotisserie into the Motor as shown below. The Motor should be on the left side
of your grill. Place the Bushing into the slot opening on the right side of your grill bowl, then tighten
the Collar Thumbscrew to the right of the Bushing. The Collar will stabilize the Rotisserie during the
cooking process and the Bushing allows the Rotisserie Spit to turn smoothly. Plug the Rotisserie into
an outlet and turn on to test.
Motor
Thumbscrew Holding Forks Thumbscrew
Bushing
z
Spit
Collar
The Bushinq and Collar must always be used with this Rotisserie.
BEFORE rotisserie cooking you will need to remove the Cooking Grid(s) and possibly the Savor Plates ®
from your grill. When rotisserie cooking place a Cooking Pan under the food to be cooked. This will
capture the drippings and keep your grill clean of excess grease which could cause a fire. Use caution
when moving a Cooking Pan containing hot oils.
