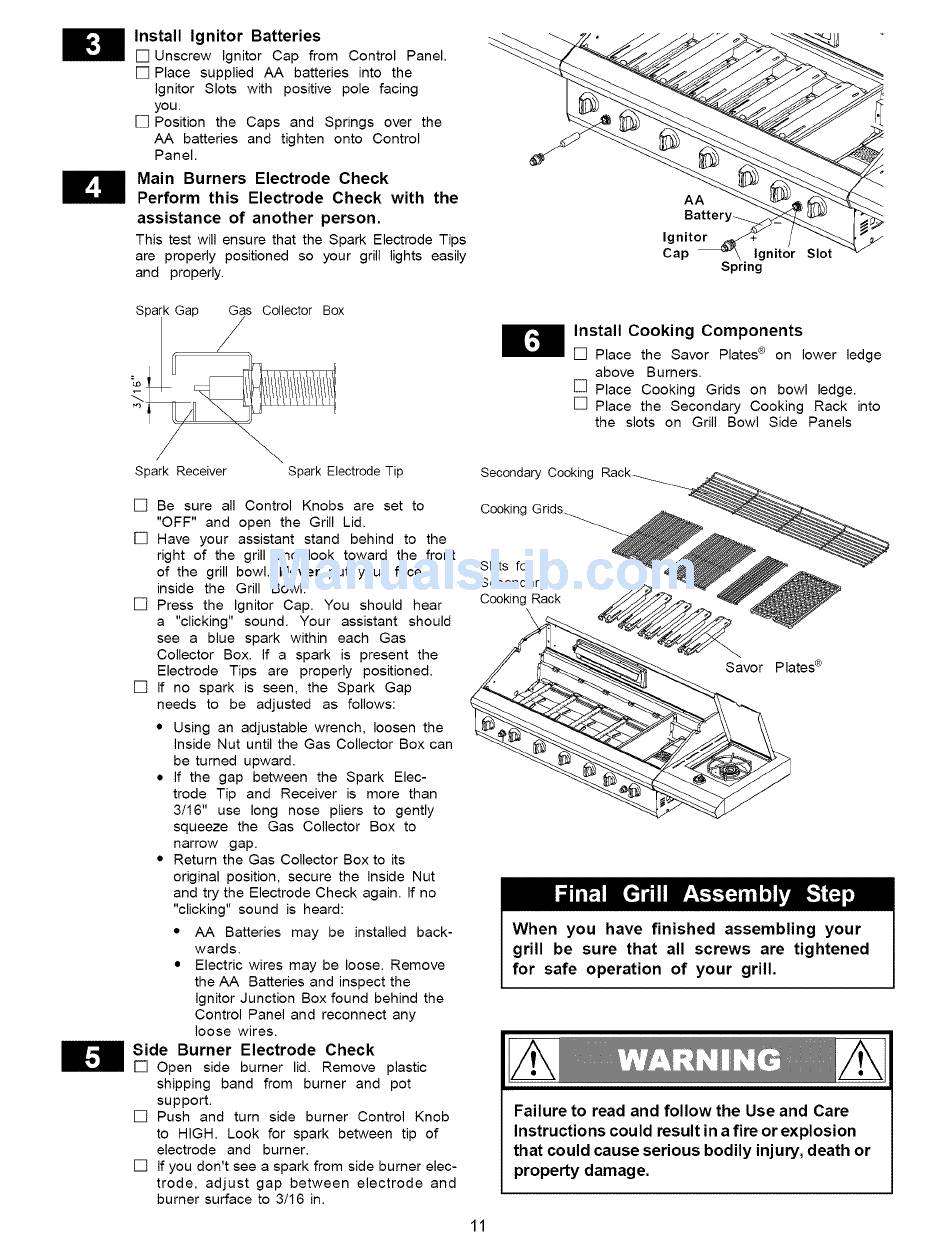

Kenmore 14116677 Operator's Manual page 11

Install Ignitor Batteries
[] Unscrew Ignitor Cap from Control Panel.
[] Place supplied AA batteries into the
ignitor Slots with positive pole facing
you.
[] Position the Caps and Springs over the
AA batteries and tighten onto Control
Panel.
Main Burners Electrode Check
Perform this Electrode Check with the
assistance of another person.
This test will ensure that the Spark Electrode Tips
are properly positioned so your grill lights easily
and properly.
Spring
H nstall Cooking Components
[] Place the Savor Plates ® on lower ledge
above Burners.
[] Place Cooking Grids on bowl ledge.
[] Place the Secondary Cooking Rack into
the slots on Grill Bowl Side Panels
Spark Receiver Spark Eiectrode Tip
[] Be sure all Control Knobs are set to
"OFF" and open the Grill Lid.
[] Have your assistant stand behind to the
right of the grill and look toward the front
of the grill bowl. Never put your face
inside the Grill Bowl.
[] Press the Ignitor Cap. You should hear
a "clicking" sound. Your assistant should
see a blue spark within each Gas
Collector Box. If a spark is present the
Electrode Tips are properly positioned.
[] If no spark is seen, the Spark Gap
needs to be adjusted as follows:
• Using an adjustable wrench, loosen the
inside Nut until the Gas Collector Box can
be turned upward.
• If the gap between the Spark Elec-
trode Tip and Receiver is more than
3/16" use long nose pliers to gently
squeeze the Gas Collector Box to
narrow gap.
• Return the Gas Collector Box to its
original position, secure the inside Nut
and try the Electrode Check again. If no
"clicking" sound is heard:
• AA Batteries may be installed back-
wards.
• Electric wires may be loose. Remove
the AA Batteries and inspect the
ignitor Junction Box found behind the
Control Panel and reconnect any
loose wires.
Side Burner Electrode Check
[] Open side burner lid. Remove plastic
shipping band from burner and pot
support.
[] Push and turn side burner Control Knob
to HIGH. Look for spark between tip of
electrode and burner.
[] If you don't see a spark from side burner elec-
trode, adjust gap between electrode and
burner surface to 3/16 in.
Secondary Cooking
Cookir
Slots for
Secondary
Cooking Rack
Savor Plates ®
When you have finished assembling your
grill be sure that all screws are tightened
for safe operation of your grill.
Failure to read and follow the Use and Care
Instructions could result in a fire or explosion
that could cause serious bodily injury, death or
property damage.
11
