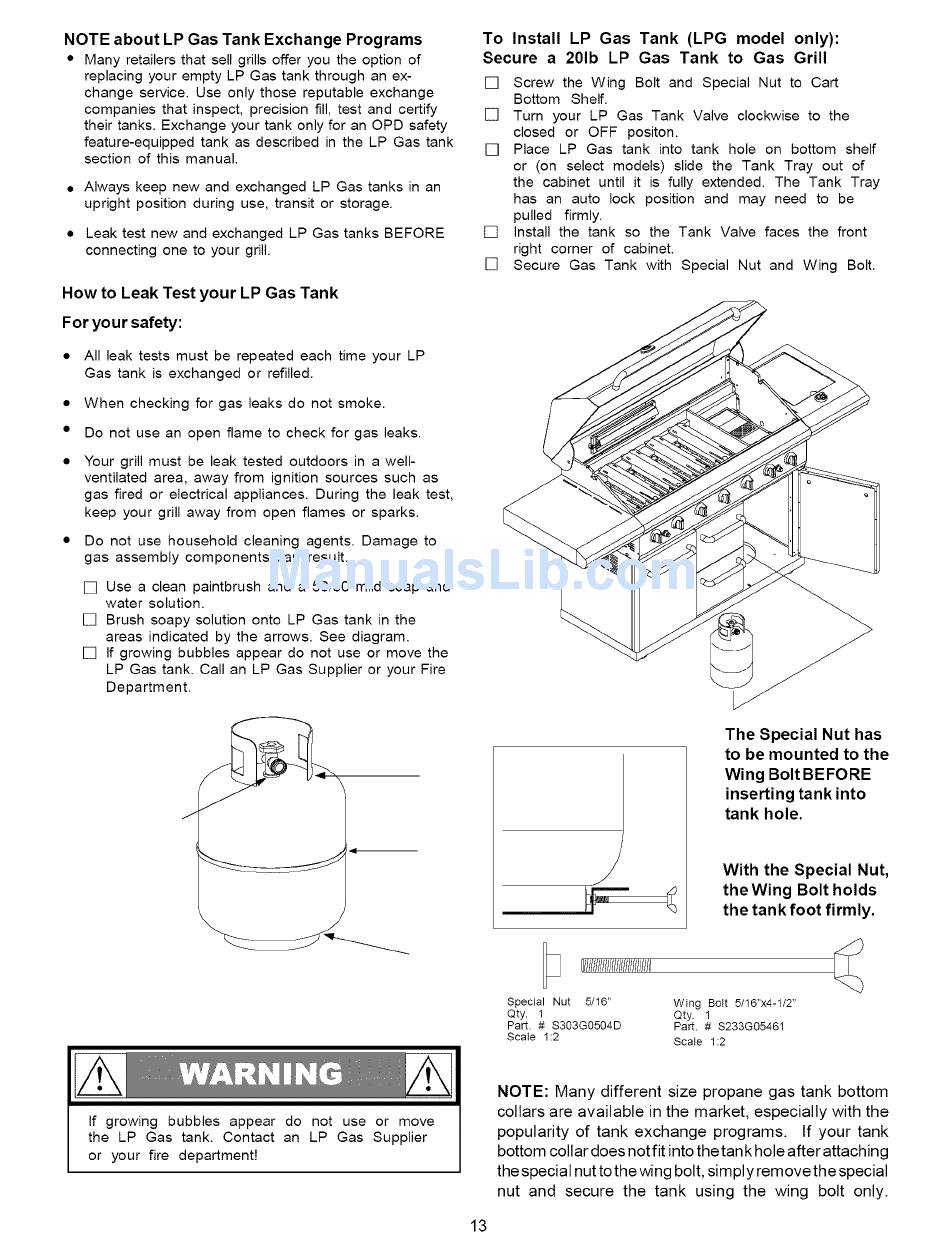

NOTE about LP Gas Tank
Exchange Programs
• Many retailers that sell grills offer you the option of
replacing your empty LP Gas tank through an ex-
change service. Use only those reputable exchange
companies that inspect, precision fill, test and certify
their tanks. Exchange your tank only for an OPD safety
feature-equipped tank as described in the LP Gas tank
section of this manual.
• Always keep new and exchanged LP Gas tanks in an
upright position during use, transit or storage.
• Leak test new and exchanged LP Gas tanks BEFORE
connecting one to your grill.
How to Leak Test your LP Gas Tank
For your safety:
• All leak tests must be repeated each time your LP
Gas tank is exchanged or refilled.
• When checking for gas leaks do not smoke.
• Do not use an open flame to check for gas leaks.
• Your grill must be leak tested outdoors in a well-
ventilated area, away from ignition sources such as
gas fired or electrical appliances. During the leak test,
keep your grill away from open flames or sparks.
• Do not use household cleaning agents. Damage to
gas assembly components can result.
[] Use a clean paintbrush and a 50/50 mild soap and
water solution.
[] Brush soapy solution onto LP Gas tank in the
areas indicated by the arrows. See diagram.
[] If growing bubbles appear do not use or move the
LP Gas tank. Call an LP Gas Supplier or your Fire
Department.
4-
To Install LP Gas Tank
(LPG model only):
Secure a 201b LP Gas Tank to Gas Grill
[] Screw the Wing Bolt and Special Nut to Cart
Bottom Shelf.
[] Turn your LP Gas Tank Valve clockwise to the
closed or OFF positon.
[] Place LP Gas tank into tank hole on bottom shelf
or (on select models) slide the Tank Tray out of
the cabinet until it is fully extended. The Tank Tray
has an auto lock position and may need to be
pulled firmly.
[] install the tank so the Tank Valve faces the front
right corner of cabinet.
[] Secure Gas Tank with Special Nut and Wing Bolt.
The Special Nut has
to be mounted to the
Wing Bolt BEFORE
inserting tank into
tank hole.
With the Special Nut,
the Wing Bolt holds
the tank foot firmly.
[I!t!t//!Iflt/t/!N///!/!/!/!/A
Special Nut 5/16" Wing Bolt 5/16"x4-1/2"
Qty. 1 Qty. 1
Part. # S303GO504D Part. # $233G05461
Scale 1:2 Scale 1:2
If growing bubbles appear do not use or move
the LP Gas tank. Contact an LP Gas Supplier
or your fire department!
NOTE: Many different size propane gas tank bottom
collars are available in the market, especially with the
popularity of tank exchange programs, tf your tank
bottom collar does not fit into the tank hole after attaching
the special nut to the wing bolt, sim ply remove the special
nut and secure the tank using the wing bolt only.
