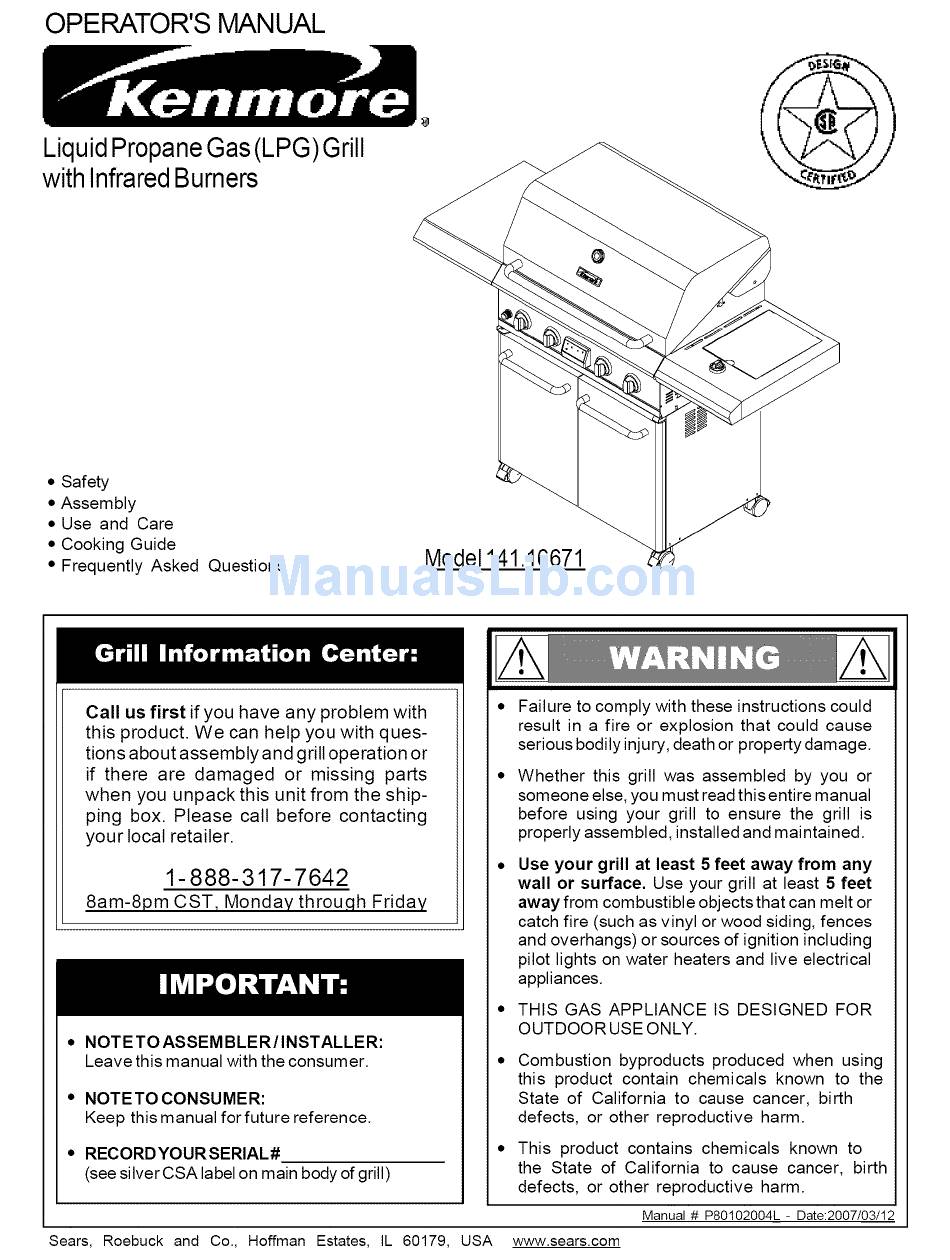

OPERATOR'S MANUAL
Liquid Propane Gas(LPG) Grill
with InfraredBurners
• Safety
• Assembly
• Use and Care
• Cooking Guide
• Frequently Asked Questions
Model 141.16671
Call us first if you have any problem
with
this product.
We can help you with ques-
tions about assembly
and grill operation
or
if there
are damaged
or missing
parts
when you unpack
this unit from the ship-
ping box. Please
call before
contacting
your local retailer.
1-888-317-7642
8am-8pm
CST, Monday
throu,qh
Friday
• NOTE TO ASSEM BLER/INSTALLER:
Leave this manual with the consumer.
• NOTETO CONSUMER:
Keep this manual for future reference.
• RECORDYOURSERIAL#
(see silver CSA label on main body of grill)
• Failure to comply with these instructions could
result in a fire or explosion that could cause
serious bodily injury, death or property damage.
Whether this grill was assembled
by you or
someone else, you must read thisentire manual
before using your grill to ensure the grill is
properly assembled, installed and maintained.
Use your grill at least 5 feet away from any
wall or surface. Use your grill at least 5 feet
away from combustible objects that can melt or
catch fire (such as vinyl or wood siding, fences
and overhangs) or sources of ignition including
pilot lights on water heaters and live electrical
appliances.
• THIS GAS APPLIANCE
IS DESIGNED
FOR
OUTDOOR USE ONLY.
Combustion
byproducts produced
when using
this product contain chemicals
known to the
State of California to cause cancer, birth
defects, or other reproductive
harm.
This product contains
chemicals
known to
the State of California
to cause cancer, birth
defects, or other reproductive
harm.
Manual # P80102004L
-
Date:2007/03/12
Sears,
Roebuck
and
Co.,
Hoffman
Estates,
IL 60179,
USA
www.sears.com
