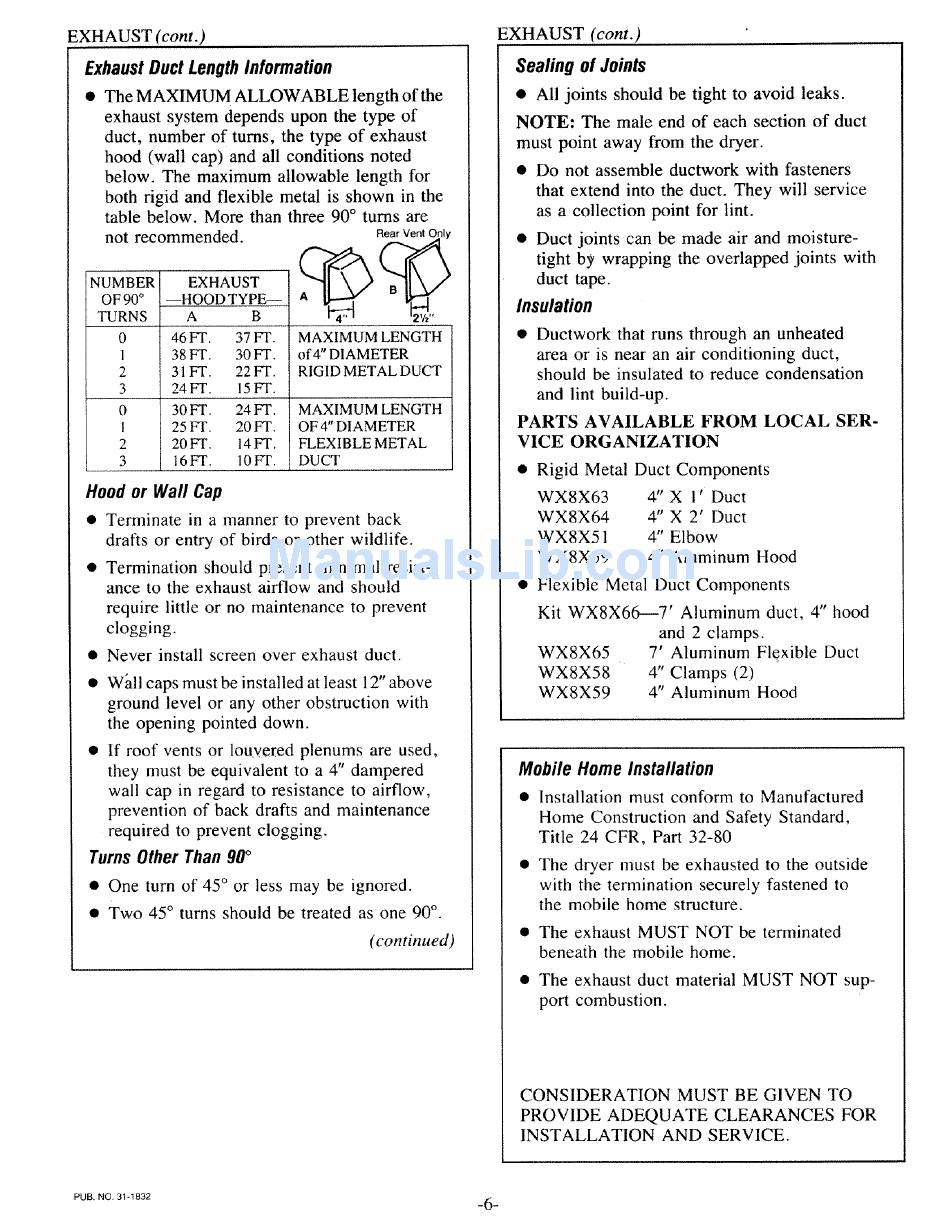

EXHAUST (cont.) EXHAUST (cont.)
Exhaust Duct Length Information
• The MAXIMUM ALLOWABLE length of the
exhaust system depends upon the type of
duct, number of turns, the type of exhaust
hood (wall cap) and all conditions noted
below. The maximum allowable length for
both rigid and flexible metal is shown in the
table below. More than three 90 ° turns are
not recommended.
NUMBER
OF 90 °
TURNS
0
l
2
3
t0
1
2
3
EXHAUST
--HOOD TYPE--
A B
46 FT. 37 FT".
38FT. 30FT.
31 FT. 22FT.
24FF. !5FF.
30FT. 24FT.
25FF. 20H'.
20FT. 14FT.
16FT. 10FF.
Rear Vent Only
MAXIMUM LENGTH
of 4" DIAMETER
RIGID METAL DUCT
MAXIMUM LENGTH
OF 4" DIAMETER
FLEXIBLE METAL
DUCT
Hood or Wall Cap
• Terminate in a manner to prevent back
drafts or entry of birds or other wildlife.
• Termination should present minimal resist-
ance to the exhaust airflow and should
require little or no maintenance to prevent
clogging.
• Never install screen over exhaust duct.
• Will caps must be installed at least 12" above
ground level or any other obstruction with
the opening pointed down.
• If roof vents or louvered plenums are used,
they must be equivalent to a 4" dampered
wall cap in regard to resistance to airflow,
prevention of back drafts and maintenance
required to prevent clogging.
Turns Other Than 90°
• One turn of 45° or less may be ignored.
• Two 45 ° turns should be treated as one 90 °.
(continued)
Sealing of Joints
• All joints should be tight to avoid leaks.
NOTE: The male end of each section of duct
must point away from the dryer.
• Do not assemble ductwork with fasteners
that extend into the duct. They will service
as a collection point for lint.
• Duct joints can be made air and moisture-
tight by wrapping the overlapped joints with
duct tape.
Insulation
• Ductwork that runs through an unheated
area or is near an air conditioning duct,
should be insulated to reduce condensation
and lint build-up.
PARTS AVAILABLE FROM LOCAL SER-
VICE ORGANIZATION
Rigid Metal Duct Components
WX8X63 4" X I' Duct
WX8X64 4"X 2' Duct
WX8X51 4" Elbow
WX8X59 4" Aluminum Hood
• Flexible Metal Duct Components
Kit WX8X66---7' Aluminum duct, 4" hood
and 2 clamps.
WX8X65 7' Aluminum Flexible Duct
WX8X58 4" Clamps (2)
WX8X59 4" Aluminum Hood
Mobile Home Installation
• Installation must conform to Manufactured
Home Construction and Safety Standard,
Title 24 CFR, Part 32-80
• The dryer nmst be exhausted to the outside
with the termination securely fastened to
the mobile home structure.
• The exhaust MUST NOT be terminated
beneath the mobile home.
• The exhaust duct material MUST NOT sup-
port combustion.
CONSIDERATION MUST BE GIVEN TO
PROVIDE ADEQUATE CLEARANCES FOR
INSTALLATION AND SERVICE.
PUB. NO, 31-!832
-6-
