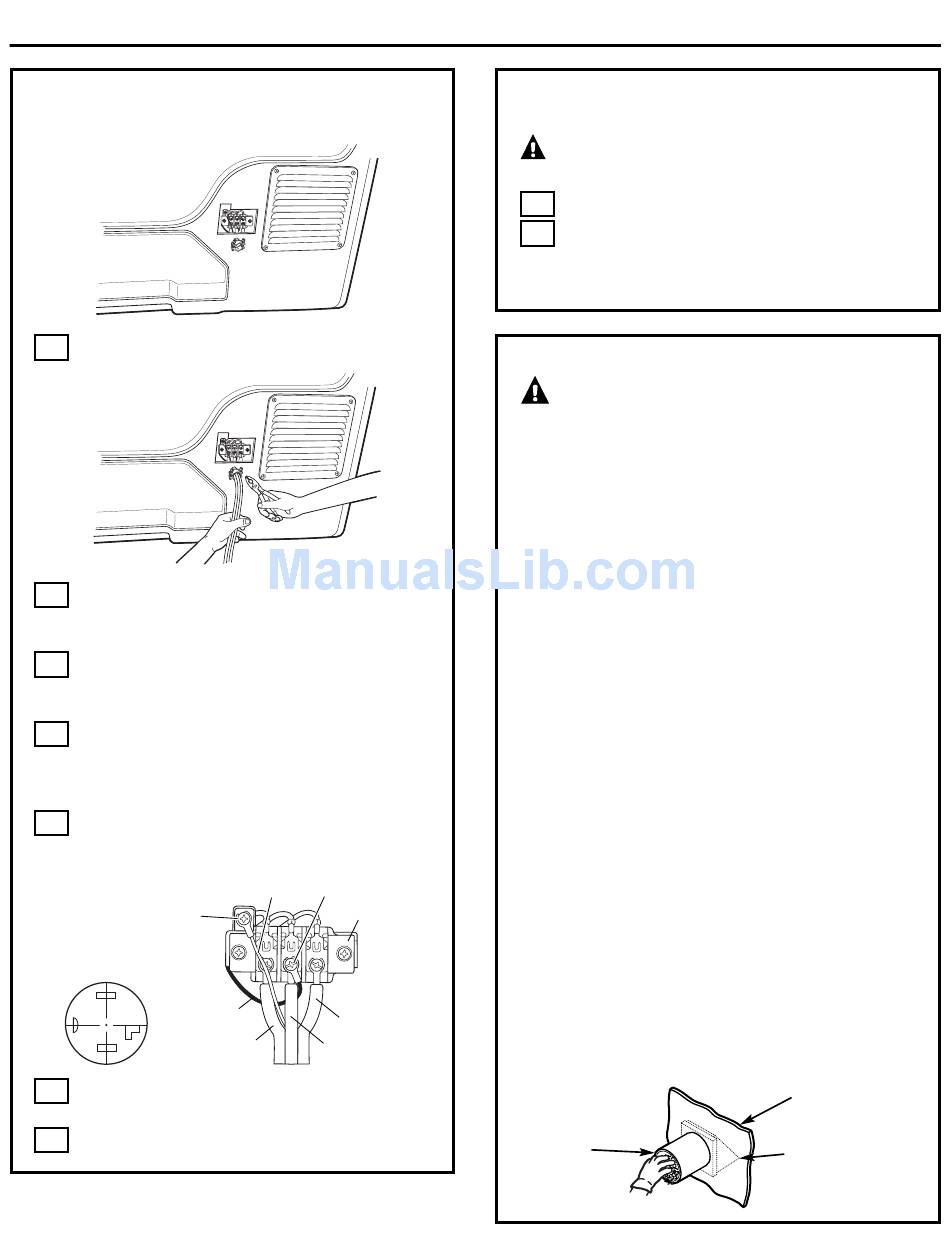

CONNECTING APPLIANCE USING
4-WIRE CONNECTION
1
Remove the terminal block access cover.
2
Install UL-listed 30A, 4-conductor NEMA 14–30-
type ST closed loop terminal power cord and the
strain relief.
3
Connect the green ground wire of the power
cord to the terminal block bracket with the green
grounding screw.
4
Connect the white wire from the power cord
and the green ground wire from the appliance
harness to the center (silver-colored) terminal
of the terminal block.
5
Connect the black and red wires from the power
cord to the two outer terminals of the terminal
block.
Green
ground screw
(14–30R)
4-wire receptacle
Green
ground wire
Red wire
6
Check all connection screws to make sure they
are securely tightened.
7
Reinstall the terminal block access cover.
Installation Instructions
Green conductor Silver terminal
Terminal block
Black wire
White wire
CONNECTING APPLIANCE USING
4-WIRE CONNECTION (CONT.)
CAUTION:
source (circuit breaker/fuse box).
8
Plug power cord into electrical outlet.
9
Return to Step 15 on page 3.
NOTE: THIS APPLIANCE IS NOT APPROVED FOR 120- VOLT
OPERATION.

EXHAUST INFORMATION

WARNING –
or personal injury:
• This clothes dryer must be exhausted to the outdoors.
• Use only 4" rigid metal ducting for the home exhaust
duct.
• Use only 4" rigid metal or UL-listed flexible metal
(semi-rigid or foil-type) duct to connect the dryer to
the home exhaust duct. It must be installed in
accordance with the instructions found in "Connecting
the Dryer to House Vent" on page 7 of this manual.
• Do not terminate exhaust in a chimney, a wall,
a ceiling, gas vent, crawl space, attic, under an
enclosed floor, or in any other concealed space
of a building.
• Never terminate the exhaust into a common duct
with a kitchen exhaust system. A combination
of grease and lint creates a potential fire hazard.
• Do not use duct longer than specified in the exhaust
length table. Longer ducts can accumulate lint,
creating a potential fire hazard.
• Never install a screen in or over the exhaust duct.
This will cause lint to accumulate, creating a potential
fire hazard.
• Do not assemble ductwork with any fasteners that
extend into the duct. These fasteners can accumulate
lint, creating a potential fire hazard.
• Do not obstruct incoming or exhausted air.
• Provide an access for inspection and cleaning of the
exhaust system, especially at turns and joints. Exhaust
system shall be inspected and cleaned at least once
a year.
• Remove and discard existing plastic or metal foil duct
and replace with UL-listed duct.
• Remove any lint from the wall exhaust opening.
Internal
duct
opening
6
Be sure electricity is OFF at power
To reduce the risk of fire
Wall
Check that exhaust
hood damper opens
and closes freely.
