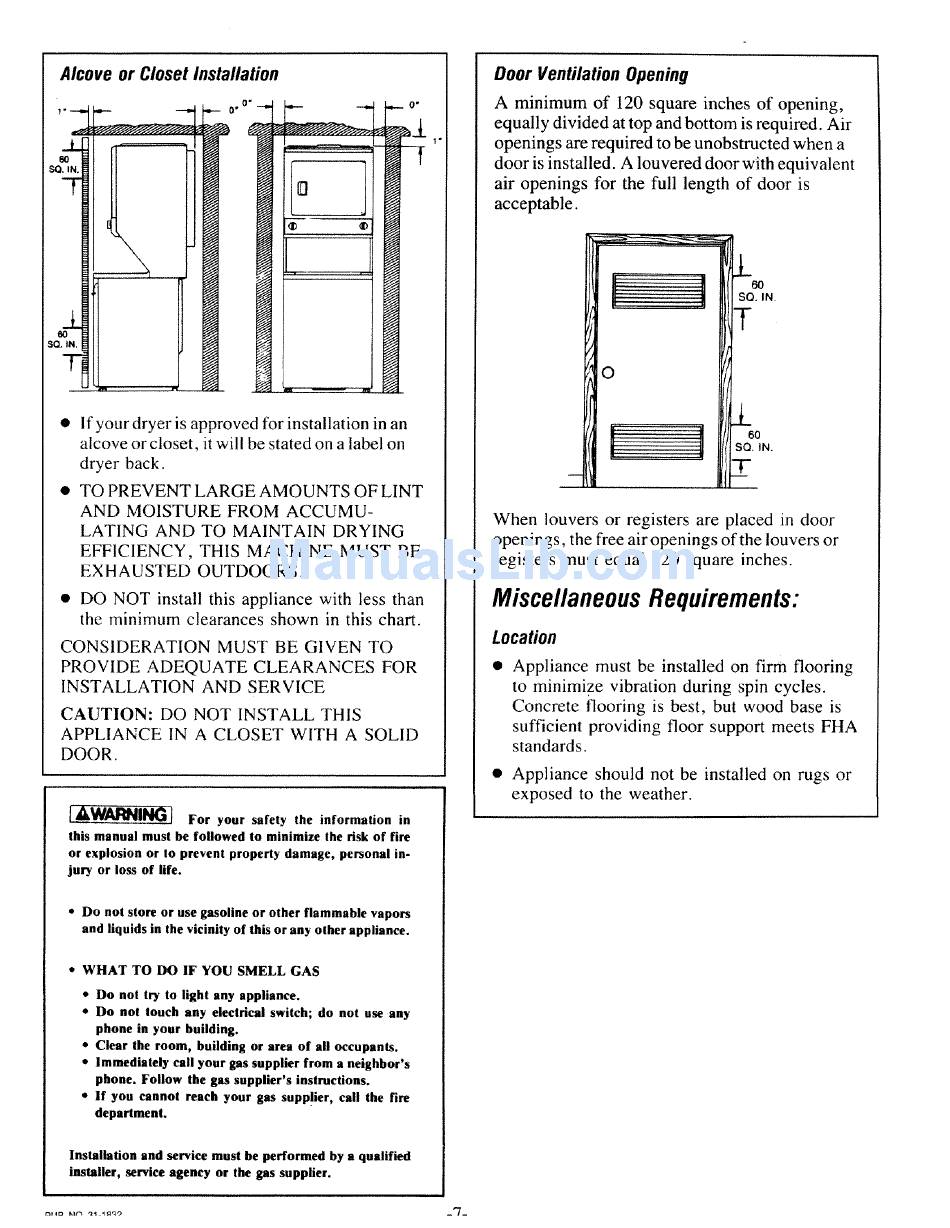

Alcove or Closet Installation
_L
80
SQ. IN.
_L
8O
SO, IN.
T
• If your dryer is approved for installation in an
alcove or closet, it will be stated on a label on
dryer back.
• TO PREVENT LARGE AMOUNTS OF LINT
AND MOISTURE FROM ACCUMU-
LATING AND TO MAINTAIN DRYING
EFFICIENCY, THIS MACHINE MUST BE
EXHAUSTED OUTDOORS.
• DO NOT install this appliance with less than
the minimum clearances shown in this chart.
CONSIDERATION MUST BE GIVEN TO
PROVIDE ADEQUATE CLEARANCES FOR
INSTALLATION AND SERVICE
CAUTION: DO NOT INSTALL THIS
APPLIANCE IN A CLOSET WITH A SOLID
DOOR.
JAtat_zLt__liikww_rlv.rlr_ I For your safety the information in
this manual must be followed to minimize the risk of fire
or explosion or to prevent property damage, personal in-
jury or loss of life.
• Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
* Do not touch any electrical switch; do not use any
phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
e if you cannot reach your gas supplier , call the fire
department.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
Door Ventilation Opening
A minimum of 120 square inches of opening,
equally divided at top and bottom is required. Air
openings are required to be unobstructed when a
door is installed. A louvered door with equivalent
air openings for the full length of door is
acceptable.
O
£
60
SQ. IN.
T
6O
SQ. IN.
7-
When louvers or registers are placed in door
openings, the free air openings of the louvers or
registers must equal 120 square inches.
Miscellaneous Requirements:
Location
• Appliance must be installed on firm flooring
to minimize vibration during spin cycles.
Concrete flooring is best, but wood base is
sufficient providing floor support meets FHA
standards.
• Appliance should not be installed on rugs or
exposed to the weather.
