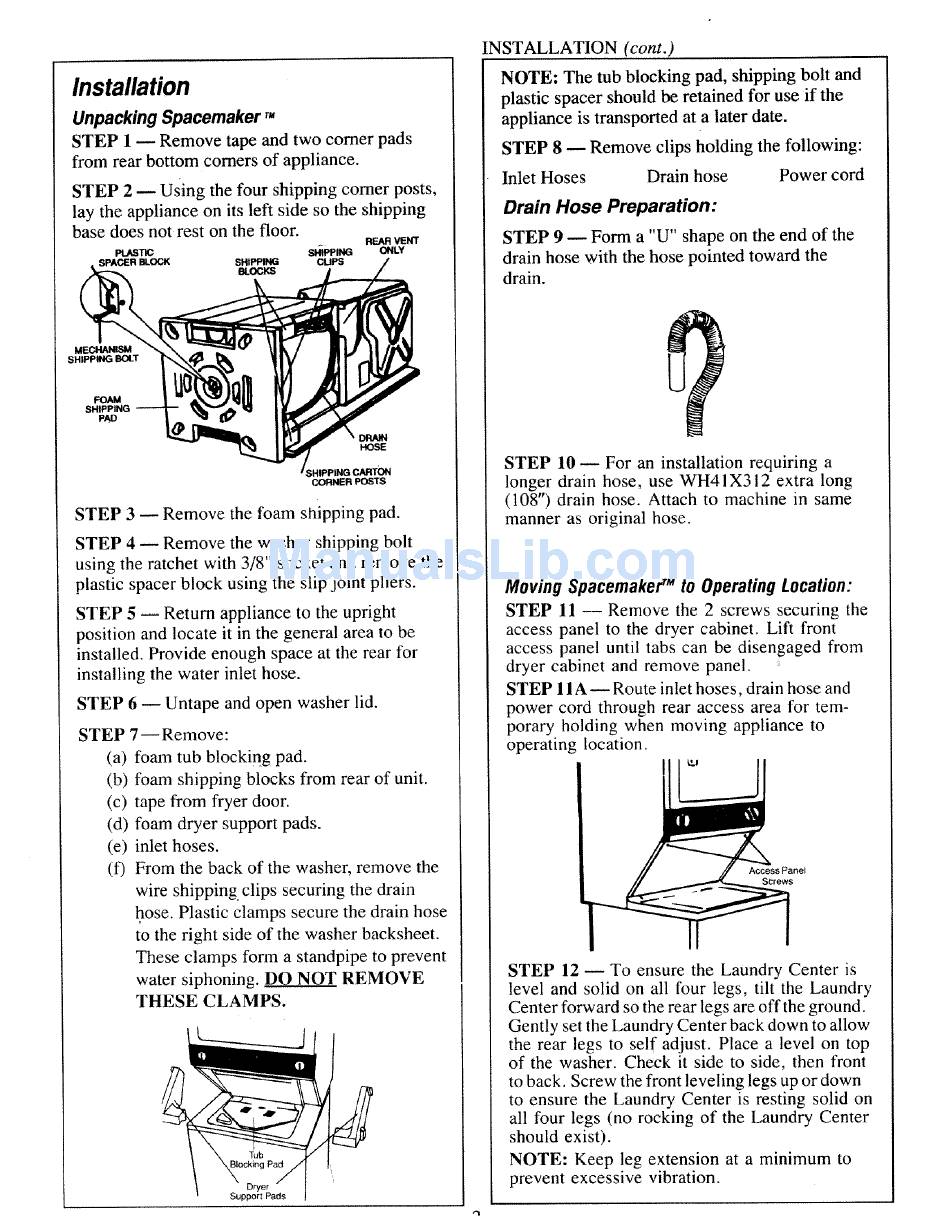

Installation
Unpacking Spacemaker
TM
STEP l -- Remove tape and two comer pads
from rear bottom comers of appliance.
STEP 2 m Using the four shipping comer posts,
lay the appliance on its left side so the shipping
base does not rest on the floor.
REAR VENT
Pt_ASTIC _rlIPPING ONLY
BLOCK SHIPPING CUPS
8LOCKS
MECHANISM
SHIPPING BOLT
FOAM
SHIPPING
PAD
;HIPPING CAR1(_
CORNER POSTS
STEP 3 -- Remove the foam shipping pad.
STEP 4 m Remove the washer shipping bolt
using the ratchet with 3/8" socket and remove the
plastic spacer block using the slip joint pliers.
STEP 5 -- Return appliance to the upright
position and locate it in the general area to be
installed. Provide enough space at the rear for
installing the water inlet hose.
STEP 6 m Untape and open washer lid.
STEP 7--Remove:
(a) foam tub blocking pad.
(b) foam shipping blocks from rear of unit.
(c) tape from fryer door.
(d) foam dryer support pads.
(e) inlet hoses.
(f) From the back of the washer, remove the
wire shipping, clips securing the drain
hose. Plastic clamps secure the drain hose
to the right side of the washer backsheet.
These clamps form a standpipe to prevent
water siphoning. DO NOT REMOVE
THESE CLAMPS.
INSTALLATION (cont.)
NOTE: The tub blocking pad, shipping bolt and
plastic spacer should be retained for use if the
appliance is transported at a later date.
STEP 8 -- Remove clips holding the following:
Inlet Hoses Drain hose Power cord
Drain Hose Preparation:
STEP 9 -- Form a "U" shape on the end of the
drain hose with the hose pointed toward the
drain.
STEP 10 -- For an installation requiring a
longer drain hose, use WH41 X312 extra long
(108") drain hose. Attach to machine in same
manner as original hose.
Moving Spacemaker
T M
to OperatingLocation:
STEP 11 -- Remove the 2 screws securing the
access panel to the dryer cabinet. Lift front
access panel until tabs can be disengaged from
dryer cabinet and remove panel.
STEP 11A-- Route inlet hoses, drain hose and
power cord through rear access area for tem-
porary holding when moving appliance to
operating location.
Access Pane_
SCrews
STEP 12 _ To ensure the Laundry Center is
level and solid on all four legs, tilt the Laundry
Center forward so the rear legs are off the ground.
Gently set the Laundry Center back down to allow
the rear legs to self adjust. Place a level on top
of the washer. Check it side to side, then front
to back. Screw the front leveling legs up or down
to ensure the Laundry Center is resting solid on
all four legs (no rocking of the Laundry Center
should exist).
NOTE: Keep leg extension at a minimum to
prevent excessive vibration.
