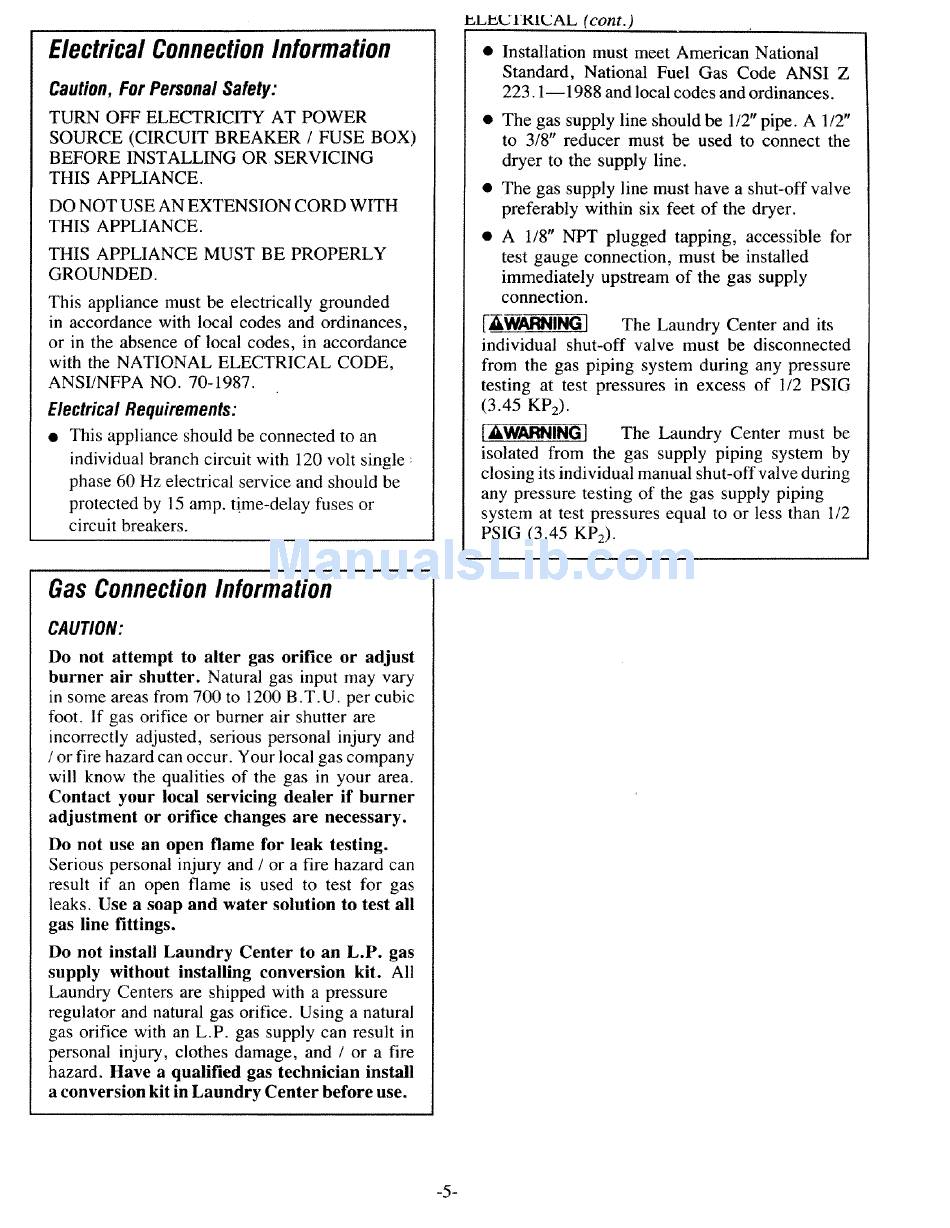

ElectricalConnection Information
Caution,For PersonalSafety:
TURN OFF ELECTRICITY AT POWER
SOURCE (CIRCUIT BREAKER / FUSE BOX)
BEFORE INSTALLING OR SERVICING
THIS APPLIANCE.
DO NOT USE AN EXTENSION CORD WITH
THIS APPLIANCE.
THIS APPLIANCE MUST BE PROPERLY
GROUNDED.
This appliance must be electrically grounded
in accordance with local codes and ordinances,
or in the absence of local codes, in accordance
with the NATIONAL ELECTRICAL CODE,
ANSI/NFPA NO. 70-1987.
Electrical Requirements:
• This appliance should be connected to an
individual branch circuit with 120 volt single:
phase 60 Hz electrical service and should be
protected by 15 amp. time-delay fuses or
circuit breakers.
I_LI_J INIIJAL
(cont.)
• Installation must meet American National
Standard, National Fuel Gas Code ANSI Z
223.1--1988 and local codes and ordinances.
• The gas supply line should be 1/2" pipe. A 1/2"
to 3/8" reducer must be used to connect the
dryer to the supply line.
• The gas supply line must have a shut-off valve
preferably within six feet of the dryer.
• A 1/8" NPT plugged tapping, accessible for
test gauge connection, must be installed
immediately upstream of the gas supply
connection.
[-i_W_ The Laundry Center and its
individual shut-off valve must be disconnected
from the gas piping system during any pressure
testing at test pressures in excess of 1/2 PSIG
(3.45 KP2).
IAWARNINGI
The Laundry Center must be
isolated from the gas supply piping system by
closing its individual manual shut-off valve during
any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2
PSIG (3.45 KP2).
Gas ConnectionInformation
CAUTION:
Do not attempt to alter gas orifice or adjust
burner air shutter. Natural gas input may vary
in some areas from 700 to 1200 B.T.U. per cubic
foot. If gas orifice or burner air shutter are
incorrectly adjusted, serious personal injury and
/ or fire hazard can occur. Your local gas company
will know the qualities of the gas in your area.
Contact your local servicing dealer if burner
adjustment or orifice changes are necessary.
Do not use an open flame for leak testing.
Serious personal injury and / or a fire hazard can
result if an open flame is used to test for gas
leaks. Use a soap and water solution to test all
gas line fittings.
Do not install Laundry Center to an L.P. gas
supply without installing conversion kit. All
Laundry Centers are shipped with a pressure
regulator and natural gas orifice. Using a natural
gas orifice with an L.P. gas supply can result in
personal injury, clothes damage, and / or a fire
hazard. Have a qualified gas technician install
a conversion kit in Laundry Center before use.
-5-
