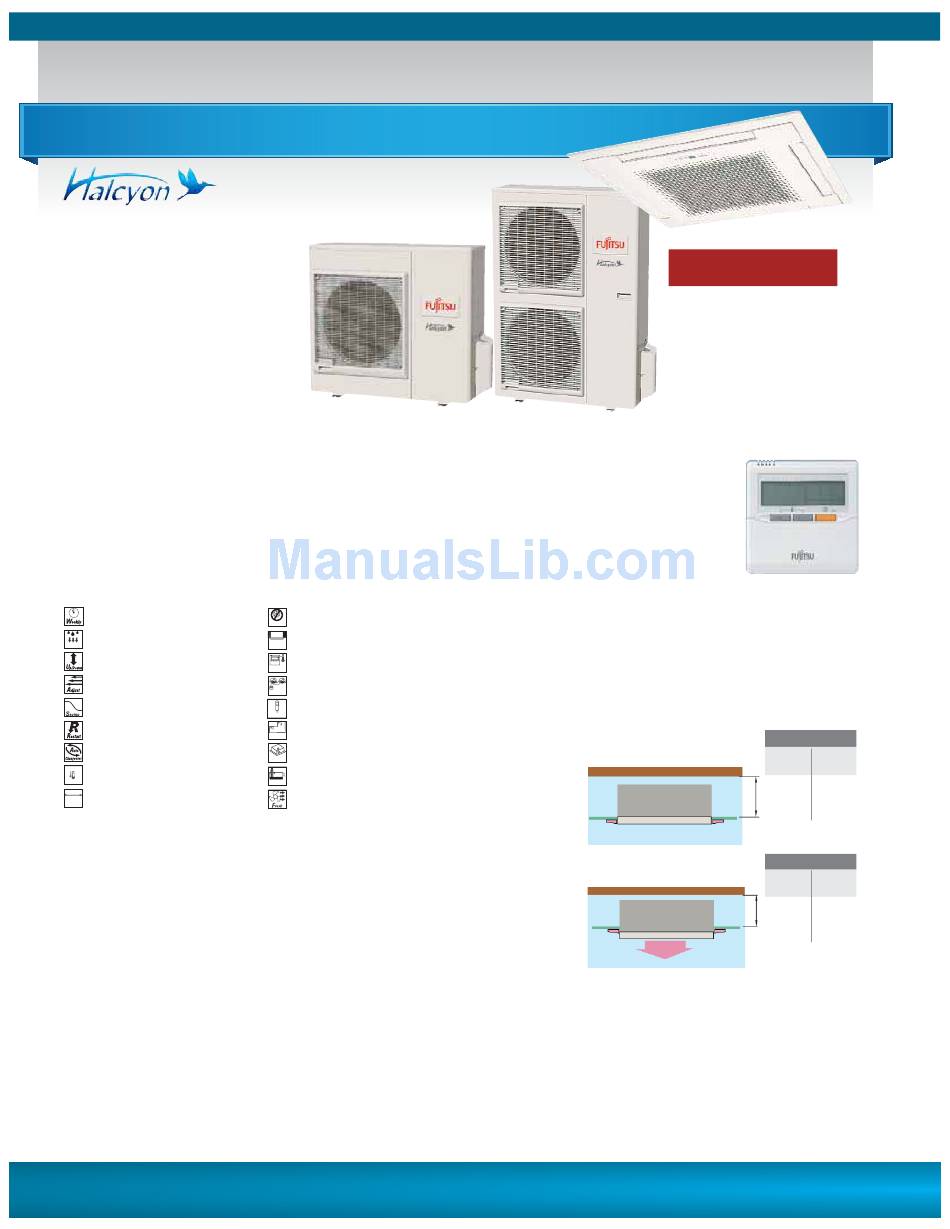

SINGLE ZONE MINI-SPLITS
Ceiling Cassette Systems
SYSTEMS 18RCLX, 24RCLX, 36RCLX, 42RCLX
Function
Up to 16-SEER, these models provide up to 30% increase in
efficiency over 13-SEER models. These models offer the
ability to send up to 38% of their capacity through two branch
ducts to adjacent rooms. Slender fit feature now offered on all
models decreases space required above the ceiling increasing
application opportunities.
Standard Features
7
Weekly Timer
6
7
Dry Mode
D
ry
6
Auto Louver: Up/ Down
7
POWERFUL
Auto Mode
7
6
7
Energy Saver
6
6
7
Auto Restart/Reset
6
POWERFUL
Auto Changeover
6
6
0°F
0°F Ambient Cooling
POWERFUL
A
mbient
165 ft
Long Piping Length
P
iping
Applications
POWERFUL
Four-way airflow, concealed flush mount design and the
ability to operate in high ceiling rooms makes these systems
POWERFUL
ideal for commercial applications such as offices, conference
rooms, restaurants, night clubs and bars in retrofit and new
construction. Long maximum combined piping lengths of 165
to 230 feet with 60 to 98 feet of height, depending on model,
allow the outdoor unit to be remotely located up to 7 stories
away and far from indoor unit. The ceiling cassettes are also
used in new construction condominiums and homes taking
advantage of their branch duct capability to feed adjacent
rooms. These heat pumps provide up to 30% additional
available heat when compared to conventional models.
*Fresh air knockout available. Fresh air fan and ductwork field supplied. See design and technical manual for details. Fujitsu fresh air intake kit available part #KHRS940-25.
28
7
7
6
6
Cold Prevention
7
C
old
Slender Fit
S
6
lender
Remote Temp. Sensor
S
ensor
Daisy Chain
16
D
aisy
Pump Down Operation
P
D
ump
own
7
High Ceiling Mode
7
C
eiling
Branch Duct Capable
B
ranch
7
Built-in Condensate Pump
P
ump
6
Fresh Air Intake*
Up to 16.0 SEER
Standard Wired Remote
Weekly timer
Set on-off time twice a day
Set different on-off time by day
Set time in 5 minute intervals
Control up to 16 indoor units
Child lock capable
Remote temperature sensor
Slender Fit
Cassette body can
be moved downward
into the room 1-3/8"
to accommodate limited
ceiling space.
Standard Depth
18RCLX
36RCLX
24RCLX
42RCLX
9-3/4"
11-7/8"
Slender Fit Depth
18RCLX
36RCLX
24RCLX
42RCLX
8-1/2"
10-1/2"
