Fujitsu AUU18RCLX Service Manual

Cassette type (60hz)
Hide thumbs Also See for AUU18RCLX:
Table of Contents

Advertisement

Quick Links

See also: Manual

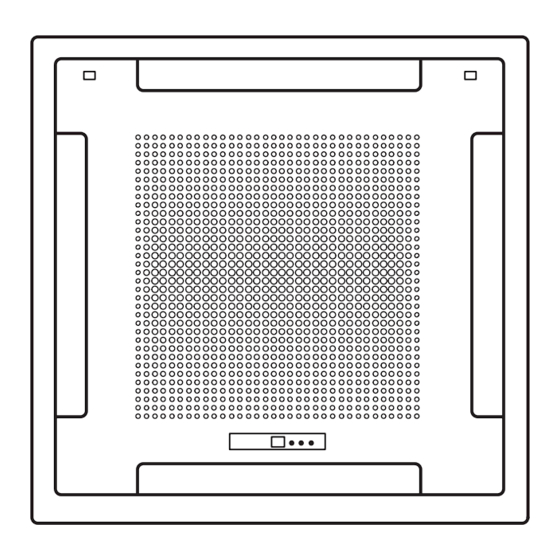

SPLIT TYPE

AIR CONDITIONER

CASSETTE
Models
Indoor unit
AUU18RCLX
AUU24RCLX
AUU36RCLX
AUU42RCLX
CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . 1
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Circuit Diagram . . . . . . . . . . . . . . . . . . . . . 9
Error Contents . . . . . . . . . . . . . . . . . . . .
Disassembly Illustration . . . . . . . . . . 23
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Standard Accessories . . . . . . . . . . . . . 42
type
(60Hz)
Outdoor unit
AOU18RLX
AOU24RLX
AOU36RLX
AOU42RLX
. . . . . 15
13
21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUU18RCLX and is the answer not in the manual?

Questions and answers

Related Manuals for Fujitsu AUU18RCLX

Summary of Contents for Fujitsu AUU18RCLX

  • Page 1: Air Conditioner

    SPLIT TYPE AIR CONDITIONER CASSETTE type (60Hz) Models Indoor unit Outdoor unit AUU18RCLX AOU18RLX AUU24RCLX AOU24RLX AUU36RCLX AOU36RLX AUU42RCLX AOU42RLX CONTENTS SPECIFICATIONS ..... . 1 DIMENSIONS .

  • Page 2: Specifications

    SPECIFICATIONS COOLING & HEATING TYPE AUU18RCLX AUU24RCLX AUU36RCLX AUU42RCLX INDOOR UNIT AOU18RLX AOU24RLX AOU36RLX AOU42RLX OUTDOOR UNIT 17,800 / 17,800 BTU/h 22,200 / 22,200 BTU/h 34,100 / 33,500 BTU/h 42,700 / 41,700 BTU/h COOLING CAPACITY 21,500 / 21,500 BTU/h 24,200 / 24,200 BTU/h...
  • Page 3 COOLING & HEATING TYPE AUU18RCLX AUU24RCLX AUU36RCLX AUU42RCLX INDOOR UNIT AOU18RLX AOU24RLX AOU36RLX AOU42RLX OUTDOOR UNIT NOISE LEVEL 42.0 dB 45.0 dB 48.0 dB 50.0 dB HIGH-SPEED 39.0 dB 43.0 dB 45.0 dB 48.0 dB INDOOR UNIT MED-SPEED 36.0 dB 38.0 dB...

  • Page 4: Dimensions

    DIMENSIONS INDOOR UNIT Models : AUU18RCLX, AUU24RCLX Unit : inch (mm) 37" (940) 32-3/4" (830) Drain inside Dia. ø32 outside Dia. ø37 11-3/4" 11-3/4" (298.5) (298.5) 12" (305.5) 9-25/32" 12" (305.5) 9-25/32" (248.5) (248.5) 2005.12.26...
  • Page 5 INDOOR UNIT Models : AUU36RCLX, AUU42RCLX Unit : inch (mm) 37" (940mm) 29-17/32" (750mm) Drain pipe(I.D.32mm) Drain pipe (I.D.32mm) 11-3/4" 11-3/4" (298.5mm) (298.5mm) 12" 9-25/32" 9-25/32" 12" (305.5mm) (248.5mm) (248.5mm) (305.5mm) 2005.12.21...
  • Page 6 OUTDOOR UNIT Models: AOU18RLX, AOU24RLX, AOU36RLX Unit : inch (mm) 1-1/4" 1/2" 3"(77) (31) (12) 13" (330) 35-1/2" (900) 15-3/4" (400) 25-5/8" (650) Air Flow 5-3/4" (147) 6-3/4" (170) 2005.12.21...
  • Page 7 OUTDOOR UNIT Model : AOU42RLX Unit : inch (mm) 1-1/4" 1/2" (31) (12) 35-1/2" (900) 3"(77) 13" (330) 15-3/4" (400) 25-5/8" (650) Air Flow 5-3/4" (147) 6-3/4" (170) 2005.12.21...

  • Page 8: Refrigerant System Diagram

    REFRIGERANT SYSTEM DIAGRAM Models : AUU18RCLX / AOU18RLX OUTDOOR UNIT INDOOR UNIT Pressure Refrigerant Pipe Check Valve 12.7mm (1/2") High Pressure Switch Charging Valve 4-way Valve Evaporator Condenser Accumulator Compressor Expansion Refrigerant Pipe Valve 6.35mm (1/4") Strainer Strainer Charging Valve...
  • Page 9 Models : AUU24RCLX / AOU24RLX AUU36RCLX / AOU36RLX INDOOR UNIT OUTDOOR UNIT Pressure Refrigerant Pipe Check Valve 15.88mm (5/8") High Pressure Switch Charging Valve 4-way Valve Evaporator Condenser Accumulator Compressor Expansion Refrigerant Pipe Valve 9.52mm (3/8") Strainer Strainer Charging Valve Models : AUU42RCLX / AOU42RLX INDOOR UNIT OUTDOOR UNIT...

  • Page 10: Circuit Diagram

    CIRCUIT DIAGRAM Models : AUU18RCLX, AUU24RCLX PIPE TEMPERATURE THERMISTOR ROOM TEMPERATURE THERMISTOR TO REMOTE CONTROL UNIT BROWN BROWN ORANGE ORANGE STEP MOTOR TERMINAL YELLOW YELLOW WHITE WHITE WHITE BLACK BLACK BLACK FLOAT SWITCH BLACK BLACK POWER SUPPLY PCB ASSY BLACK...
  • Page 11 Model : AOU18RLX, AOU24RLX OUTDOOR TEMPERATURE BLACK THERMISTOR PIPE TEMPERATURE BLUE THERMISTOR COMPRESSOR TEMPERATURE BROWN BROWN THERMISTOR DISCHARG TEMPERATURE THERMISTOR BLACK HEAT SINK TEMPERATURE THERMISTOR EMI FILTER CN21 CN22 CN23 CN26 CN25 CONNECTOR HIGH PRESSURE SWITCH CN37 W305 WHITE WHITE COMPRESSOR W304 FUSE...
  • Page 12 Model : AOU36RLX OUTDOOR TEMPERATURE PIPE TEMPERATURE THERMISTOR BLUE THERMISTOR BLACK COMPRESSOR TEMPERATURE BROWN THERMISTOR DISCHARGE TEMPERATURE BROWN THERMISTOR HEAT SINK TEMPERATURE BLACK THERMISTOR EMI FILTER CONNECTOR CN21 CN22 CN23 CN26 CN25 COMPRESSOR CN37 HIGH PRESSURE SWITCH W305 WHITE WHITE W304 FUSE SOLENOID COIL...
  • Page 13 Model : AOU42RLX OUTDOOR TEMPERATURE THERMISTOR BLUE PIPE TEMPERATURE BLACK THERMISTOR COMPRESSOR TEMPERATURE BROWN THERMISTOR DISCHARGE BROWN TEMPERATURE HEAT SINK TEMPERATURE BLACK THERMISTOR THERMISTOR EMI FILTER CN21 CN22 CN23 CN26 CN25 CONNECTOR COMPRESSOR HIGH PRESSURE SWITCH CN37 W305 WHITE WHITE W304 BLACK FUSE...

  • Page 14: Indoor Pcb Circuit Diagram

    INDOOR PCB CIRCUIT DIAGRAM CONTROLLER PCB ASSEMBLY ( MAIN PCB ) Models : AUU18RCLX AUU18RCLX : K01AL-050KHSE-C1 AUU24RCLX AUU24RCLX : K01AL-050LHSE-C1 2005.12.22...
  • Page 15 CONTROLLER PCB ASSEMBLY ( MAIN PCB ) Models : AUU36RCLX AUU36RCLX : K01AL-050MHSE-C1 AUU42RCLX AUU42RCLX : K01AL-050NHSE-C1 2005.12.22...

  • Page 16: Outdoor Pcb Circuit Diagram

    OUTDOOR PCB CIRCUIT DIAGRAM INVERTER ASSEMBLY AOU18RLX : EZ-005GHUE AOU24RLX : EZ-005FHUE Models : AOU18RLX AOU24RLX POWER SUPPLY PCB ASSY K04BA-0500HUE-P0 CONTROLLER PCB ASSY AOU18RLX : K04AW-0503HUE-C1 AOU24RLX : K04AW-0502HUE-C1 2005.12.23...
  • Page 17 Model : AOU36RLX INVERTER ASSY EZ-005HHUE AC230V 60Hz POWER SUPPLY PCB K04BA-0501HUE-P0 TERMINAL HP-T3061-3 CONTROLLER PCB ASSY K04AW-0504HUE-C1 2005.12.23...
  • Page 18 INVERTER ASSY EZ-005KHUE Model : AOU42RLX AC230V 60Hz POWER SUPPLY PCB K04BA-0502HUE-P0 CONTROLLER PCB ASSY K04AW-0505HUE-C1 2005.12.23...
  • Page 19 Models : AOU18RLX, AOU24RLX, AOU36RLX CONTROLLER PCB ASSEMBLY ( MAIN PCB ) AOU18RLX : K04AW-0503HUE-C1 AOU24RLX : K04AW-0502HUE-C1 AOU36RLX : K04AW-0504HUE-C1 600/450V x 4 2005.12.23...
  • Page 20 Model : AOU42RLX CONTROLLER PCB ASSEMBLY ( MAIN PCB ) AOU42RLX : K04AW-0505HUE-C1 600/450V x 5 2005.12.23...
  • Page 21 Models : AOU18RLX, AOU24RLX AOU36RLX, AOU42RLX POWER SUPPLY PCB ASSEMBLY AOU18RLX, 24RLX : K04BA-0500HUE-P0 AOU36RLX, 42RLX : K04BA-0501HUE-P0 TM100 AOU18RLX, AOU24RLX : W4 and W5 AOU36RLX, AOU42RLX : W1 and W2 N200500K1D7C RCH4730-021PF07 RCH4730-021PF07 TM101 VA101 C104 C112 BLACK 470V 0.033 0.015 C107...

  • Page 22: Error Contents

    ER R OR C ON TEN TS ( indoor unit ) Error code Error contents (1) Stop the air conditioner operation. (2) Press the master control button and the fan control button simultane- Outdoor unit doesn't accept the signal from ously for 2 seconds or more to start the test run.
  • Page 23 ERROR CONTENTS (outdoor unit) SPECIAL INSTALLATION 1. Make a TEST RUN in accordance with the in- stallation instruction sheet for the indoor unit. SETTING PUMP DOWN (Refrigerant collecting operation) 2. OUTDOOR UNIT LEDS When a malfunction occurs in the outdoor unit, the LED on Perform the following procedures to collect the refrigerant the circuit board lights to indicate the error.

  • Page 24: Disassembly Illustration

    DISASSEMBLY ILLUSTRATION Models : AUU18RCLX AUU24RCLX AUU36RCLX AUU42RCLX 876-2 834-2 472-1 472-2 472-4 777-2 472-3 777-1 472-5 472-5 472-5 472-5 2005.12.26...
  • Page 25 Models : AUU18RCLX AUU24RCLX 460-1 460-2 835 482 815-1 541-1 476-2 117-3 146-2 337-2 146-1 337-1 337-1 834-1 2005.12.22...
  • Page 26 Models : AUU36RCLX AUU42RCLX 460-1 460-2 815-1 541-1 476-2 146-1 117-3 337-2 146-2 337-1 337-1 834-1 2005.12.22...
  • Page 27 Models : AUU18RCLX AUU24RCLX AUU36RCLX AUU42RCLX 815-2 320-1 320-1 381-4 381-4 2005.12.26...
  • Page 28 Models : AUU18RCLX AUU24RCLX 184-1 2005.12.22...
  • Page 29 Model : AUU36RCLX 184-1 146-1 146-2 2005.12.26...
  • Page 30 Model : AUU42RCLX 184-1 2005.12.22...
  • Page 31 Models : AOU18RLX AOU24RLX AOU36RLX 2005.12.22...
  • Page 32 Models : AOU18RLX AOU24RLX AOU36RLX 17-1 18-1 2005.12.26...
  • Page 33 Models : AOU18RLX AOU24RLX AOU36RLX 2005.12.22...
  • Page 34 Models : AOU18RLX AOU24RLX AOU36RLX 33 34 2005.12.22...
  • Page 35 Model : AOU42RLX 2005.12.22...
  • Page 36 Model : AOU42RLX 2005.12.22...
  • Page 37 Model : AOU42RLX 2005.12.22...
  • Page 38 Model : AOU42RLX 2005.12.22...

  • Page 39: Parts List

    PARTS LIST INDOOR UNIT Part No. Part No. Ref. Ord. Ref. Ord. Description Description Q'ty Q'ty AUU18RCLX AUU24RCLX AUU18RCLX AUU24RCLX Control Box Assy 9368533007 9368533007 472-1 RFM (Grille)-A 9362738002 9362738002 Capacitor (Fan Motor) 9900270162 9900270162 472-2 RFM (Grille)-B 9362739009 9362739009...
  • Page 40 INDOOR UNIT Parts No. Parts No. Ref. Ord. Ref. Ord. Description Description AUU36RCLX AUU42RCLX Q'ty AUU36RCLX AUU42RCLX Q'ty Control Box Assy 9368533007 9368533007 472-2 Grille Reinforcement-T (B) 9362739009 9362739009 Capacitor (Fan Motor) 9900270162 9900270162 472-3 Grille Reinforcement-T (C) 9362740005 9362740005 Decoration Plate 9362787000 9362787000...
  • Page 41 OUTDOOR UNIT Part No. Ref. Ord. Description Q'ty AOU18RLX AOU24RLX AOU36RLX Top Panel Sub Assy 9374417025 9374417025 9374417025 Front Panel 9374094066 9374094066 9374094066 Fan Guard 9374330010 9374330010 9374330010 Grip Side 9374173013 9374173013 9374173013 Service Panel Sub Assy 9374415038 9374415038 9374415038 Right Panel Sub Assy 9374416073 9374416073...
  • Page 42 OUTDOOR UNIT Parts No. Ref. Ord. Description Q'ty AOU42RLX Top Panel Sub Assy 9374417025 Front Panel X 9374094028 Fan Guard 9374330010 Grip Side 9374173013 Service Panel Sub Assy 9374415014 Right Panel Sub Assy 9374416080 Valve Cover 9374174010 Propeller Fan Assy 9366378020 Motor DC Brushless 9602114016...

  • Page 43: Standard Accessories

    STANDARD ACCESSORIES INDOOR UNIT ACCESSORIES Name and Shape Q’ty Application Coupler heat For indoor side pipe joint insulation Tapping Screw For installing the remote (flush heads) controller Special nut A For installing indoor unit (large flange) Special nut B For installing indoor unit (small flange) Template For ceiling hole cutting...

  • Page 44: Connection Pipe Requirement

    WARNING For the air conditioner to operate satisfactorily. install it as outlined in this installation instruction sheet. Connect the indoor unit and outdoor unit with the room air conditioner piping and cords available standards parts. This installation instruction sheet describes the correct connections using the installation set available from our standard parts. Installation work must be performed in accordance with national wiring standards by authorized personnel only.
  • Page 45 0512G2977...
