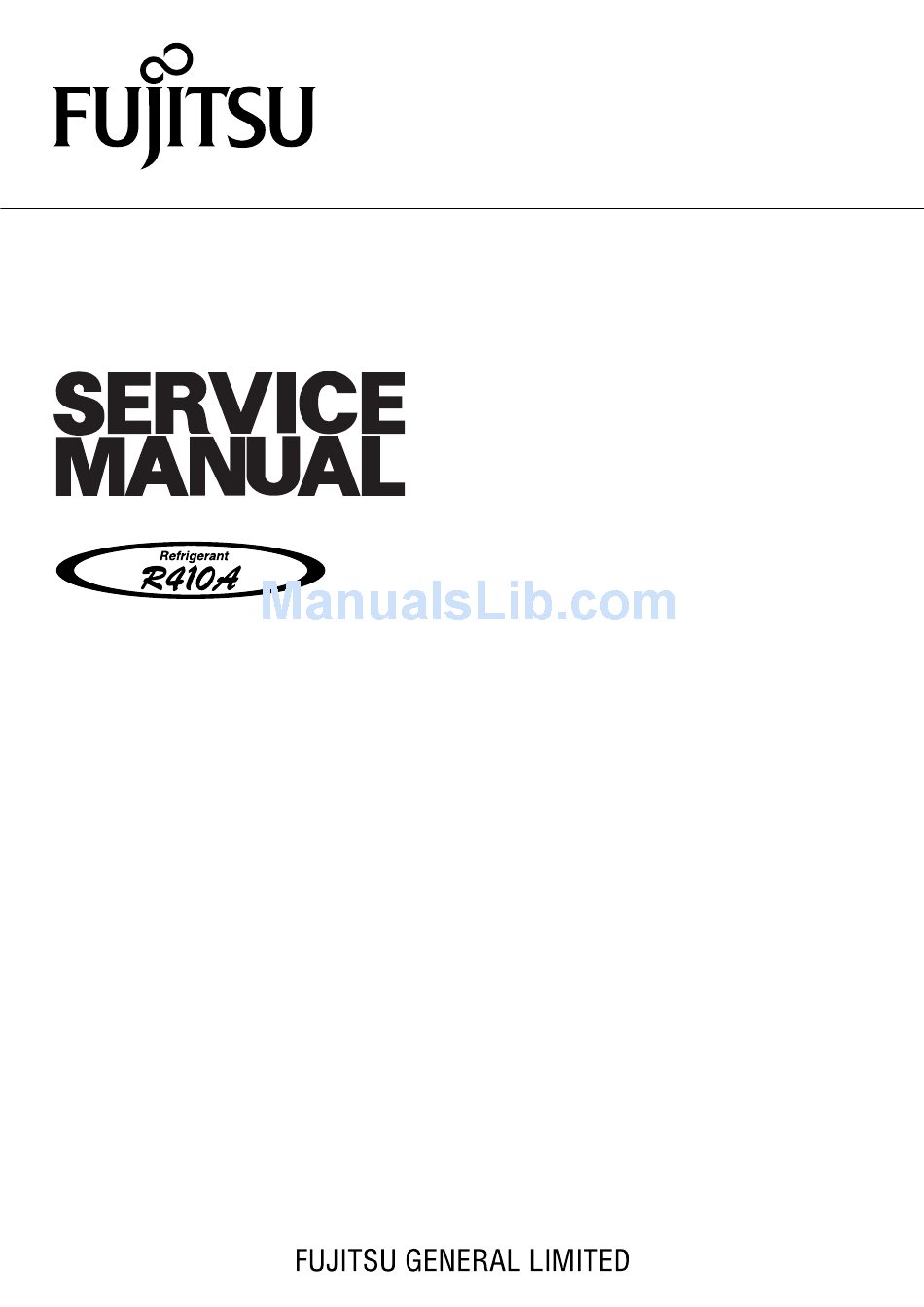

Fujitsu ASU15RLS2 Service Manual

Split type room air conditioner wall mounted type.
Hide thumbs

Advertisement

SPLIT TYPE
ROOM AIR CONDITIONER

WALL MOUNTED TYPE

Indoor unit

ASU15RLS2
CONTENTS
SPECIFICATIONS. . . . . . . . . . . . . . . . . . .
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . .
ERROR DETECTION . . . . . . . . . . . . . . .
PARTS (INDOOR UNIT) . . . . . . . . . . . . .
PARTS (OUTDOOR UNIT) . . . . . . . . . . .
ACCESSORIES . . . . . . . . . . . . . . . . . . .
Outdoor unit
AOU15RLS2H
1
2
3
4
5
9
13
15
20
23

Advertisement

   Related Manuals for Fujitsu ASU15RLS2

   Summary of Contents for Fujitsu ASU15RLS2

  • Page 1: Table Of Contents

    ROOM AIR CONDITIONER WALL MOUNTED TYPE Indoor unit Outdoor unit ASU15RLS2 AOU15RLS2H CONTENTS SPECIFICATIONS....DIMENSIONS ..... .
  • Page 2: Specifications

    SPECIFICATIONS ELECTRICAL DATA NOISE LEVEL High TYPE Cool & heat inverter 45 dB INDOOR UNIT Medium ASU15RLS2 40 dB INDOOR UNIT Cooling OUTDOOR UNIT AOU15RLS2H 33 dB COOLING CAPACITY Quiet 14,500 Btu/h 25 dB High 45 dB HEATING CAPACITY 18,000 Btu/h...
  • Page 3: Dimensions

    DIMENSIONS unit : inch (mm) INDOOR UNIT 34-1/4 (870) 7-9/32 (185) Drain pipe diameter 16.2 mm Liquid pipe diameter : 1/4 inch (6.35 mm) Gas pipe diameter : 1/2 inch (12.70 mm) OUTDOOR UNIT 11-13/32 (290) 31-3/32 (790) 21-1/4 (540) 2012.01.31...
  • Page 4: Refrigerant System Diagram

    REFRIGERANT SYSTEM DIAGRAM Heat exchanger (indoor unit) Muffler 2-Way valve 3-Way valve Compressor Muffler Refrigerant direction Strainer Cooling Heating 4-Way valve Refrigerant pipe diameter Expansion valve Liquid : 1/4" (6.35 mm) Gas : 1/2" (12.7 mm) Heat exchanger (outdoor unit) Strainer 2012.01.31...
  • Page 5: Circuit Diagram

    CIRCUIT DIAGRAM FUSE 250V INDOOR UNIT OUTDOOR UNIT HEATER WHITE WHITE WHITE BLACK BLACK BLACK CN201 THERMOSTAT WHITE ORANGE CN42 CN40 CN200 CN400 (131 WHITE YELLOW LOUVER CN112 WHITE PINK 1 2 3 4 5 1 2 3 4 5 6 7 8 9 1 2 3 4 I NDICATOR PCB WHITE...
  • Page 6: Indoor Pcb Circuit Diagram

    EARTH TERMINAL INDOOR PCB CIRCUIT DIAGRAM GREEN OUTDOOR UNIT THERMAL EMI FILTER FUSE 102 ESD-R-19 CONTROL UNIT RTCB-19-10-10 EZ-01107HSE WHITE TERMINAL BLACK BLACK THERMISTOR ( PIPE TEMP. ) BLACK 2013485-1 B04B-PL I RK-1 BLACK THERMISTOR ( ROOM TEMP. ) BLACK FAN MOTOR BLACK WHITE...
  • Page 7 D1FL20U 2013485-1 <SS11V> 0.6A - 10mH 340V S1NBC60 100/ 100k CONTROLLER PCB ASSEMBLY TO TERMINAL <1/10W> 0.01 3.15A <F> ( MAIN PCB ) 250V 470V <ERZ10V> <LE> 0.01 K10CH-110DHSE-C1 D1FL20U <F> EE16 5V-2 330/ BLm18 ST03D-140 RD8.2FM D1FL20U <BD102> 420V 470/ I C8 TNY277...
  • Page 8 INDOOR UNIT INDICATOR PCB ASSEMBLY K10CX-1000HSE-D0 CN201 8 - JB / PL I D204 L=250 #26 / 1061 UDZS6.2B D201 SLR-343ECT <GREEN> D205 UDZS6.2B D202 SL I-343DCT <ORANGE> SW201 D206 KSHC611BT UDZS6.2B D203 SLR-343ECT <GREEN> R202 <1/4W> C203 C204 <F> I C201 GP1UM271R R201...
  • Page 9 TO CONTROLLER PCB ASSEMBLY 390V D303 CN301 T301 JM303 SJH20-09WSF SW1614-1 RF101L2S R301 C302 390k 1000p R309 C306 <1/4W> <E> 100/ R302 <1/10W> <1/4W> D301 UF4007 + C301 D302 RF101L2S 450V R306 I C301 1.0k LNK603 R303 R304 C311 <1/10W> 100/ BP_M C305...
  • Page 10: Outdoor Pcb Circuit Diagram

    OUTDOOR PCB CIRCUIT DIAGRAM INVERTER ASSEMBLY EZ-01218HUE EARTH UL1015 AWG14 EMI FILTER WHITE ZCAT2132-1130 UL1015 POWER SOURCE W100 250V AWG14 AC208 - 230V BLACK 60Hz UL1015 UL1015 AWG14 TM101 AWG20 ORANGE UL1015 AWG20 F100 WHITE I NDOOR UNIT UL1015 UL1015 AWG20 250V AWG14...
  • Page 11 CN200 1-1747052-2 TP00351-31 x 2 FH200 FH201 1SS355 DC VOLT I N R601 F201 OUTDOOR UNIT 1.0k R603 250V 3.15A I C5 <1/10W> 150k 2200p 220/ CT600 7818 MAIN PCB <1/10W> <2W> <E> D1FL20U CT-1B C211 P-AN-CT TM601 C601 560k K07BS-1201HUE-C1 450V 0.1 <F>...
  • Page 12 OUTDOOR UNIT TRANSISTOR PCB ( I P M ) K10AY-100AHUE-TR0 R360 C209 - C211 C221 C222 C332 C302 0.1 <F> 100/ L300 <1/2W> <F> <F> <F> BL02Rn1 TM303 TM101 D303, D302, D301 D307 ORANGE US1J x 3 RD24FM TM102 TM304 BROWN BLACK D100...
  • Page 13: Filter Pcb

    OUTDOOR UNIT CAPACITOR PCB K05DG-0700HUD-P0 WHITE YELLOW C201 C202 660/ 660/ 450V 450V BLUE VIOLET POWER_G OUTDOOR UNIT FILTER PCB R100 CT OUT K10CI-1100HUE-FL0 ZPR0RCH400 BLACK GRAY R101 ZPR0RCH400 H-0017-2 x 2 W100 BLACK L101 K101 L100 L102 250V DW12D1 RCH3818-022PF07 RCH3818-022PF07 N200500K1D7C...
  • Page 14: Error Detection

    Indoor unit display ER R OR D ETEC TION INDOOR UNIT REMOTE CONTROL If you use a wireless remote control, the lamp on the photo detector unit will output error codes by way of blinking patterns. If you use a wired remote control, error codes OPERATION indicator lamp (green) will appear on the remote control display.
  • Page 15 OUTDOOR UNIT ERROR Discharge temperature abnormal 0.5 second on / 0.5 second off IPM overcurrent protection 0.1 second on / 0.1 second off Thermistor abnormal CT abnormal 2.0 second on / 2.0 second off 0.1 second on / 2.0 second off Compressor location abnormal 5.0 second on / 5.0 second off Fan abnormal...
  • Page 16: Parts (indoor Unit)

    PARTS INDOOR UNIT Ref. Description Part number Bracket Panel 9318913002 Wire Cover 9318911008 Wire Shield 9318919004 Under Cover 9318879001 Louver (Upper) 9318880007 Louver (Lower) 9318881004 Air Clean Filter Assy 9317250009 Remote Control 9319634012 Remote Control Holder 9318912005 2012.12.25...

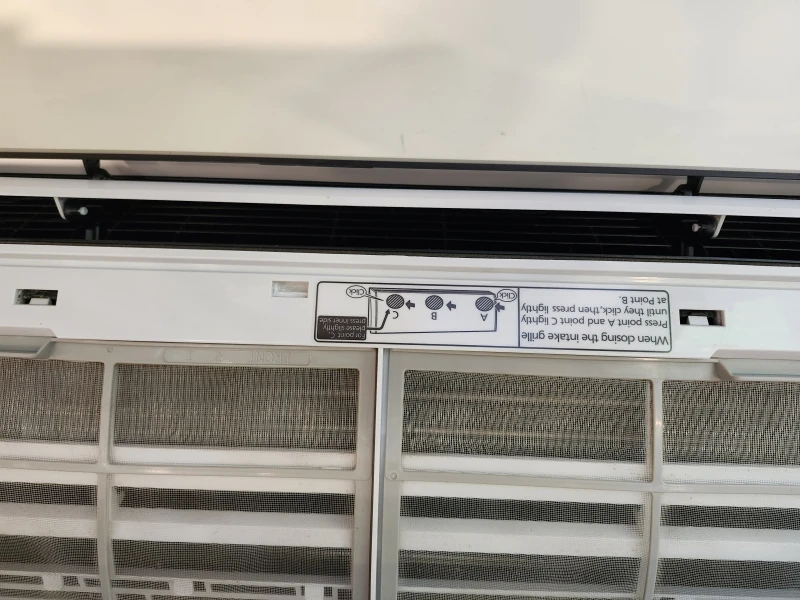

  • Page 17 INDOOR UNIT Front panel Ref. Description Part number Front Panel Total Assy 9319348209 Air Filter 9318883008 Intake Grille Assy 9319351186 Front Panel 9318876000 Front Panel Cover T 9318909005 Display Plate Holder L 9318894004 Display Plate Holder R 9318895001 Display Plate R 9318893007 Arm Cover 9318900002...
  • Page 18 INDOOR UNIT Evaporator Ref. Description Part number Evaporator Total Assy 9319327013 Joint Pipe Assy 9319322018 Joint Pipe Holder 9318901009 Base 9318874006 Filter Guide 9318887006 Evaporator Holder L 9318875003 Air Seal 9319295008 2012.12.25...

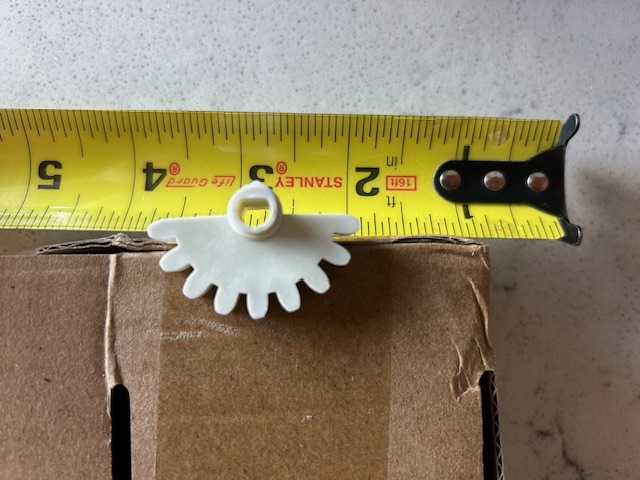

  • Page 19 Ref. Description Part number Cover Shield A 9318916003 Control Box 9318882018 43 Box Shield Assy 9319344003 Main PCB 9708713229 Terminal 9900638016 Earth Terminal 9318918007 47 Room Thermistor Holder 9319068008 48 Gear Cover 9318902006 49 Step Motor 9900384166 50 Gear B 9319294001 51 Panel Gear 9319293004...
  • Page 20 INDOOR UNIT Casing assy Ref. Description Part number Fan Motor 9602947010 Crossflow Fan Assy 9319361000 Bearing C Assy 9306628017 Casing Assy 9319342009 Casing 9318873009 Motor Cover 9316601000 Motor Cover 9318888003 Fan Guard 9318924008 Casing Cover F 9318923001 Casing Cover B 9318920000 Pipe Bracket 9318889000...
  • Page 21: Parts (outdoor Unit)

    PARTS OUTDOOR UNIT Ref. Description Part number Thermistor Holder 9313954031 Protective Net 9332492002 Top Panel Assy 9318464023 Front Panel Assy 9318463033 Cabinet Left Assy 9318461015 Cabinet Right Assy 9316044050 Switch Cover 9317692021 Base Assy 9316885059 Fan Motor 9602724000 Propeller Fan 9313808013 Emblem 9317903011...
  • Page 22 OUTDOOR UNIT Ref. Description Part number Heater Unit Assy 9900616014 Heater Holder A 9318631005 Heater Holder B 9318651003 Condenser Total Assy 9317089104 Compressor Assy 9318334005 2-way Valve Assy 9317171014 3-way Valve Sub Assy 9317109062 4-way Valve Assy 9318457018 Solenoid 9970110023 Pulse Motor Valve Assy 9315587022 Expansion Valve Coil...
  • Page 23 OUTDOOR UNIT Ref. Description Part number Main PCB 9708511283 Transistor PCB 9708646077 Filter PCB 9708764030 Capacitor PCB 9708514017 ACTPM 9707592016 Heatsink 9318614015 Choke Coil 9900223014 Terminal 6P 9900016081 Outdoor Thermistor 9900544041 Thermistor Assy 9900648008 2012.12.25...
  • Page 24: Accessories

    ACCESSORIES INDOOR UNIT Name and Shape Part number Bracket panel 9318913002 Remote control 9319634012 Remote control holder 9318912005 Battery (penlight) 0600185077 Cloth tape 9308117007 Tapping screw (big) 4 x 25) 0700076046 Tapping screw (small) 3 x 12) 0700019036 Air cleaning filter (ion deodorant) 9311925088 Air cleaning filter...
  • Page 25 1212G4151...
