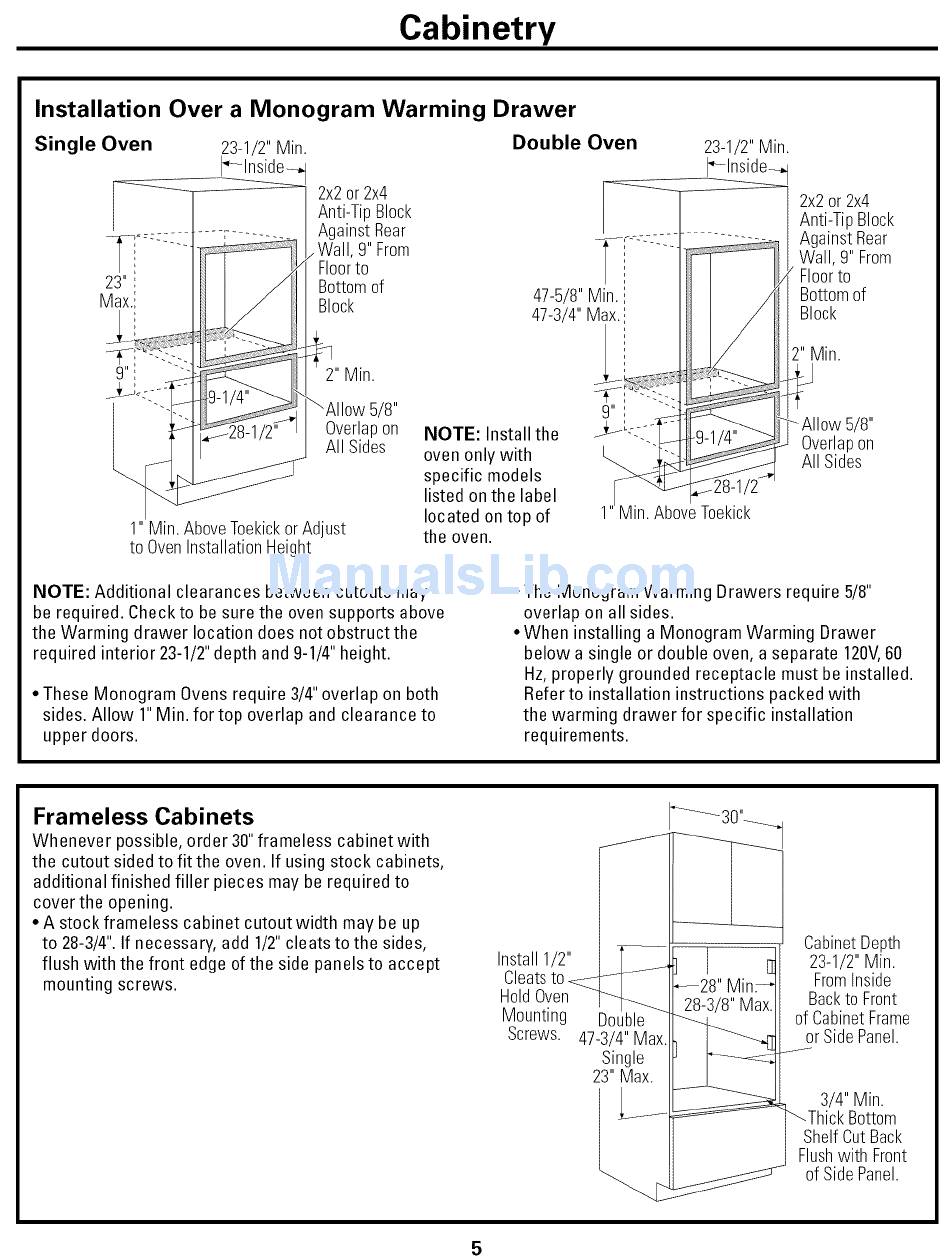

Cabinetry
Installation Over a Monogram Warming Drawer
Single Oven
2x2 or 2x4
Anti-Tip Block
Against Rear
,Wall, 9" From
Floorto
Bottom of
Block
_AIIow 5/8"
Overlap on
All Sides
Double Oven
1" Min. Above Toekick or Adjust
to Oven Installation Height
NOTE: Install the
oven only with
specific models
listed on the label
located on top of
the oven.
23-1/2" Min.
2x2 or 2x4
Anti-Tip Block
Against Rear
Wall, 9" From
Floorto
Bottom of
Block
,,
5/8"
Overlapon
L,,,,, All Sides
Above Toekick
NOTE: Additional clearances between cutouts may
be required. Check to be sure the oven supports above
the Warming drawer location does not obstruct the
required interior 23-1/2" depth and 9-1/4" height.
• These Monogram Ovens require 3/4" overlap on both
sides. Allow 1" Min. for top overlap and clearance to
upper doors.
• The Monogram Warming Drawers require 5/8"
overlap on all sides.
• When installing a Monogram Warming Drawer
below a single or double oven, a separate 120V,60
Hz, properly grounded receptacle must be installed.
Refer to installation instructions packed with
the warming drawer for specific installation
requirements.
Frameless Cabinets
Whenever possible, order 30" frameless cabinet with
the cutout sided to fit the oven. If using stock cabinets,
additional finished filler pieces may be required to
cover the opening.
• A stock frameless cabinet cutout width may be up
to 28-3/4". If necessary, add 1/2" cleats to the sides,
flush with the front edge of the side panels to accept
mounting screws.
Install 1/2"
Cleats to
Hold
Mounting
Screws.
Double
47-3/4" Max
Single
23" Max.
Cabinet Depth
23-1/2" Min.
From Inside
Back to Front
of Cabinet Frame
or Side Panel.
3/4" Min.
_Thick Bottom
Shelf Cut Back
Flushwith Front
of Side Panel.
5
