Installation Instructions

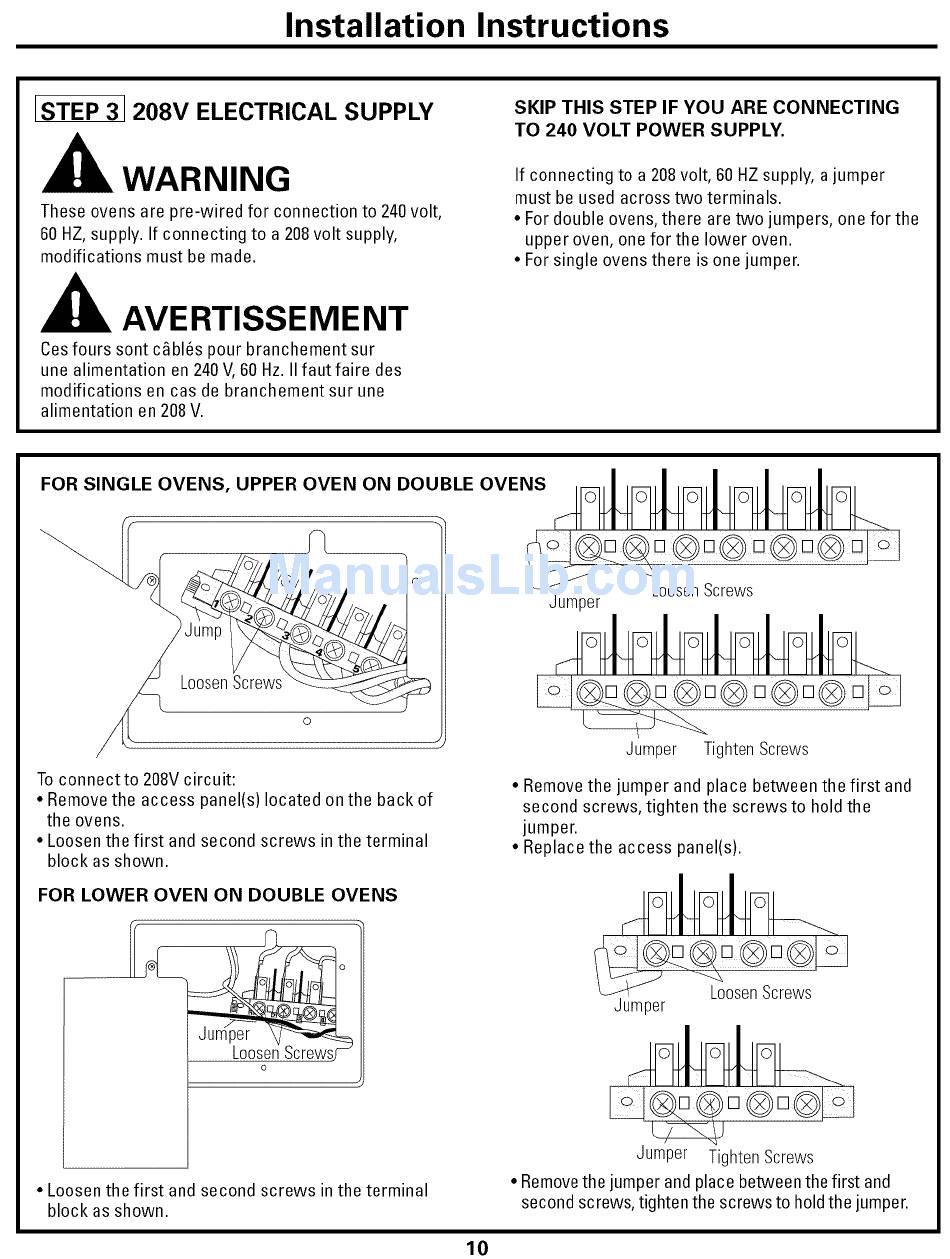

[STEP 31 208V ELECTRICAL SUPPLY
WARNING
These ovens are pre-wired for connection to 240 volt,
60 HZ, supply. If connecting to a 208 volt supply,
modifications must be made.
AVERTISSEMENT
Oes fours sont c_bl_s pour branchement sur
une alimentation en 240 V, 60 Hz. II faut faire des
modifications en cas de branchement sur une
alimentation en 208 V.
SKIP THIS STEP IF YOU ARE CONNECTING
TO 240 VOLT POWER SUPPLY.
If connecting to a 208 volt, 60 HZ supply, a jumper
must be used across two terminals.
• For double ovens, there are two jumpers, one for the
upper oven, one for the lower oven.
• For single ovens there is one jumper.
To connectto 208V circuit:
• Remove the access panel(s) located on the back of
the ovens.
• Loosen the first and second screws in the terminal
block as shown.
FOR LOWER OVEN ON DOUBLE OVENS
o
Loosen Screwsf
o
• Remove the jumper and place between the first and
second screws, tighten the screws to hold the
jumper.
• Replace the access panel(s).
Jumper
• Loosen the first and second screws in the terminal
block as shown.
Jumper Tighten Screws
• Remove the jumper and place between the first and
second screws, tighten the screws to hold the jumper.
10
