Dual power high resolution vandal proof weather resistant 3-axis ir dome camera

Advertisement

Quick Links

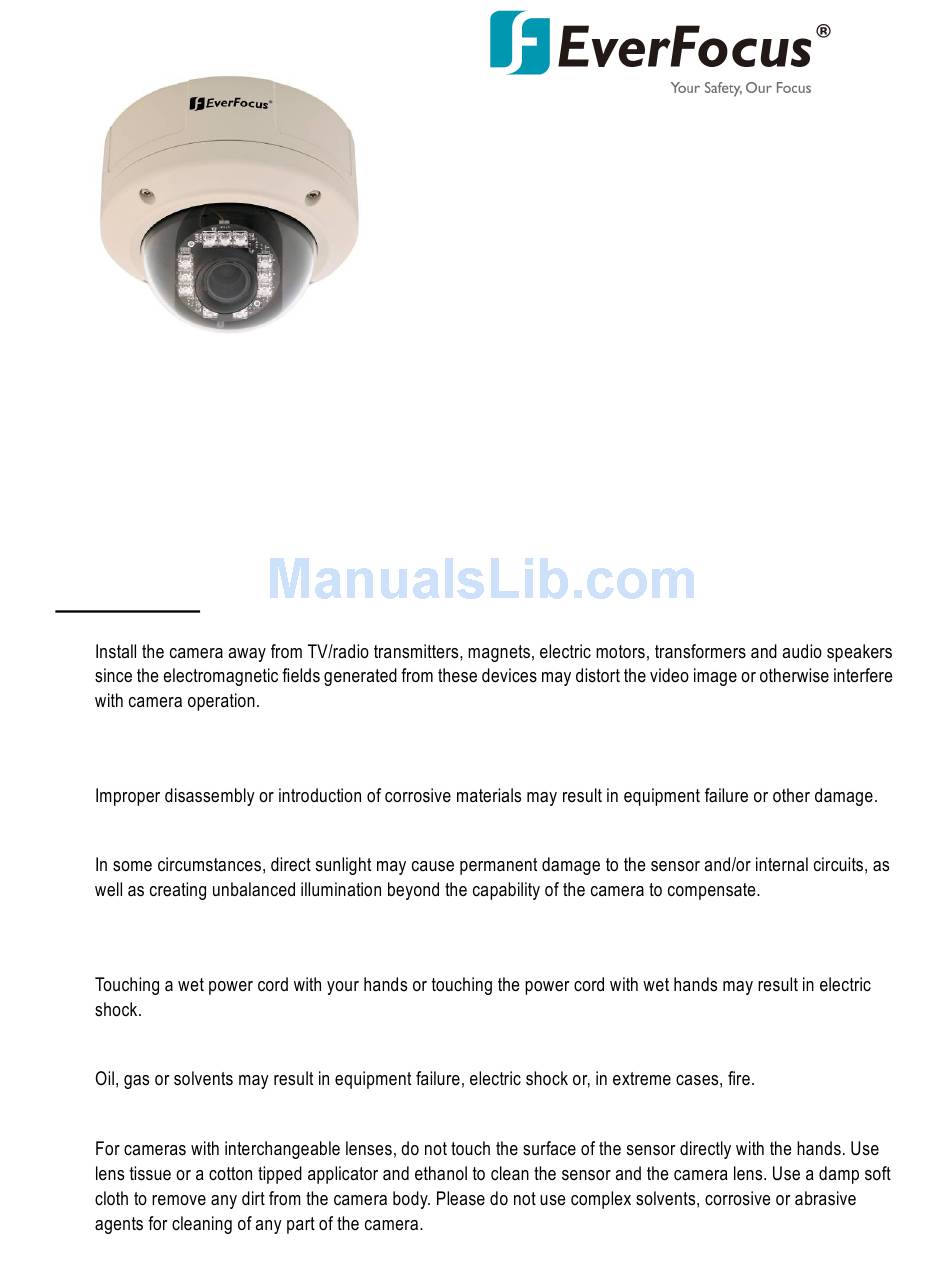

Please read this manual first for correct installation and operation. This manual should be retained for
future reference. The information in this manual was current when published. The manufacturer reserves
the right to revise and improve its products. All specifications are therefore subject to change without
notice.
PRECAUTIONS
1.
Do not install the camera near electric or magnetic fields.
2.
Never disassemble the camera beyond the recommendations in this manual nor introduce materials
other than those recommended herein.
3.
Try to avoid facing the camera toward the sun.
4.
Keep the power cord away from water and other liquids and never touch the power cord with wet
hands.
5.
Never install the camera in areas exposed to oil, gas or solvents.
6.
Cleaning
Dual Power High Resolution Vandal Proof
Weather Resistant 3-Axis IR Dome Camera
EVERFOCUS

Operation Instructions

EHD363
Model No.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EHD363 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EverFocus EHD363

  • Page 1: Operation Instructions

    Dual Power High Resolution Vandal Proof Weather Resistant 3-Axis IR Dome Camera Operation Instructions EHD363 Model No. Please read this manual first for correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products.
  • Page 2 REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. OVERVIEW The EHD363 is an outdoor, vandal resistant 3-axis IR dome camera which utilizes a Sony 1/3” 960H Exview HAD CCD Sensor and enhanced Effio-E DSP to provide high resolution 700TVL color video for security surveillance applications. Advanced functions including Digital WDR/ATR (Adaptive Tone Reproduction), 2D-NR (2D Noise Reduction) and Anti CR (Anti Color Rolling) insure optimum image quality under low or unbalanced lighting conditions.
  • Page 3: Package Contents

    Weather resistant, IP66 rated Dual power: 12VDC/24VAC PACKAGE CONTENTS Camera Unit x 1 Mounting kit includes: -Screws x 4 -Security wrench for housing screws x 1 -Expanding Anchors x 4 -Washers x 4 Operation Instructions (this document) x 1 Weatherproof bushing x 1 Power cable x 1 Video cable x 1 Power adapter pigtail (for NTSC model only) x 1...
  • Page 4 Operating Temperature -10°C~50°C / 14°F~122°F Dimensions (O.D. x H) 142mm x 115.5mm / 5.6” x 4.55” Weight 979 g / 2.16 lbs Certifications CE / FCC DIMENSIONS Dimensions Front View Bottom View Bottom View A. Lens E. Mounting holes B. IR-LED F.
  • Page 5: Installation Instructions

    INSTALLATION INSTRUCTIONS Drill the Holes 1. Locate the desired mounting location; position housing with camera pointed generally in the desired direction and mark location. 2. Use template to fix hole locations. Drill 4 holes for mounting screws (or anchors and insert plastic anchors into holes after drilling as required).
  • Page 6 5. Disconnect the power and video wire from the camera board end of the wire (1x 4 pin white connector) and the 2 power wires from the power board attached to the base plate (1 x 2 pin connector with blue marking and 1 x 2 pin connector with white color).
  • Page 7 Loosen the screws which lock the tilt mechanism. Rotate the pan and tilt mechanisms to point the camera in the desired direction. Rotate the camera module on its axis if necessary to align the image ‘upright’. Loosen the lens adjusting screws and adjust the lens to obtain the desired field of view and focus.
  • Page 8: Everfocus Electronics Corp

    EverFocus USA - California: EverFocus USA - New York: 1801 Highland Avenue, Unit A, Duarte, CA 91010, 415 Oser Avenue, Unit S, Hauppauge, NY 11788, USA TEL: +1 631 436 5070 TEL: +1 626 844 8888...
